Ceiling Mount Projector Enclosure
Designed for fixed projection projects with ceiling-mounted installation. A professional ceiling-mounted projector enclosure protects your equipment in challenging environments. Whether you need an outdoor projector enclosure, a waterproof projector enclosure, or a custom outdoor projector housing for indoor commercial spaces, we engineer the structure to match your ceiling frame, heat load, and projector model.
Fast response within 24 hours. Factory direct engineering support.
Engineering Challenges in Ceiling-Mounted Projection
Outdoor projector failures are often related to heat, humidity, dust, and poor enclosure design. Standard mounts cannot solve these site-specific issues.

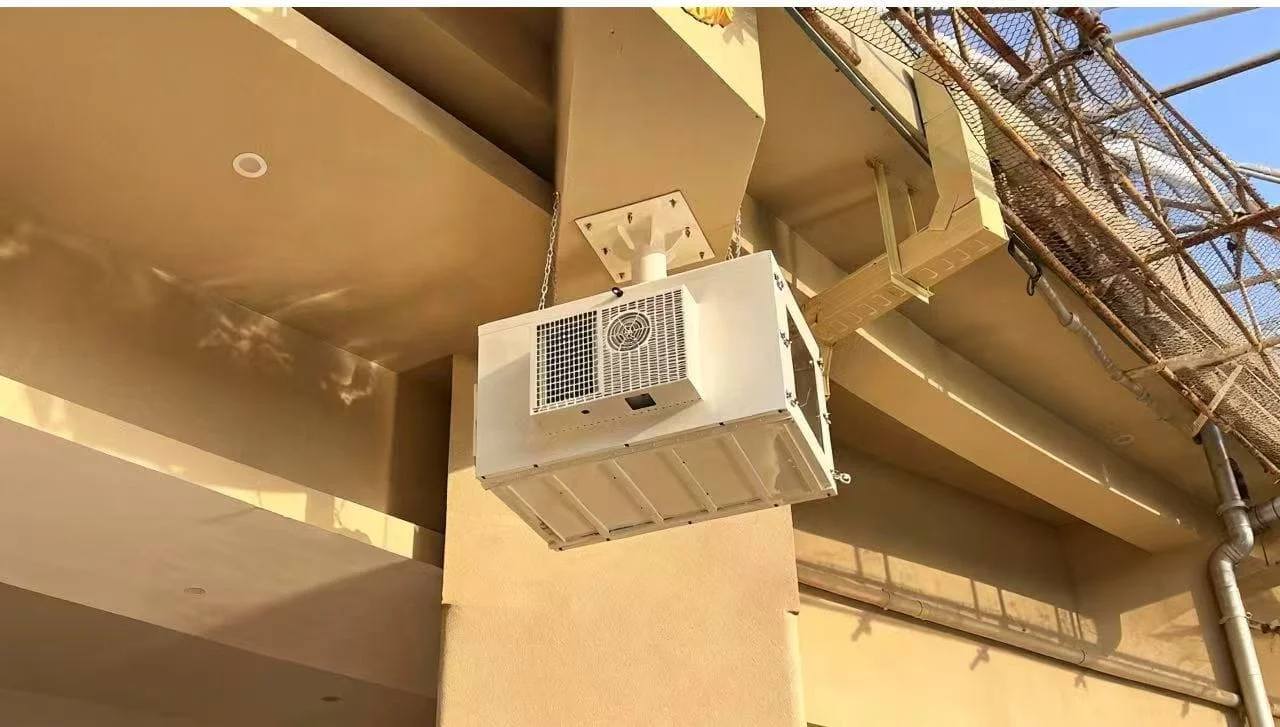

Ceiling Space Limits
Constraint: Truss or ceiling frames restrict installation space.
Solution: Enclosure dimensions and bracket designs are customized according to your specific ceiling structure drawing.

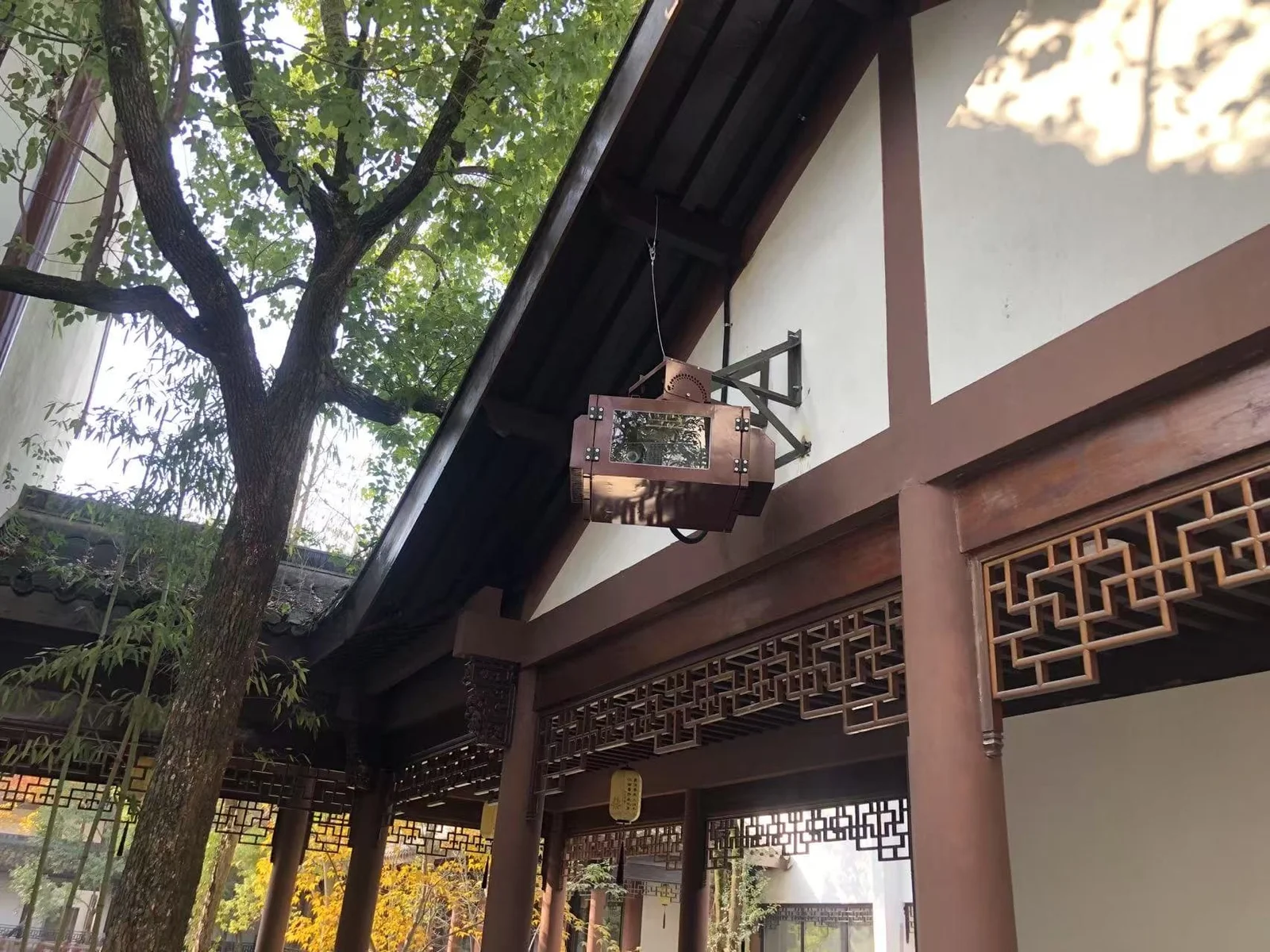

Lens Alignment
Constraint: Misalignment requires on-site drilling.
Solution: Lens position and projection window are aligned based on the exact projector model during the design phase.
Overhead Heat Buildup
Constraint: Hot air rises, causing high-lumen projectors to overheat.
Solution: Configurable fresh air or internal circulation cooling starts automatically when temperatures rise.
Condensation & Fog
Constraint: Temperature drops cause fog on the projection window.
Solution: Heating modules and internal blowing devices reduce frost and fog, ensuring clear projection.
Dust & Insects
Constraint: Semi-open spaces expose optics to dust and bugs.
Solution: Sealed structures with F6 medium-efficiency air filters provide dustproof and anti-mosquito protection.
Mounting Hole Mismatch
Constraint: Standard boxes don't fit custom steel beams.
Solution: Mounting holes are reviewed and cut according to your ceiling frame or support structure.

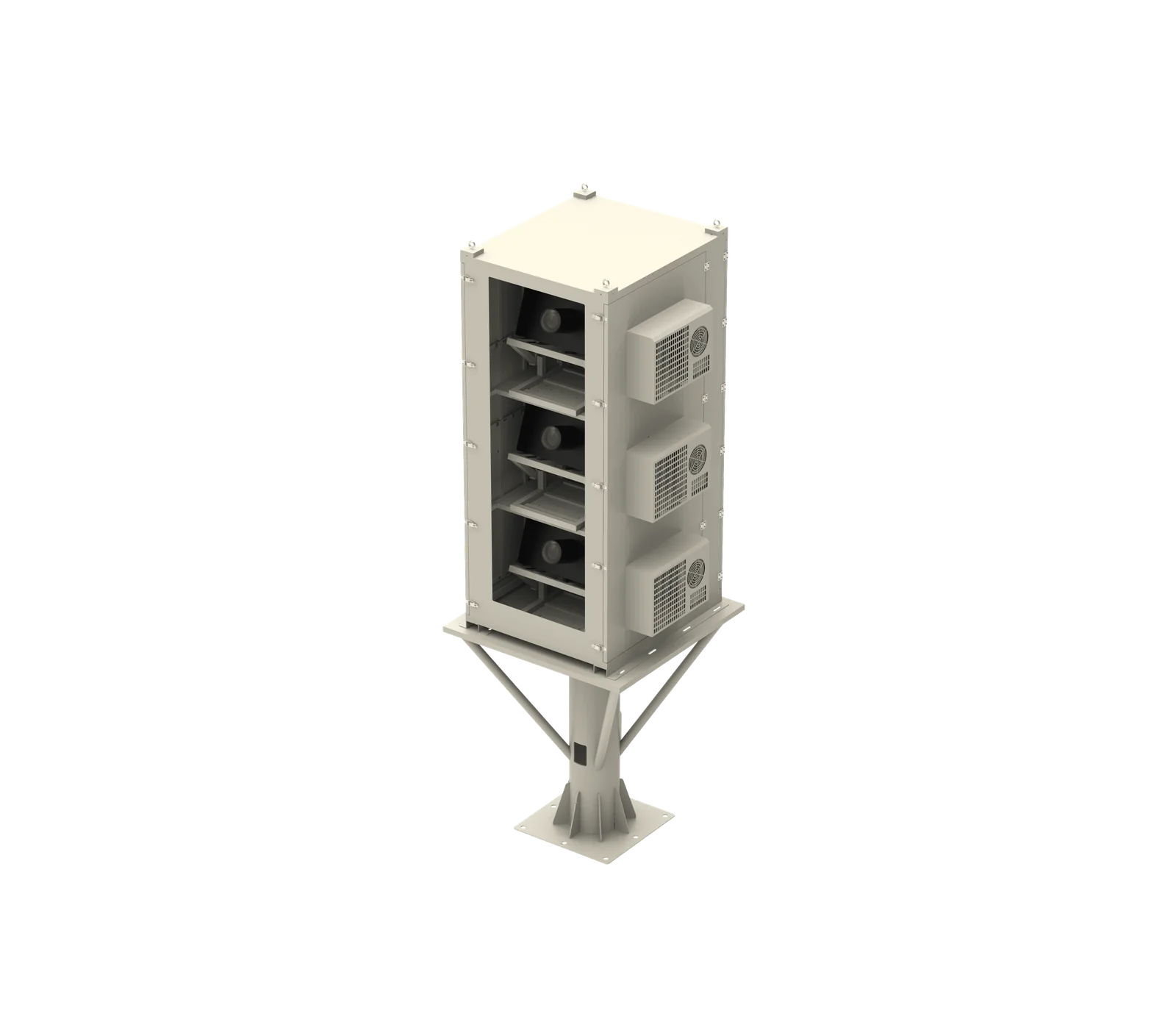

Cable Routing
Constraint: Wiring directions vary by site tray layout.
Solution: Cable entry direction is customized to match your ceiling wiring, preventing water ingress along cables.

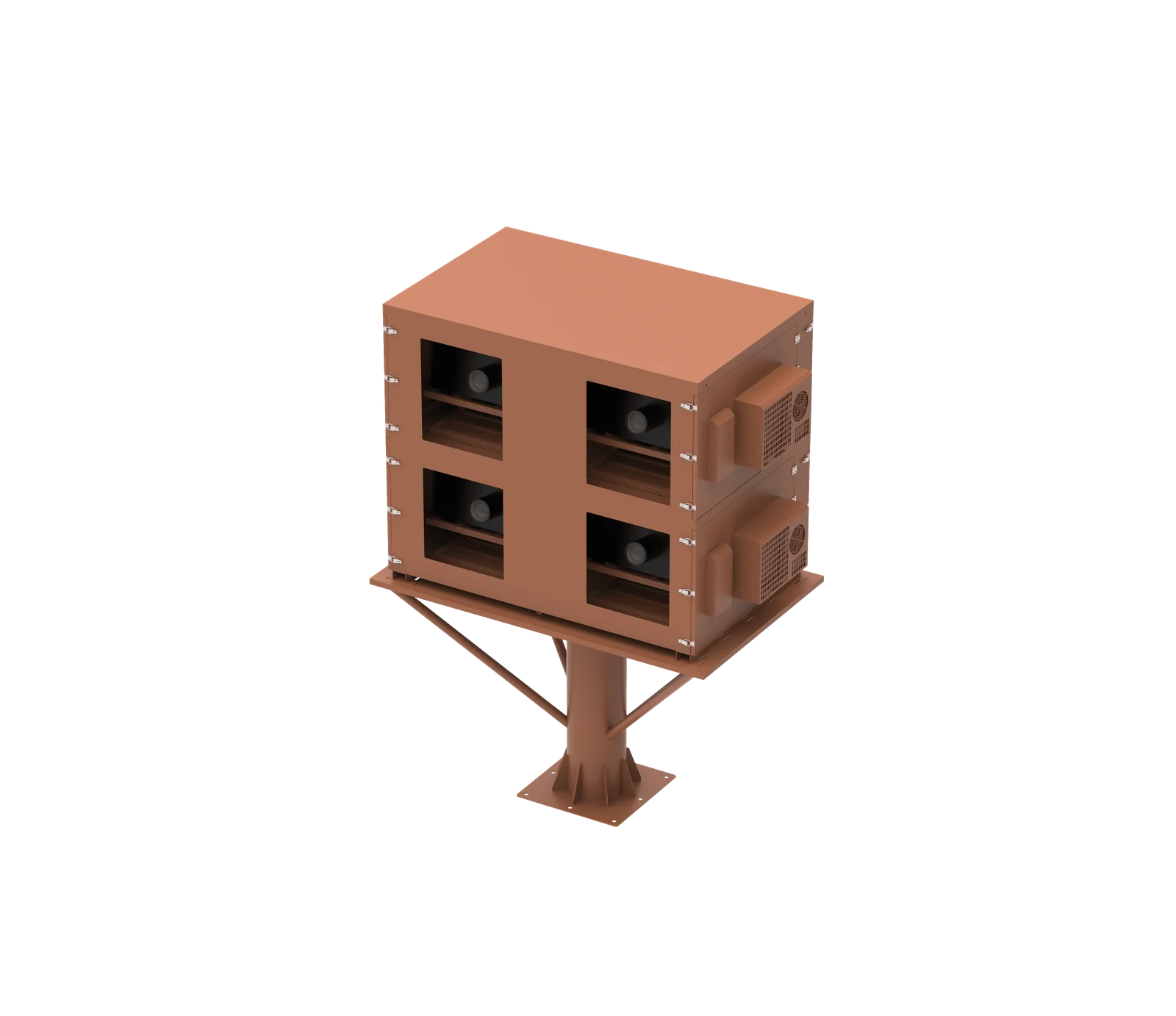

Maintenance Access
Constraint: Hard to open doors when mounted high up.
Solution: Maintenance door direction and service clearance are planned based on site photos and installation method.
What is a Ceiling Mount Projector Enclosure?
A Ceiling Mount Projector Enclosure is a heavy-duty protective cabinet designed specifically for overhead installations. Unlike a simple rain cover or standard projector mount, it provides comprehensive protection for high-value projectors mounted on ceiling frames, trusses, steel beams, or outdoor canopies. It integrates waterproof sealing, structural mounting adaptability, and active climate control.

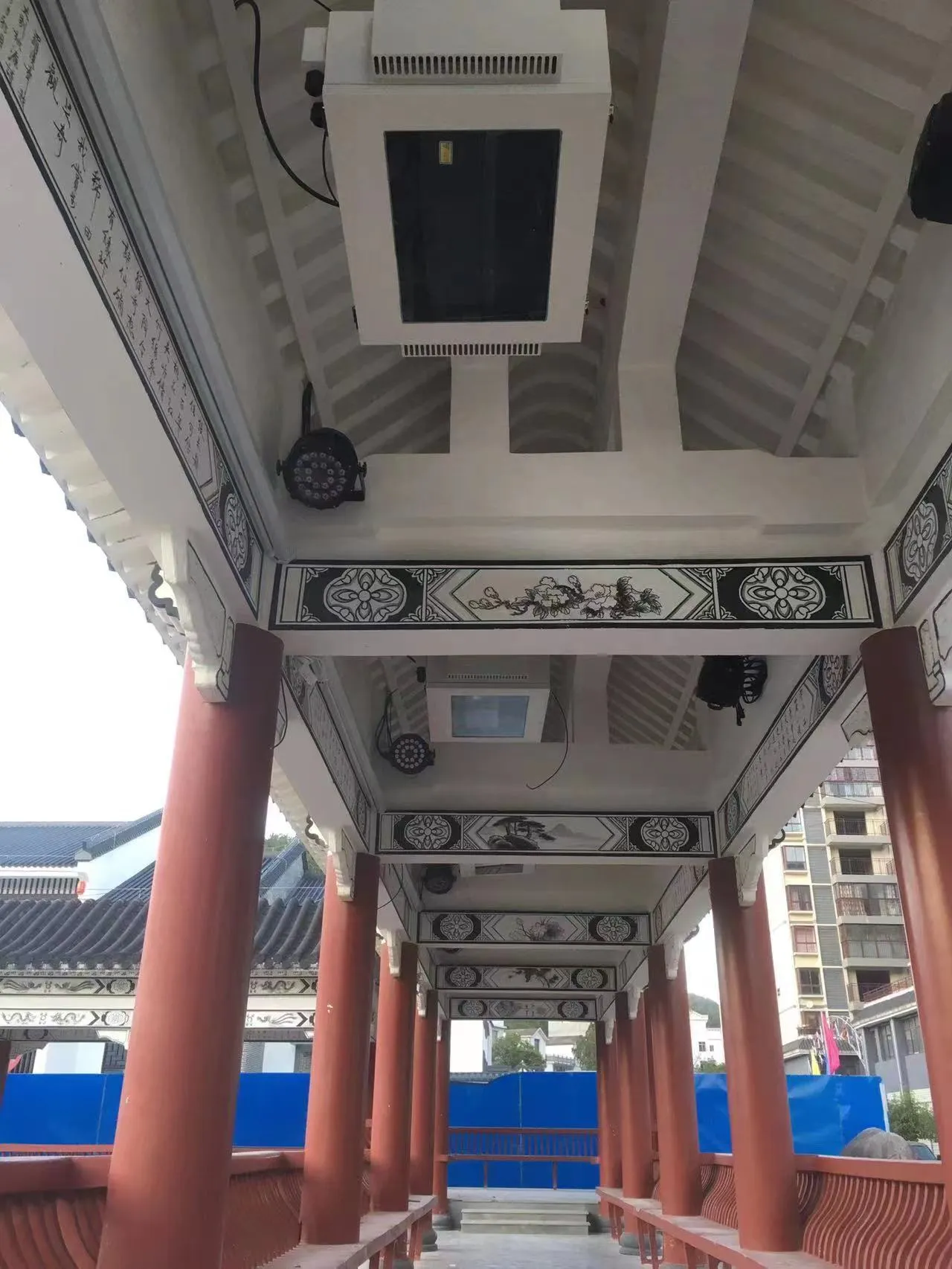

Custom Materials & Sealing
Constructed from 201 stainless steel, 304 stainless steel, or galvanized plate depending on your site's corrosion level. Features waterproof certification up to IP65, ensuring protection against dust ingress and water spray in semi-open or outdoor ceiling environments.

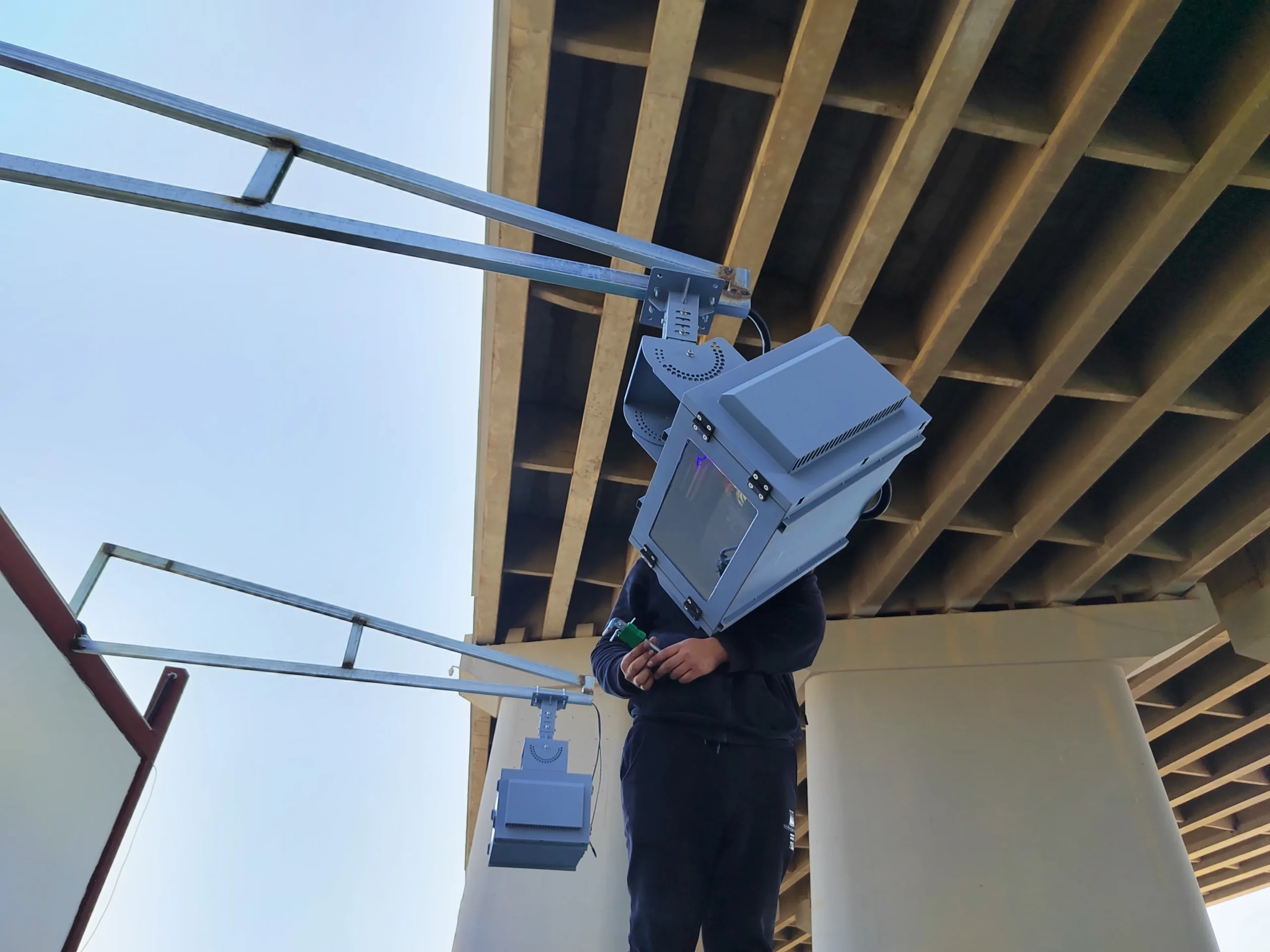

Optical Clarity & Alignment
Equipped with optical ultra-white glass at the projection port, offering 95% light transmittance to prevent brightness loss. The lens position and projection angle are meticulously reviewed against your projector model before production.
Active Climate Control
Heat builds up quickly near ceilings. Our enclosures can be configured with a fresh air system or internal circulation air conditioning. Built-in temperature probes and heating modules manage condensation and extreme temperatures.
Enclosure Configurations
Select the base platform. All models can be customized with specific mounting brackets and cooling options.

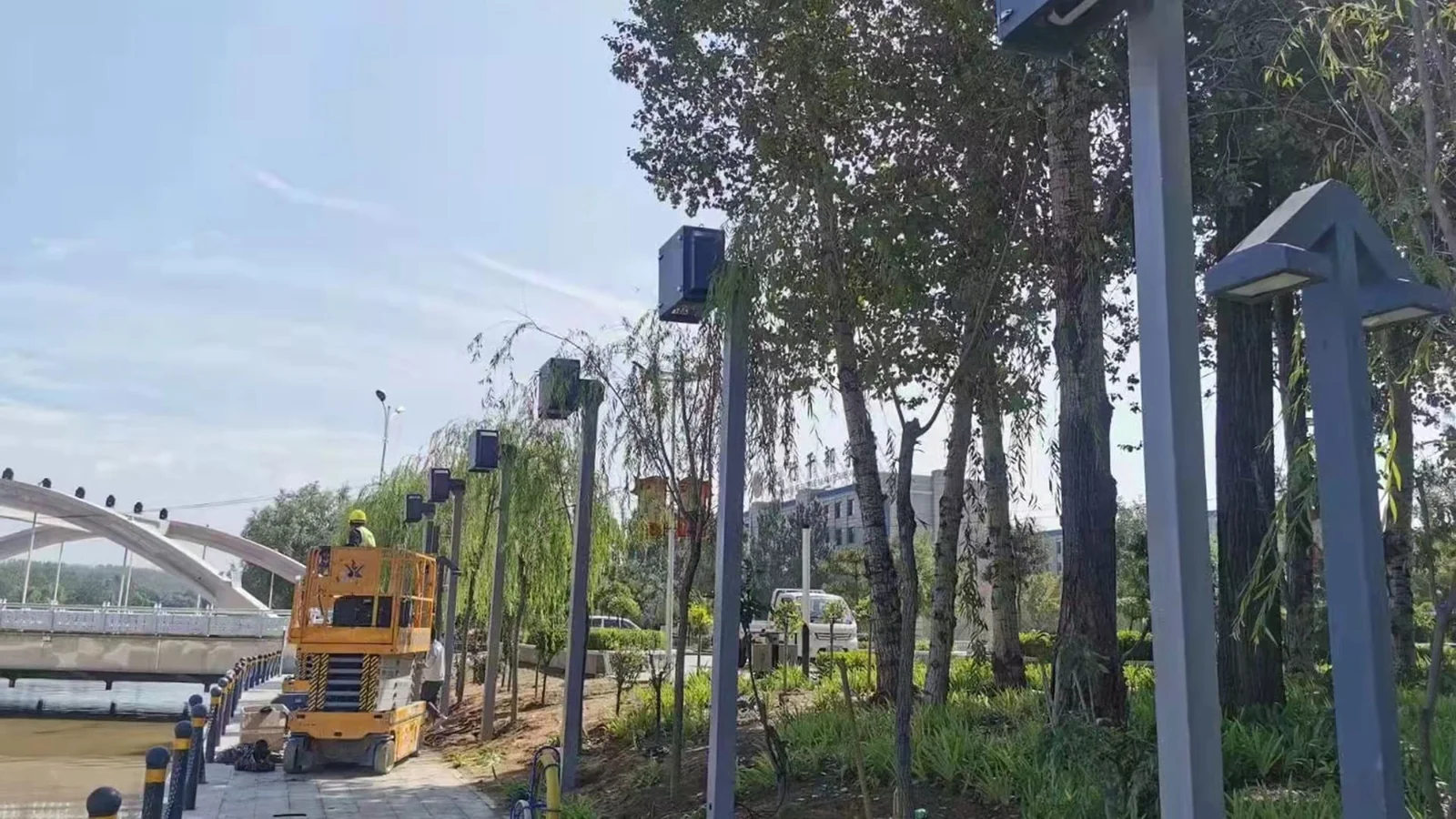

IP65 Ceiling Mount Enclosure
Best for: Outdoor canopies, semi-open architectural spaces.
Value: High-grade waterproof and dust filtration for challenging environments.

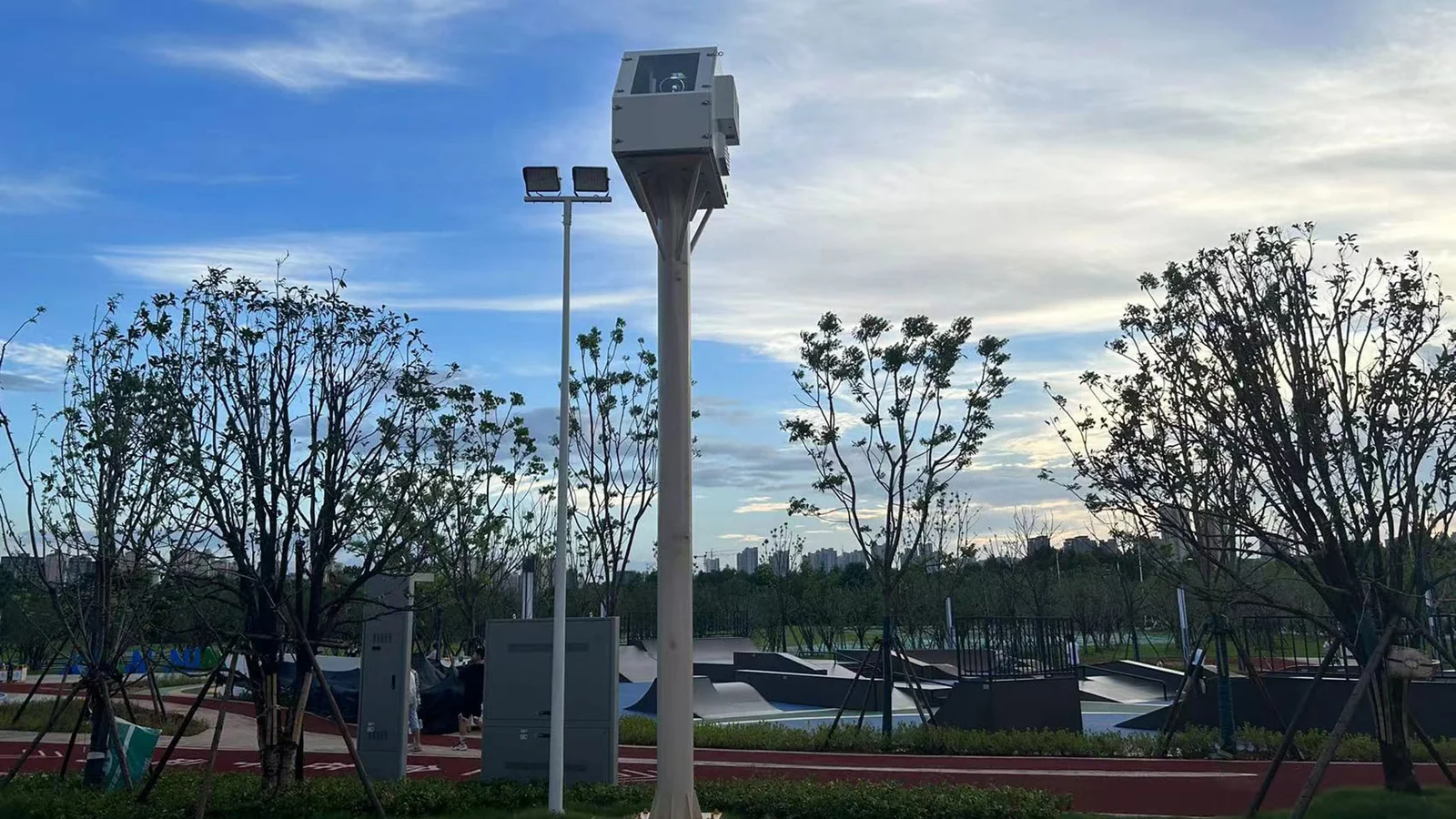

Air-Cooled Enclosure
Best for: Indoor commercial ceilings, exhibition halls.
Value: Efficient fresh air system to manage projector heat buildup overhead.
Internal-Circulation AC
Best for: High-humidity, dusty, or high-temperature sites.
Value: Sealed structure with compressor cooling; no external air exchange.

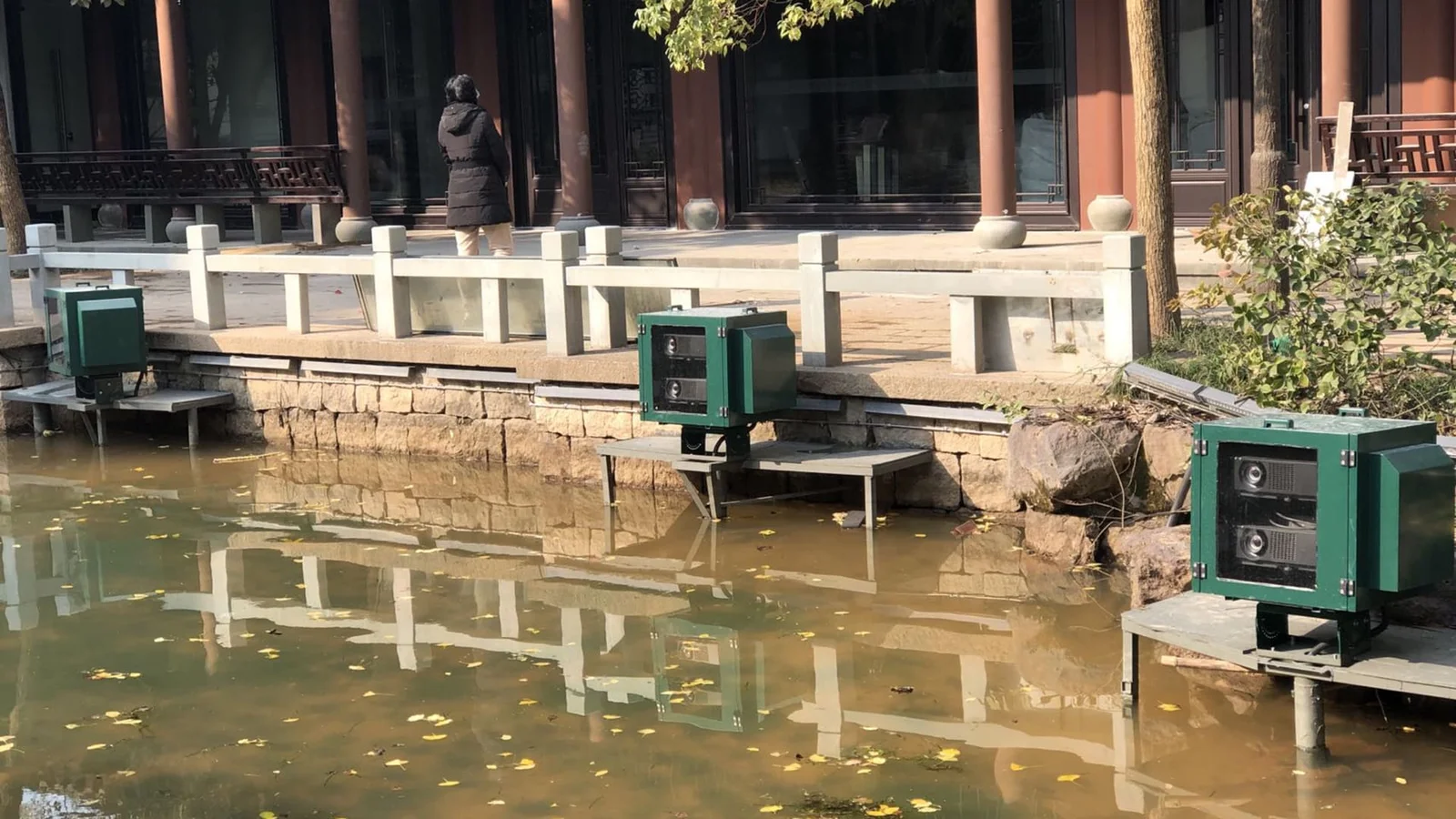

Anti-Condensation Box
Best for: Scenic night-tours with large temperature drops.
Value: Built-in heating and internal blowing device to prevent window fogging.

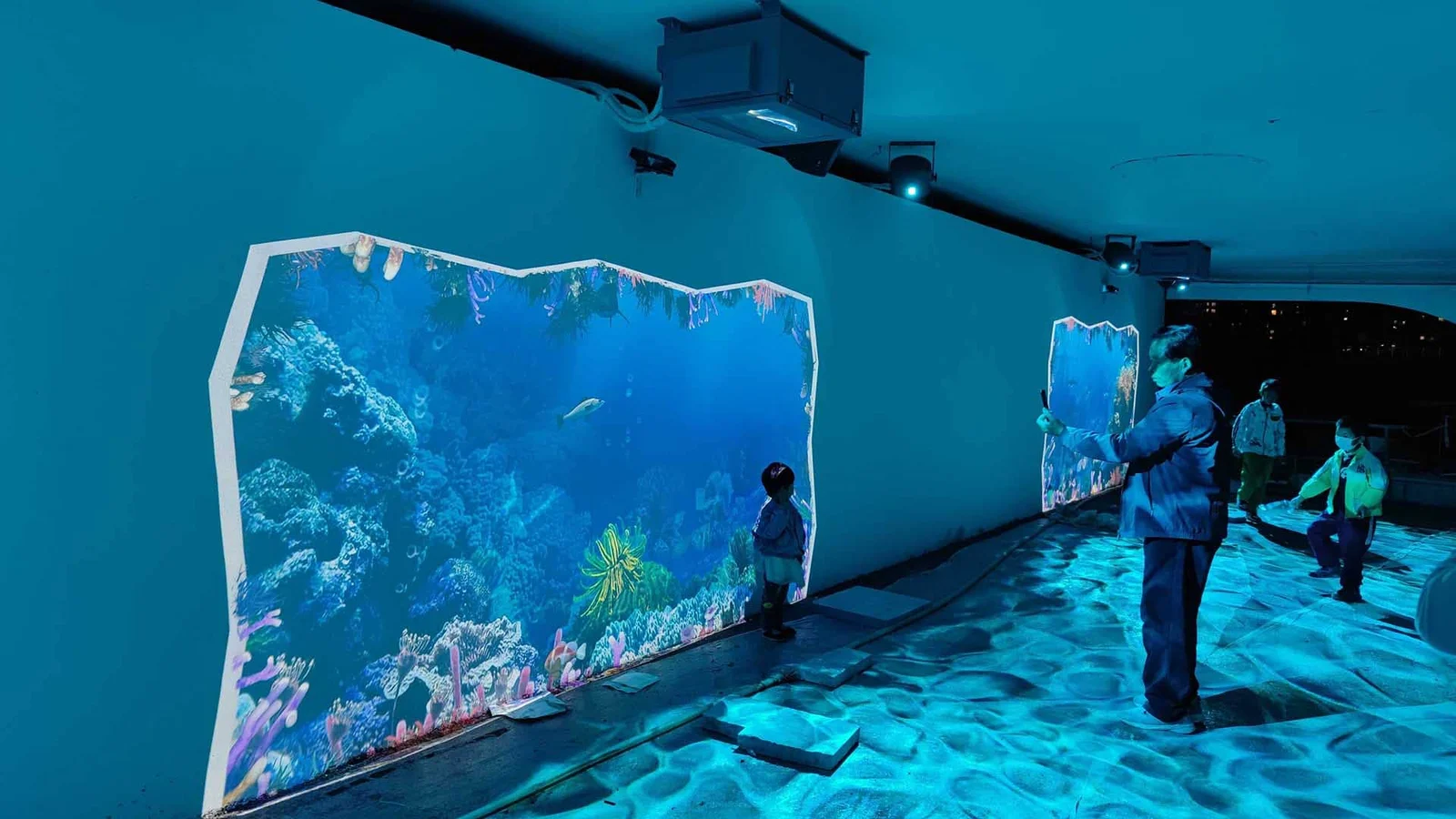

Remote-Control Version
Best for: Hard-to-reach ceiling installations.
Value: Monitor temp/humidity via WiFi/4G to reduce manual inspection frequency.
Non-Standard Custom
Best for: Unique structural or high-lumen projector requirements.
Value: Custom sheet metal processing tailored to your exact cabinet drawing.
Engineered for Ceiling Structures
A successful ceiling installation requires more than just a box. We review your ceiling frame, truss, or steel beam information to ensure the waterproof projector enclosure integrates seamlessly with your site.
-

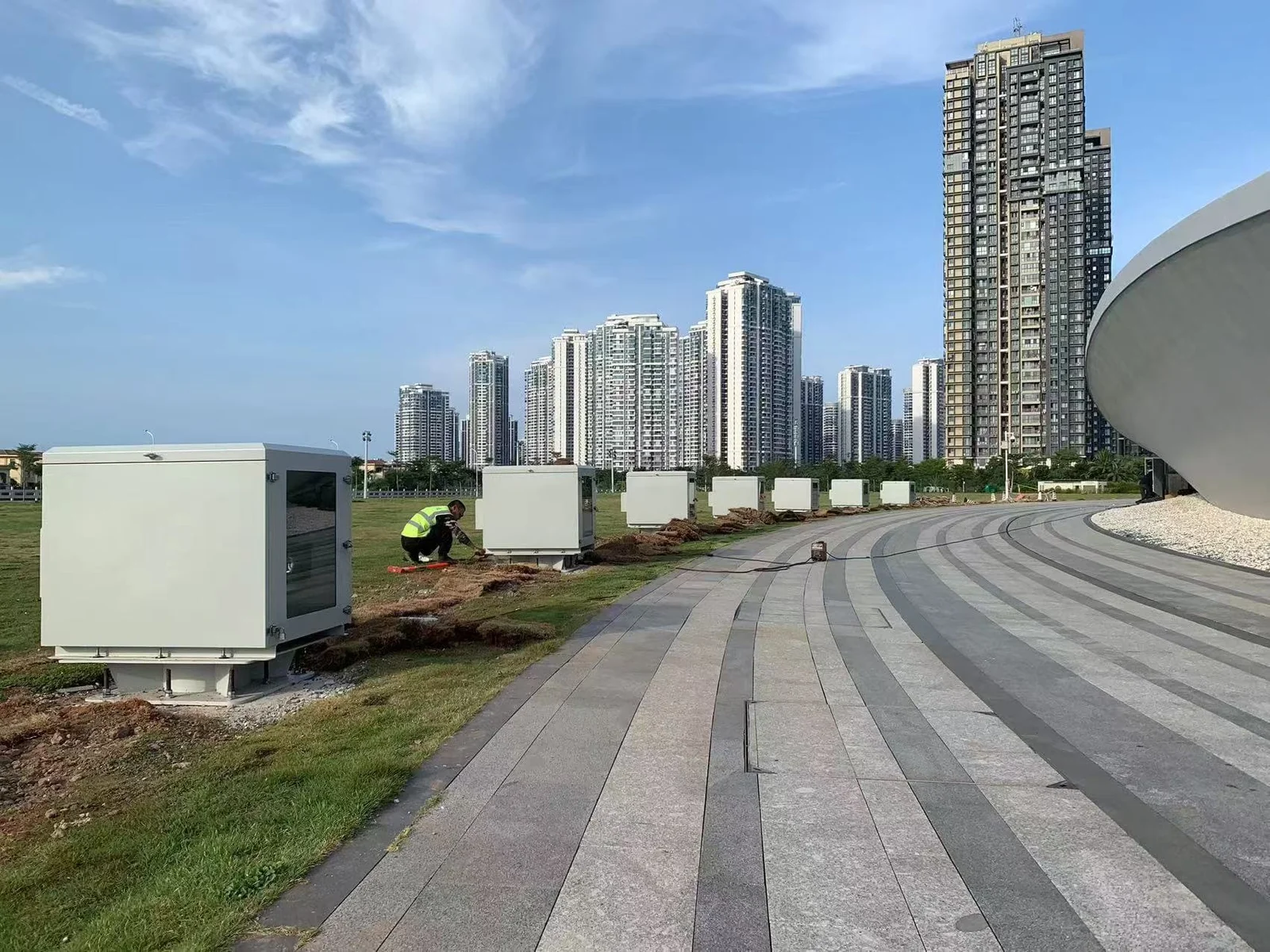

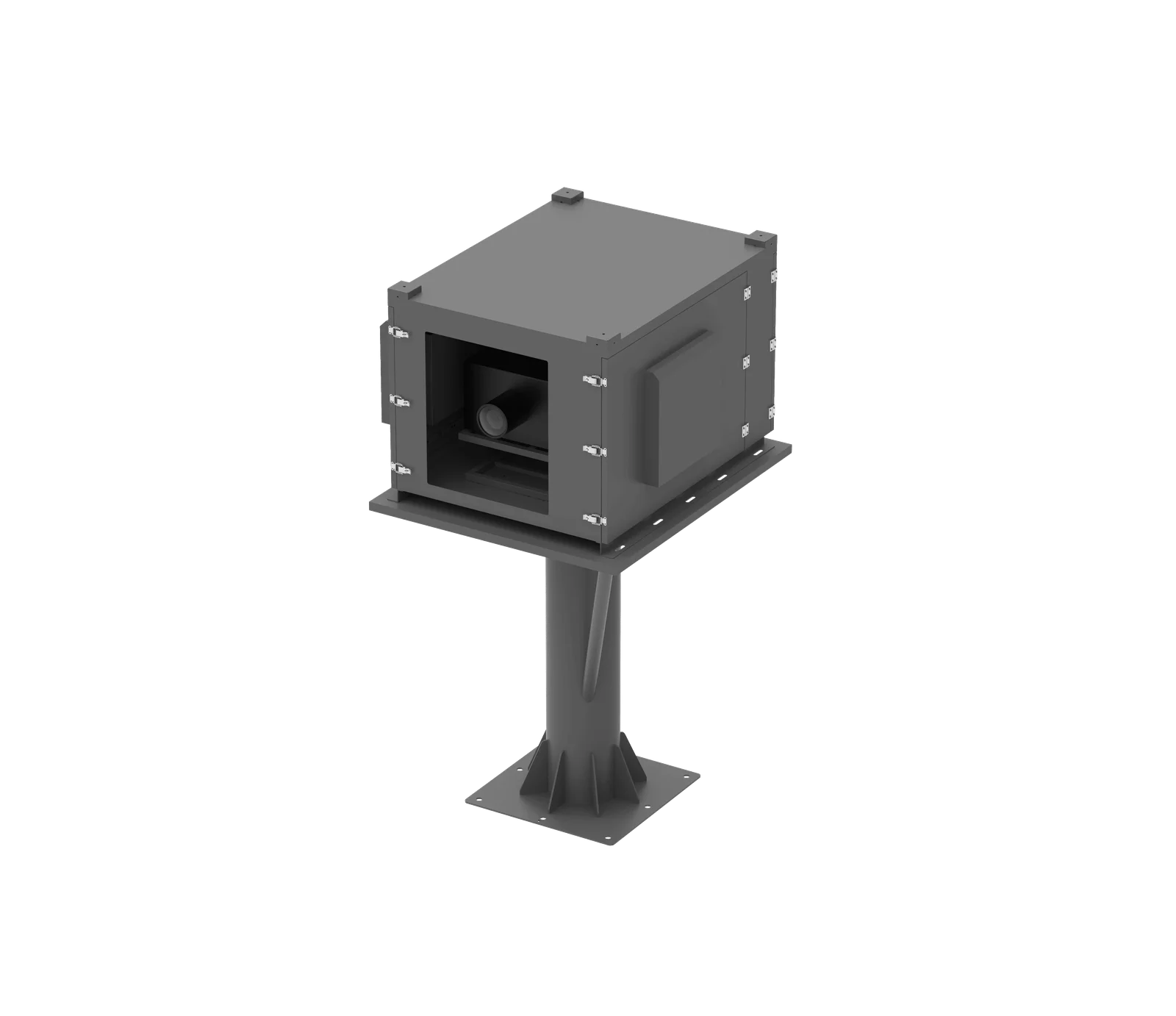

Custom Mounting Bracket & Holes
Mounting holes and brackets must match the support frame. We design the interface based on your installation drawing to avoid on-site drilling.
-
Cable Entry & Maintenance Door
Cable entry direction is matched to your ceiling wiring or cable tray. The maintenance door is positioned to allow easy field service access.
-
Internal Positioning & Power
Features an internal bracket for precise projector positioning, ensuring alignment with the 95% light transmittance optical glass. Reserved 10A or 16A multifunctional socket included.
* Load, vibration, wind exposure, and structural safety should be reviewed by the project engineering team according to local site requirements.
Intelligent Climate Control Logic
Ceiling spaces trap heat. Our enclosures feature automated temperature control boards to manage cooling, heating, and dehumidification autonomously.
Cooling Options
- Fresh Air System: Ideal for well-ventilated indoor spaces. Uses F6 filters to bring in clean air.
- Fresh Air + Air Conditioning: For environments with higher ambient temperatures.
- Internal Circulation AC: Completely sealed. No fan outlet or special air inlet. Uses compressor cooling. Perfect for highly dusty or humid outdoor canopies.
Heating & Dehumidification
In scenic night-tour projects or outdoor environments, temperature drops can cause condensation on the projector and fog on the projection window.
- Internal Blowing Device: Actively reduces frost and fog on the optical glass.
- Dehumidification Module: Removes excess moisture from the sealed enclosure.
Remote Monitoring for Overhead Installations
Checking a ceiling-mounted projector manually requires lifts or scaffolding. Remote monitoring helps project teams check enclosure status and respond earlier when ceiling space humidity or internal temperature changes.
Connectivity
WiFi, Ethernet, 4G, Ali Cloud IoT platform with data encryption.
Sensors
Built-in temperature control probe, humidity sensor, road temperature sensing.
Safety Alarms
Optional smoke alarm and flooding alarm integration.
Where Ceiling Enclosures Are Used
From indoor immersive spaces to outdoor canopies, we design the enclosure to fit the specific environmental constraints.

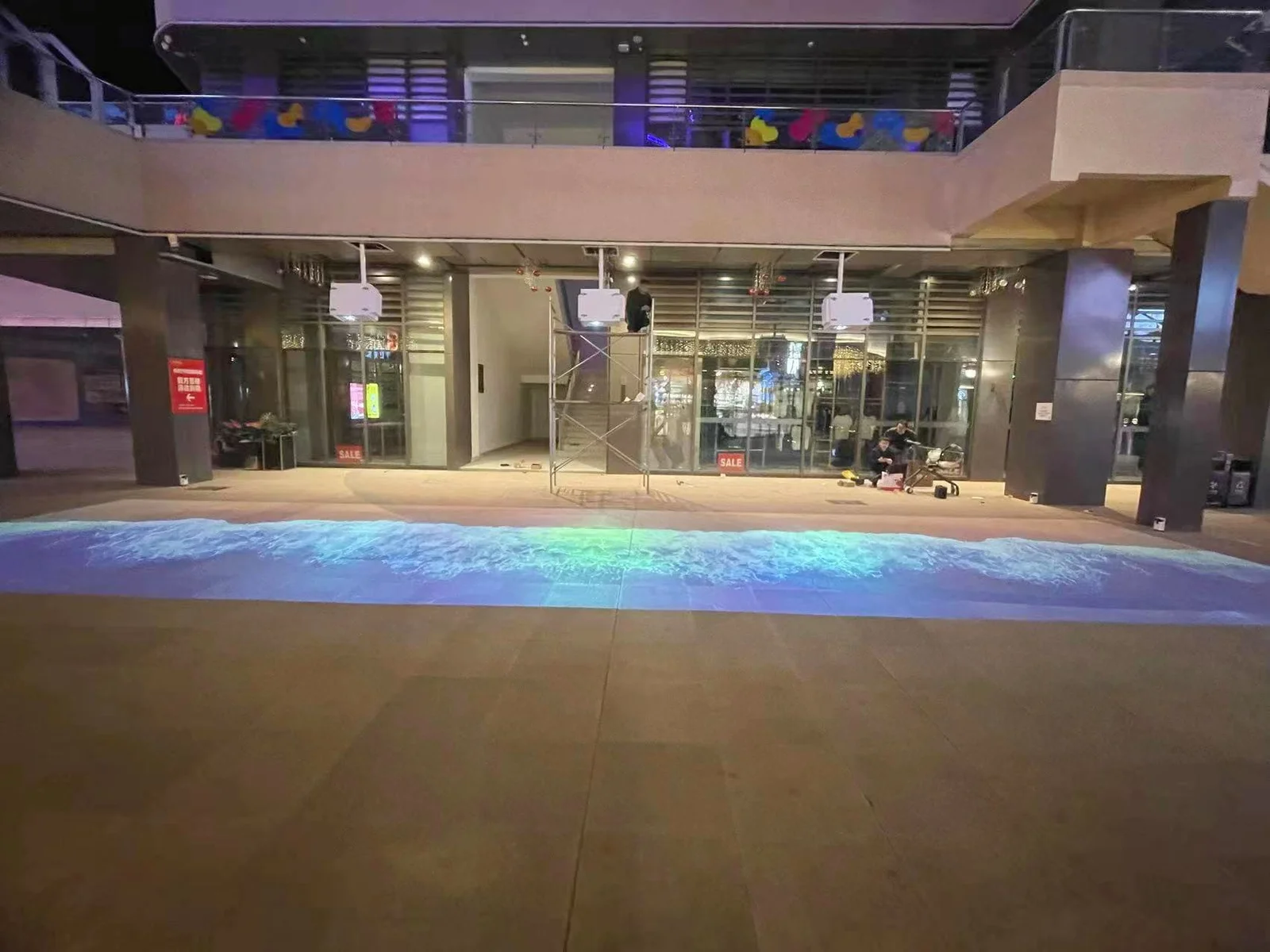

Exhibition Halls & Immersive Spaces
Environment: Indoor, long-hour projection, hidden installations.
Enclosure Role: Air-cooled enclosures manage heat buildup near the ceiling while keeping the setup aesthetically clean.

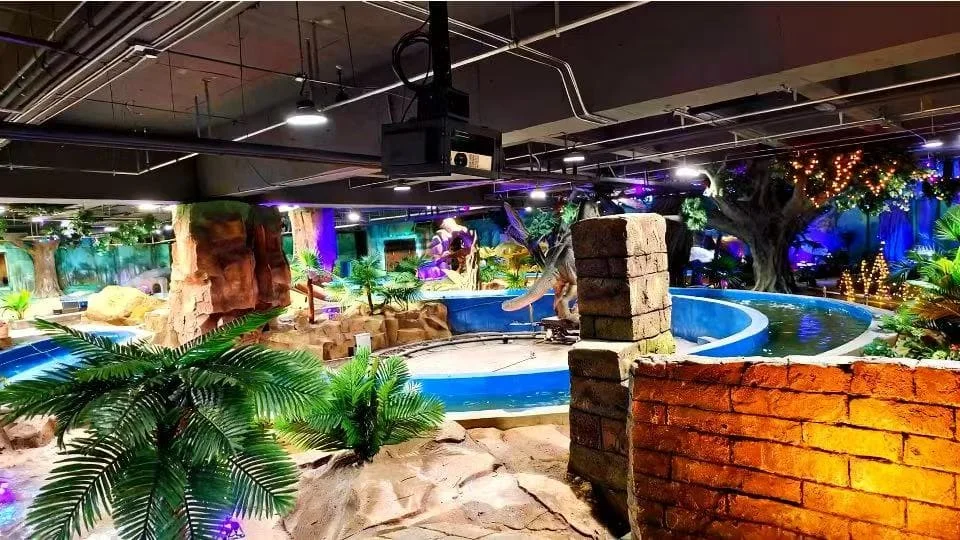

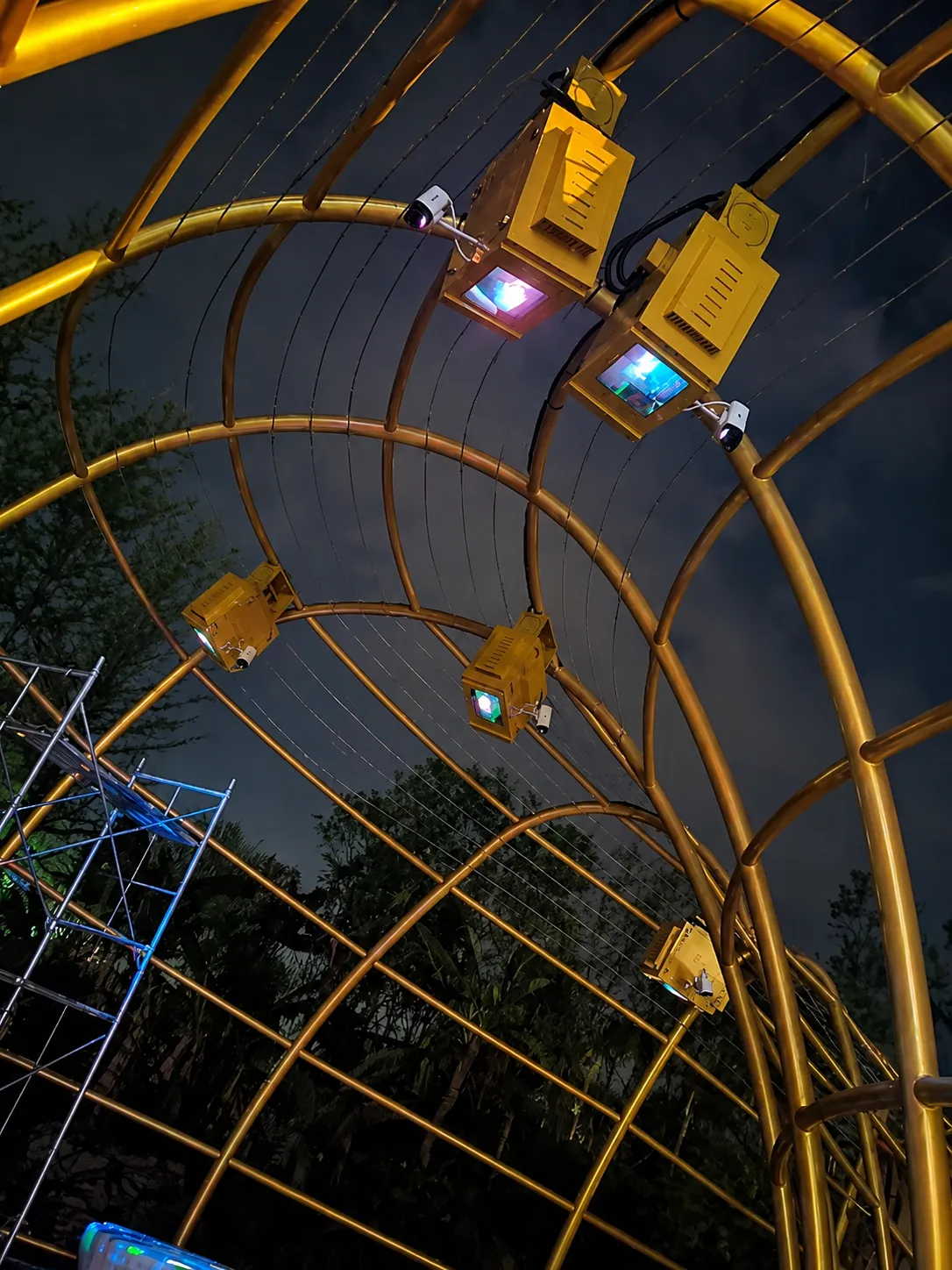

Outdoor Canopy & Scenic Projects
Environment: Semi-open, exposed to humidity, dust, and temperature drops.
Enclosure Role: Waterproof sealing, anti-condensation heating, and insect filtration protect the optics.
Commercial Plazas & Theaters
Environment: High ceilings, difficult maintenance access, complex truss structures.
Enclosure Role: Custom bracket design ensures safe mounting, while remote monitoring reduces manual checks.
Standard Mount vs. Custom Enclosure
Standard Projector Mount
- No waterproof sealing
- Optics exposed to dust and insects
- No active cooling or condensation control
- Cannot integrate remote sensors
Ceiling Mount Projector Enclosure
- IP65 rated waterproof sealing
- F6 filter for dust and insect protection
- Configurable AC, fresh air, and heating
- Custom bracket, holes, and cable entry
- Exact lens alignment before production
Engineering Customization Process
Customization starts from the projector model, ceiling structure, site photos, installation method, and cabinet drawing. We ensure mass production stability based on approved samples.
Share Project Details
Send projector model, ceiling drawing, and site photos.
Review Structure
Confirm enclosure dimensions, bracket design, mounting holes, and cable entry.
Configure Climate
Choose cooling method (AC/Fresh Air) and enclosure material.
Sample & Order
Discuss sample approval, project order, and request a quote.
Manufacturing Capability & Trust
Why Buyers Trust ShiRui
As a manufacturer with extensive experience in self-developed outdoor network cabinets and waterproof cases for projectors, we control the entire sheet metal processing and assembly process.
-

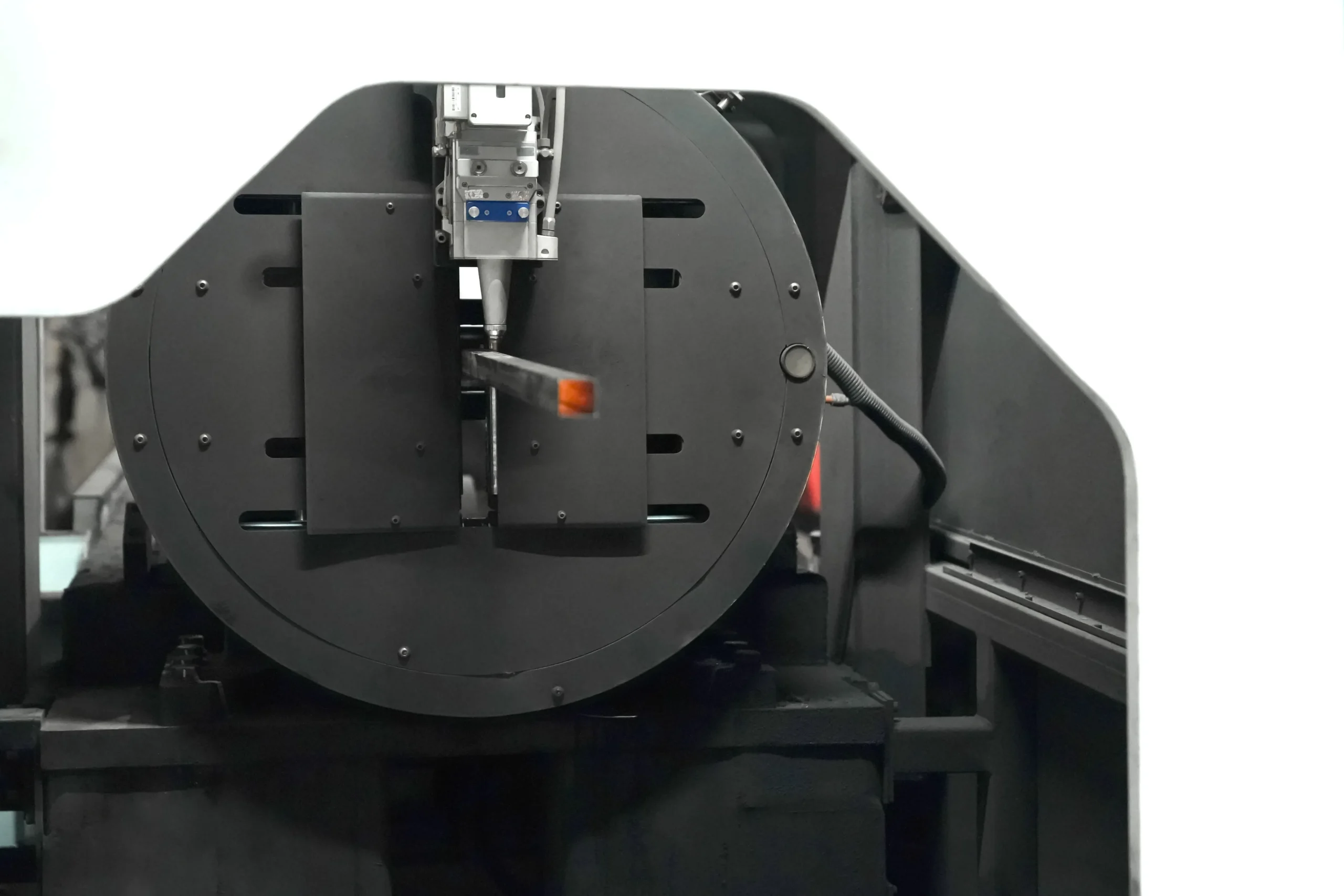

Factory Videos & Photos Helps buyers review the production environment, sheet metal processing steps, and bracket assembly before sharing project specifications.
-
Engineering Project Cases Review real product photos and installation scenarios to confirm our capability in handling complex ceiling structures.
-
Certifications Certification documents are available on request to meet your project compliance requirements.
Frequently Asked Questions
What is the difference between a ceiling-mounted projector enclosure and a standard projector mount?
Can the enclosure be customized for different projector models?
What ceiling information should I provide before quotation?
What is internal circulation air conditioning?
Can the enclosure reduce fog or frost on the projection window?
Send Project Specs
To provide an accurate quote and structural design, please let us know:
- Projector model
- Ceiling structure or drawing
- Expected cooling method
- Enclosure material (SS/Galvanized)
