Waterproof Projector Enclosure for Fixed Outdoor Projects
Engineered for AV system integrators and engineering project managers. An industrial-grade outdoor projector enclosure designed to protect high-lumen projectors from rain, dust, and temperature extremes. Unlike standard covers, our outdoor projector housing integrates climate control to ensure stable operation in demanding environments.
What is a Waterproof Projector Enclosure?
A waterproof projector enclosure is an industrial-grade protective cabinet designed for outdoor fixed projection projects. It shields engineering projectors from rain, dust, moisture, and extreme temperatures during long-hour operations in scenic areas, building facades, and commercial plazas.
- Constructed from 201 stainless steel, 304 stainless steel, or galvanized plate depending on project requirements.
- Features optical ultra-white glass at the projection port with 95% light transmittance to maintain image clarity.
- Designed with waterproof certification up to IP65, providing reliable sealing against severe weather conditions.
Real Challenges in Outdoor Projection
Why standard DIY covers or simple metal boxes fail in engineering environments.

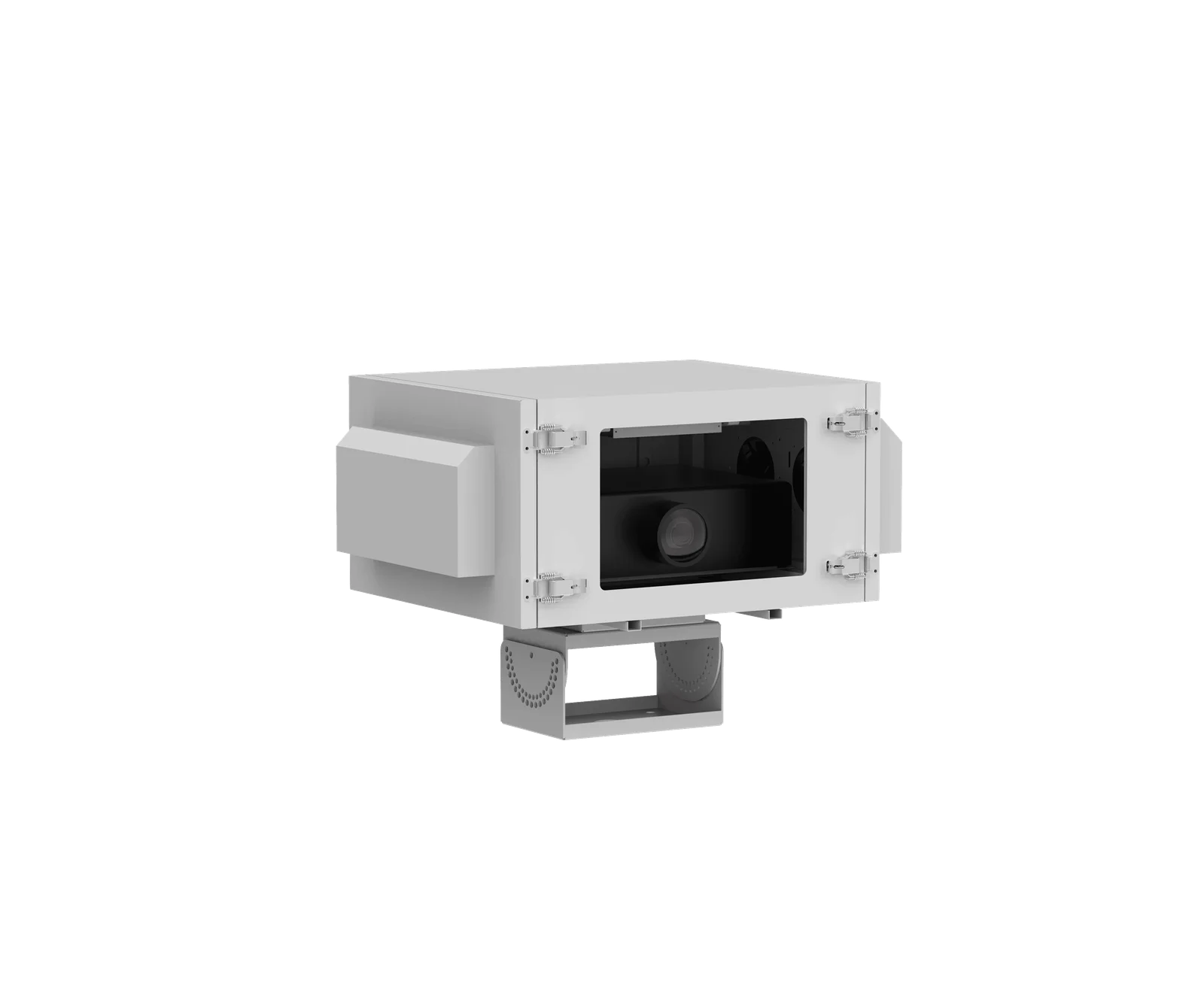

Rain & Outdoor Exposure
Projectors installed on building facades face continuous rain. Our enclosure provides IP65 waterproof sealing to protect internal electronics.

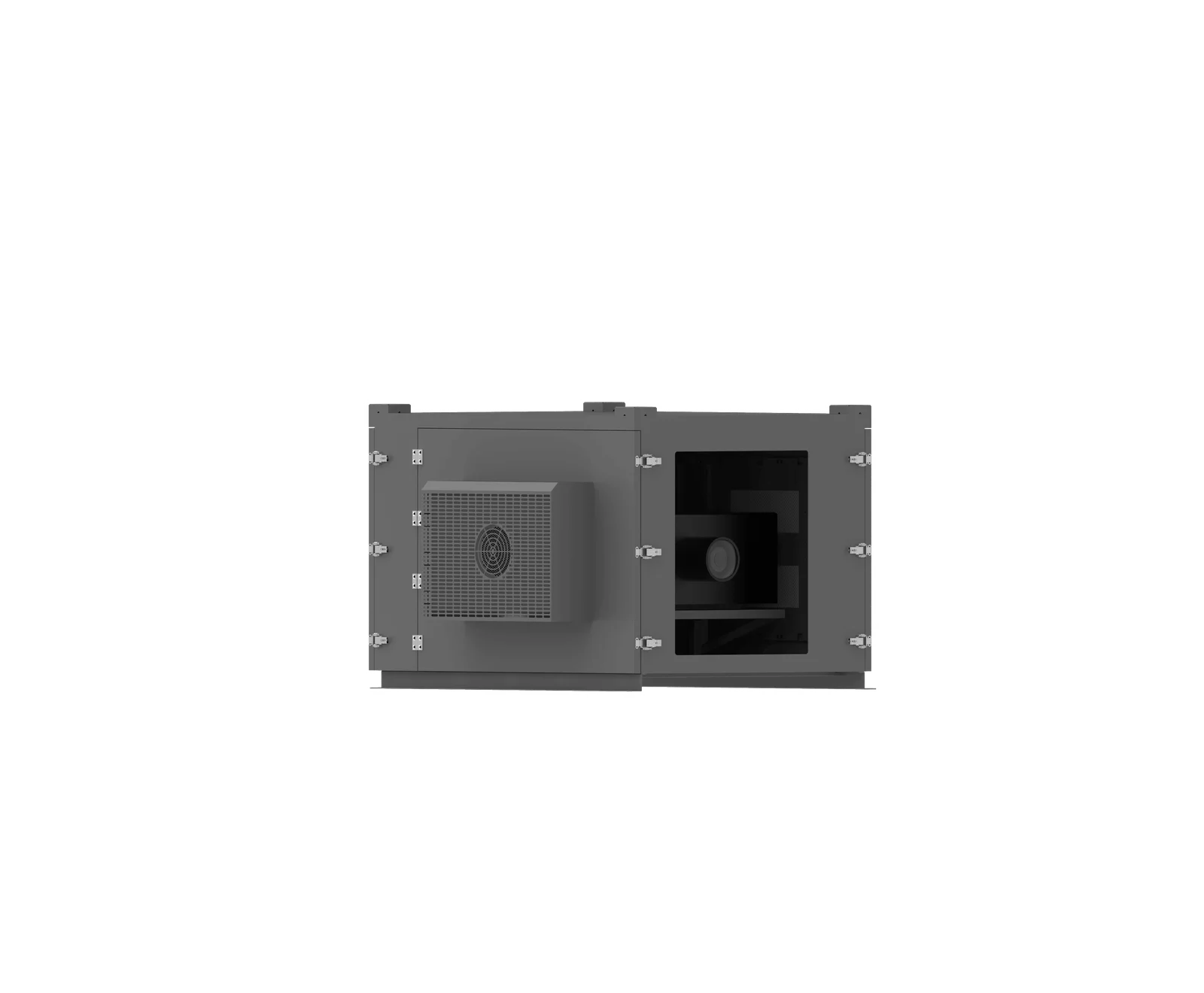

Dust & Insects
Dust and mosquitoes can enter cooling paths. An integrated F6 medium-efficiency air filter prevents debris from damaging the projector lens.

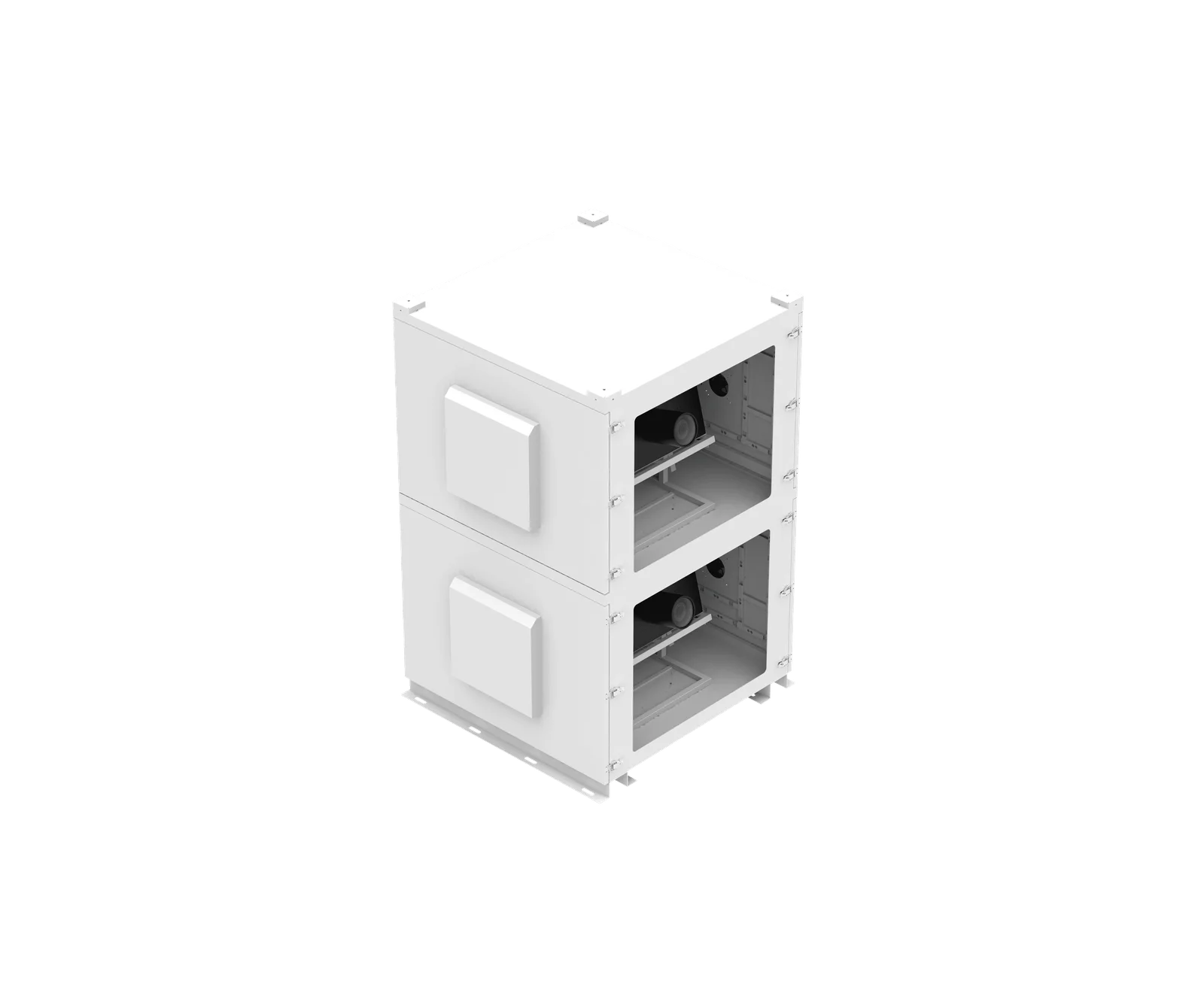

High Humidity
Coastal or water screen projects suffer from moisture. Built-in dehumidification and heating systems activate based on specific humidity thresholds.

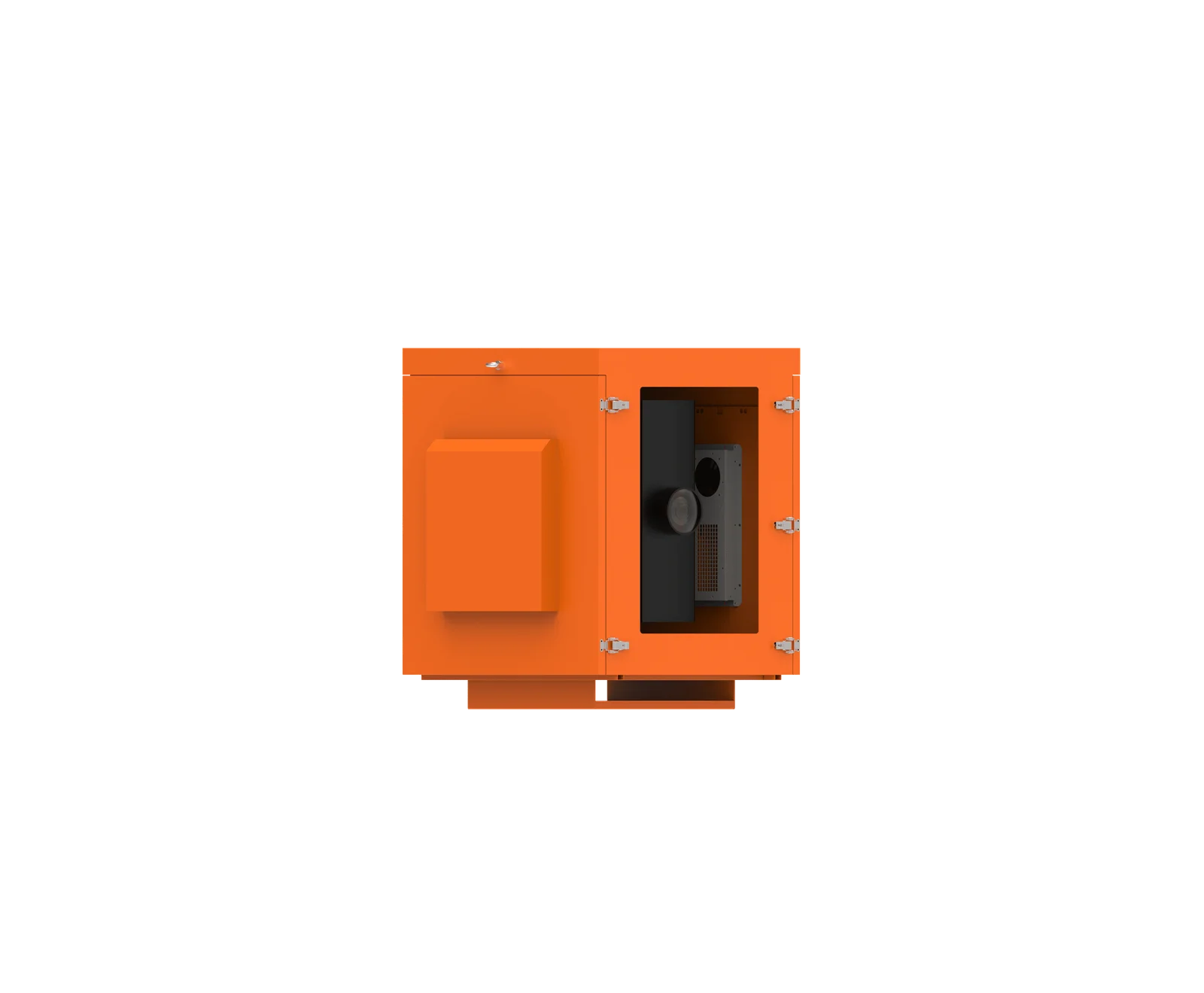

Heat Buildup
High-lumen projectors generate massive heat. Sealed boxes cause overheating. We offer fresh air or internal circulation AC cooling to manage thermal loads.

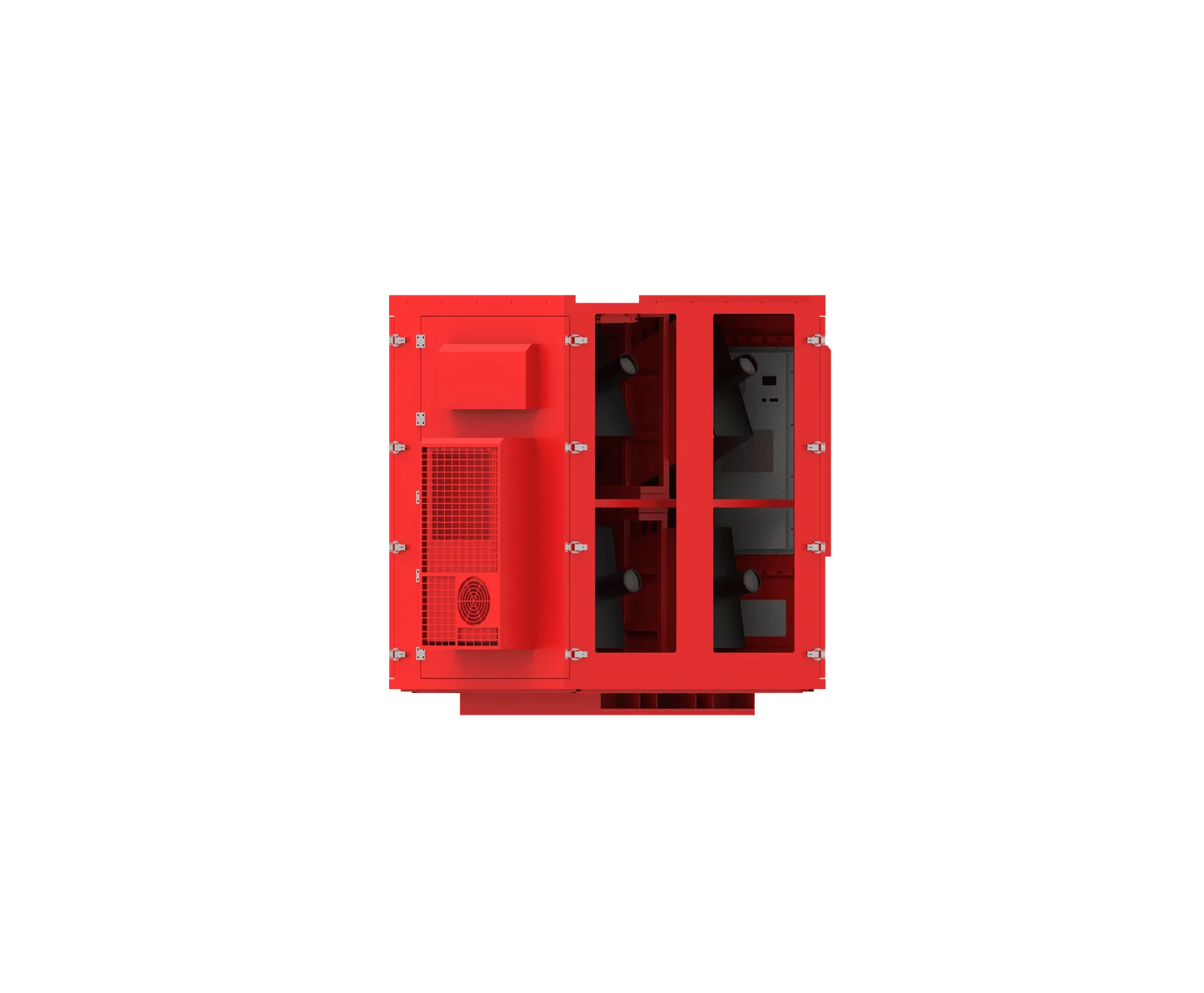

Condensation & Fogging
Temperature drops cause fog on the projection window. An internal blowing device reduces frost and fog, ensuring clear image projection.

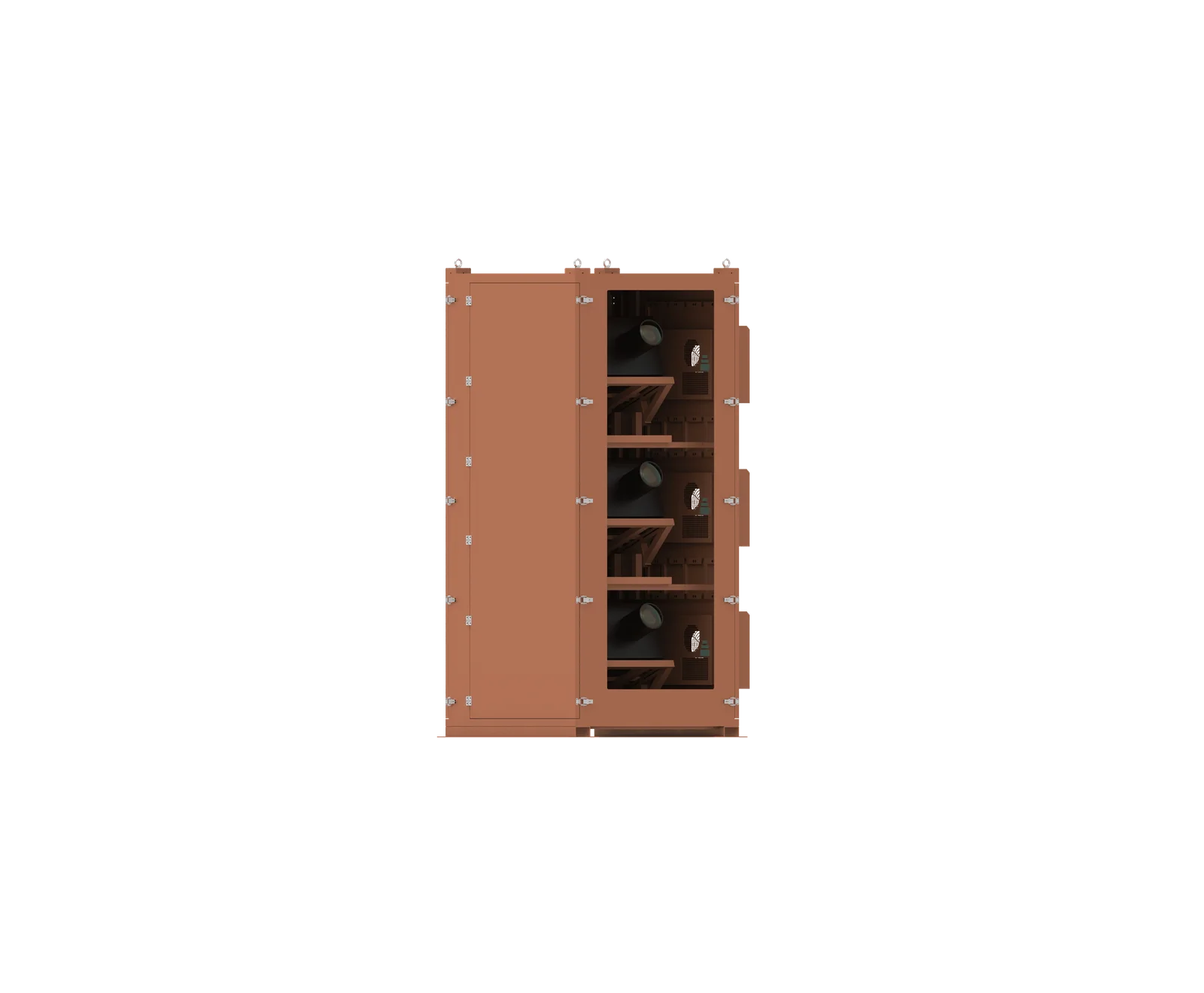

Site Installation Limits
Fixed poles or tight wall spaces restrict maintenance. Custom mounting holes, cable entry directions, and maintenance doors solve site constraints.
Waterproof Projector Enclosure Categories
Tailored solutions depending on projector model and site conditions.

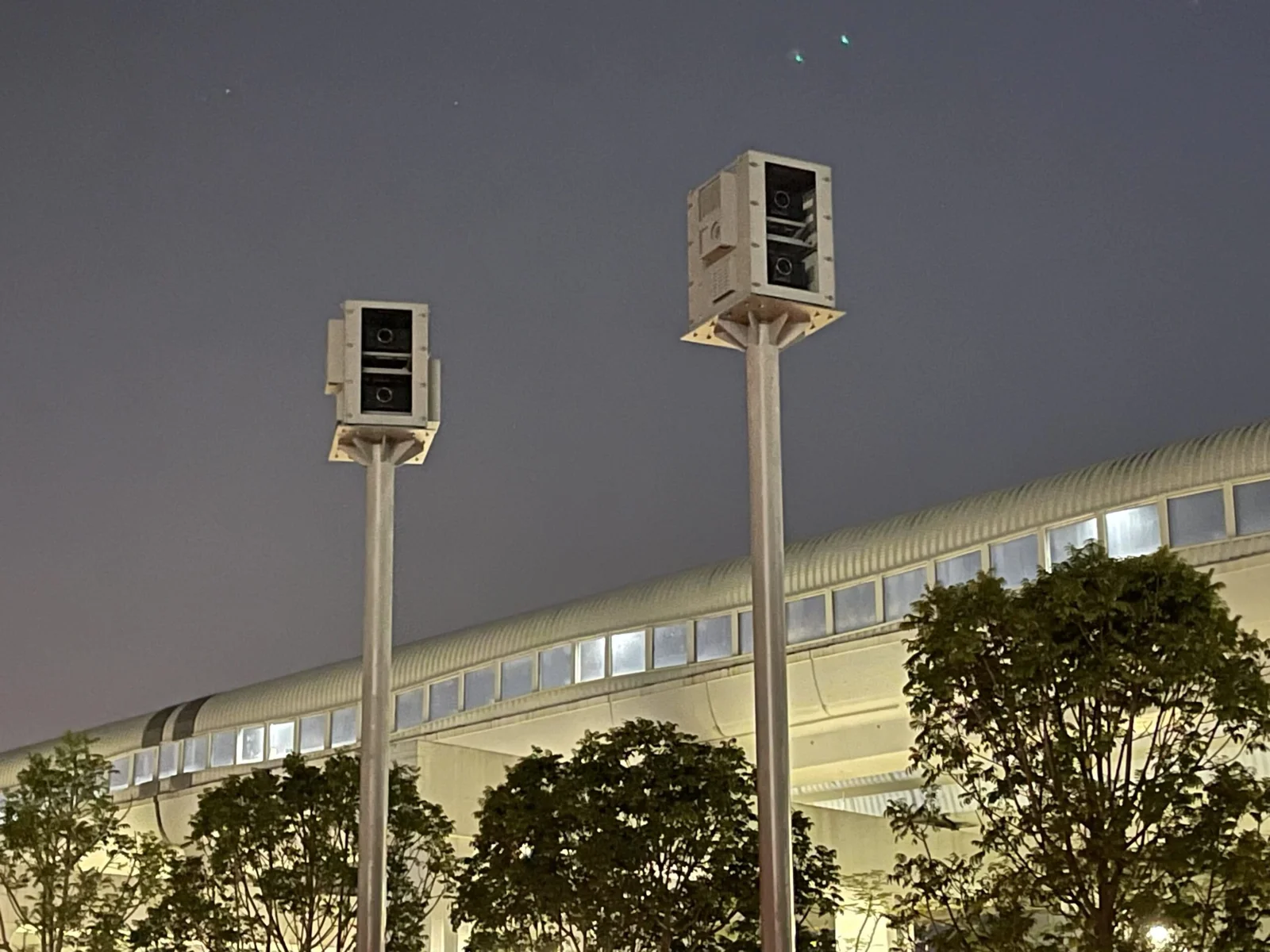

IP65 Waterproof Enclosure
Suitable for mild climates. Focuses on rain and dust protection with standard ventilation.
View Details

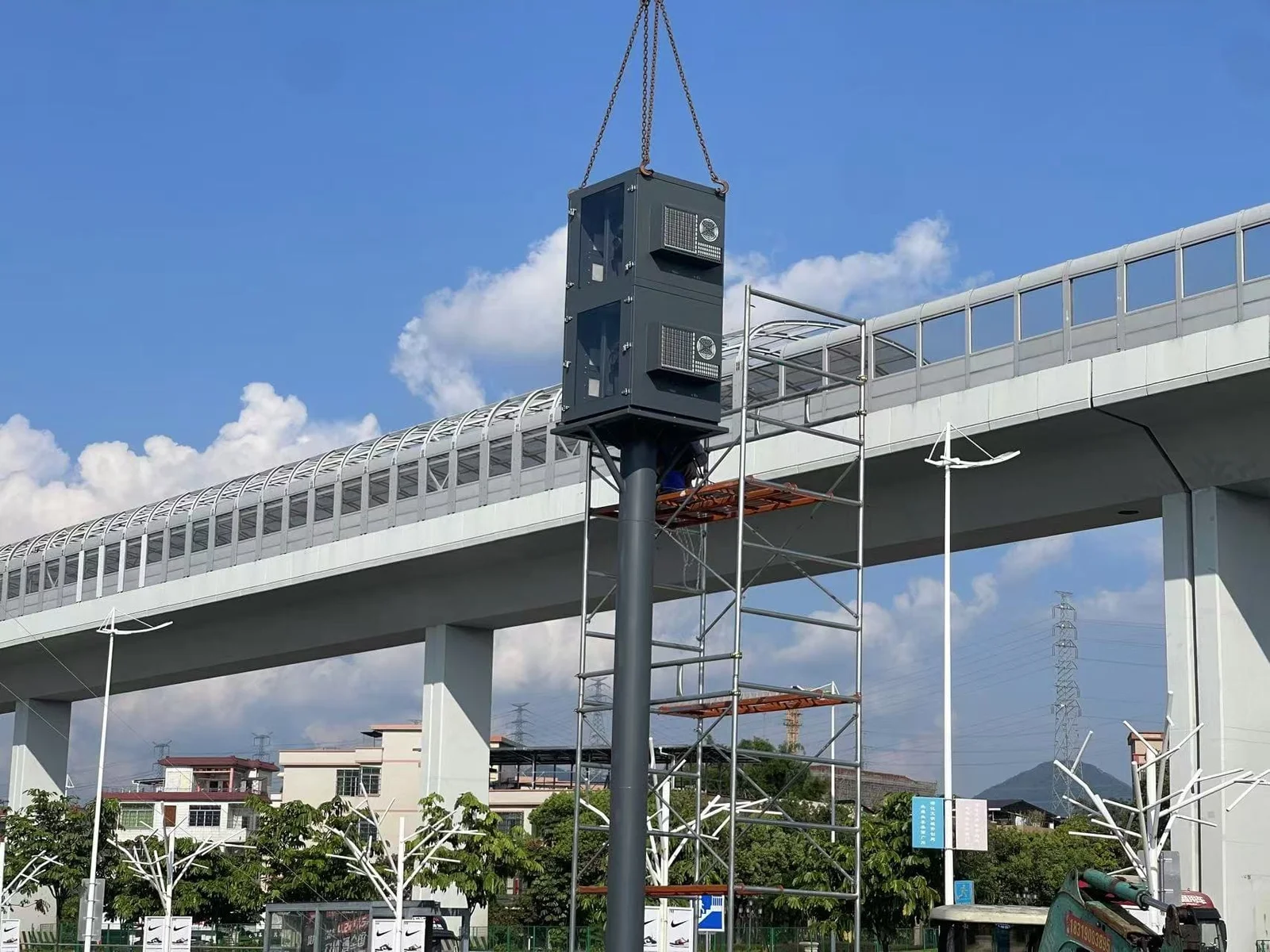

Air-Cooled Enclosure
Utilizes a fresh air system to exhaust heat. Ideal for standard outdoor projection.
View Details

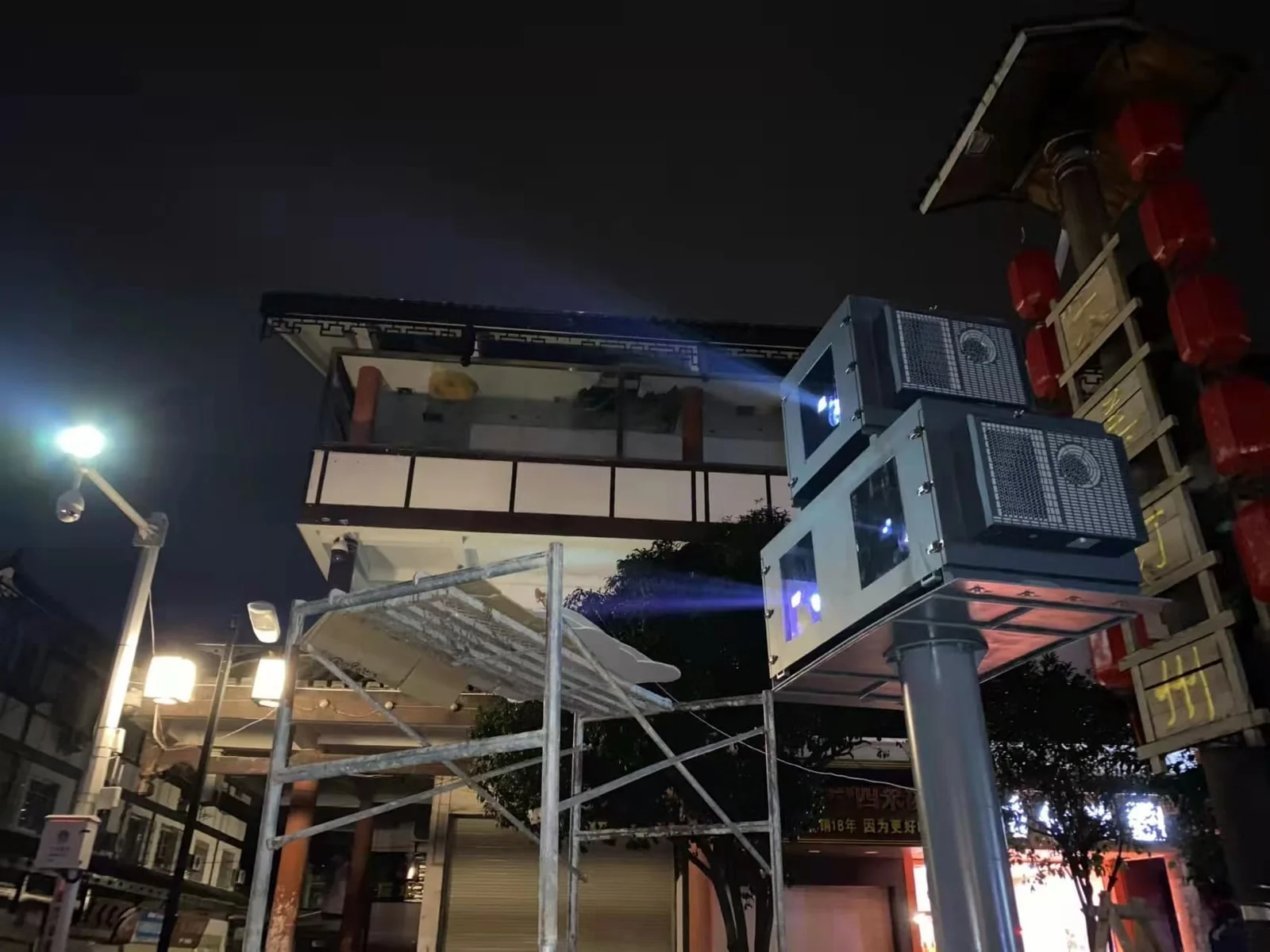

Internal-Circulation AC
Completely sealed with no fan outlet. Uses compressor cooling for harsh, dusty environments.
View Details

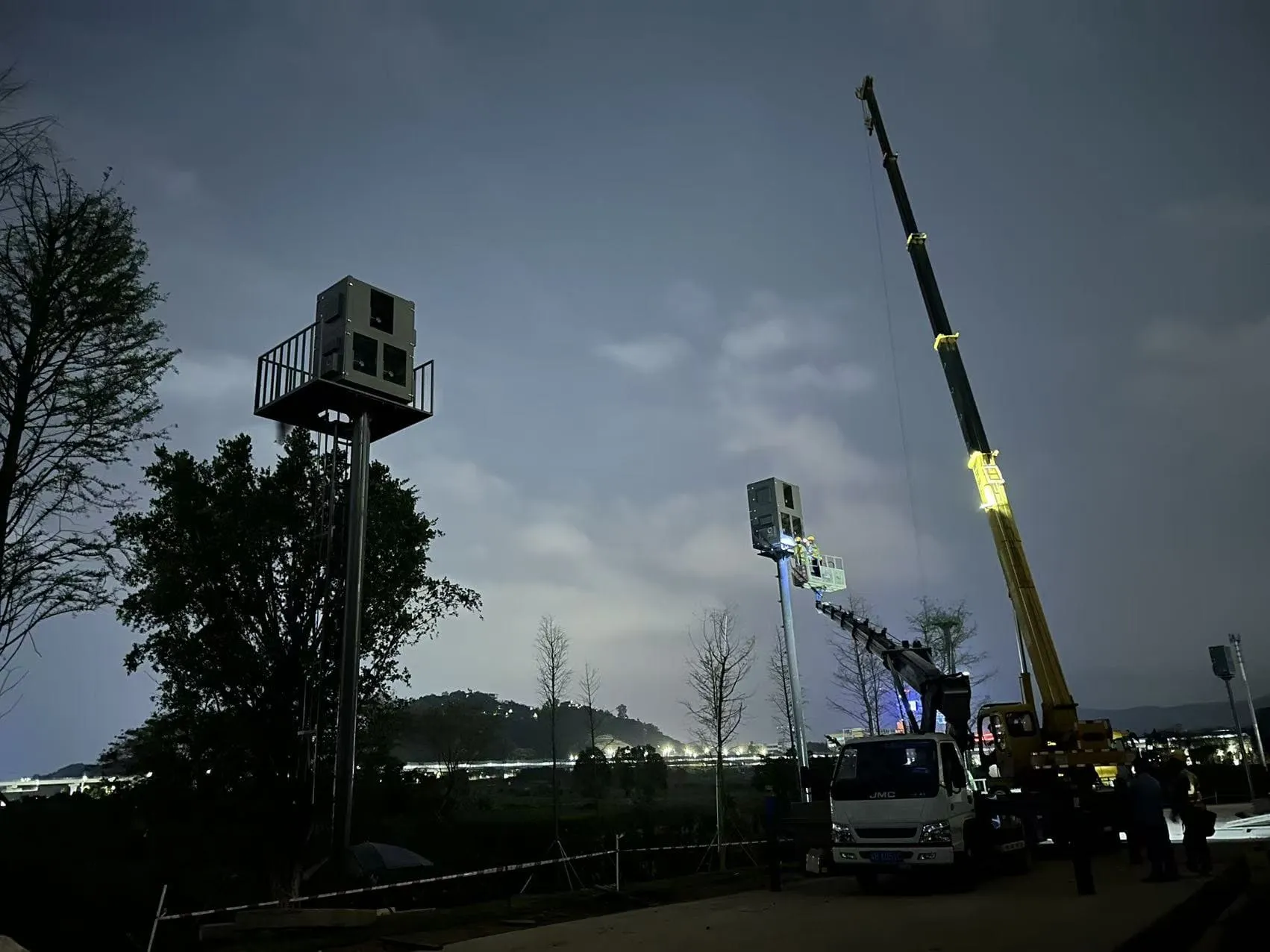

Remote-Control Version
Integrates IoT monitoring. Helps project teams check enclosure status remotely.
View Details

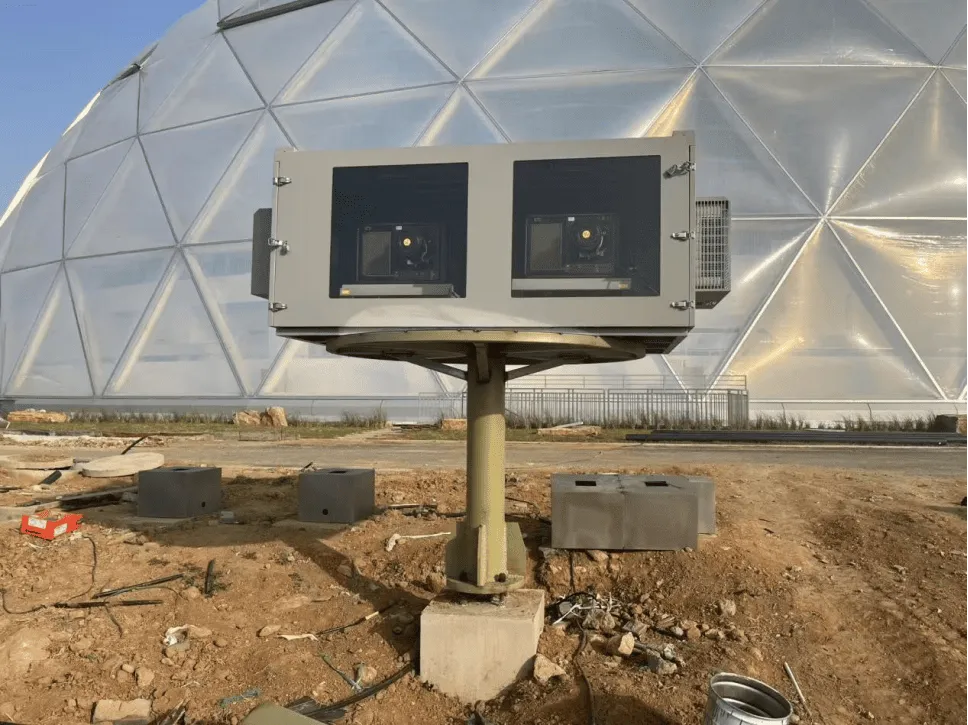

Anti-Condensation Box
Equipped with internal blowing device and heating to prevent fog on optical glass.
View Details
High-Lumen Enclosure
Larger dimensions and enhanced cooling capacity for massive engineering projectors.
View Details
Custom Sheet Metal
Tailored cabinet drawing matching specific projector lens positions and airflow directions.
View Details

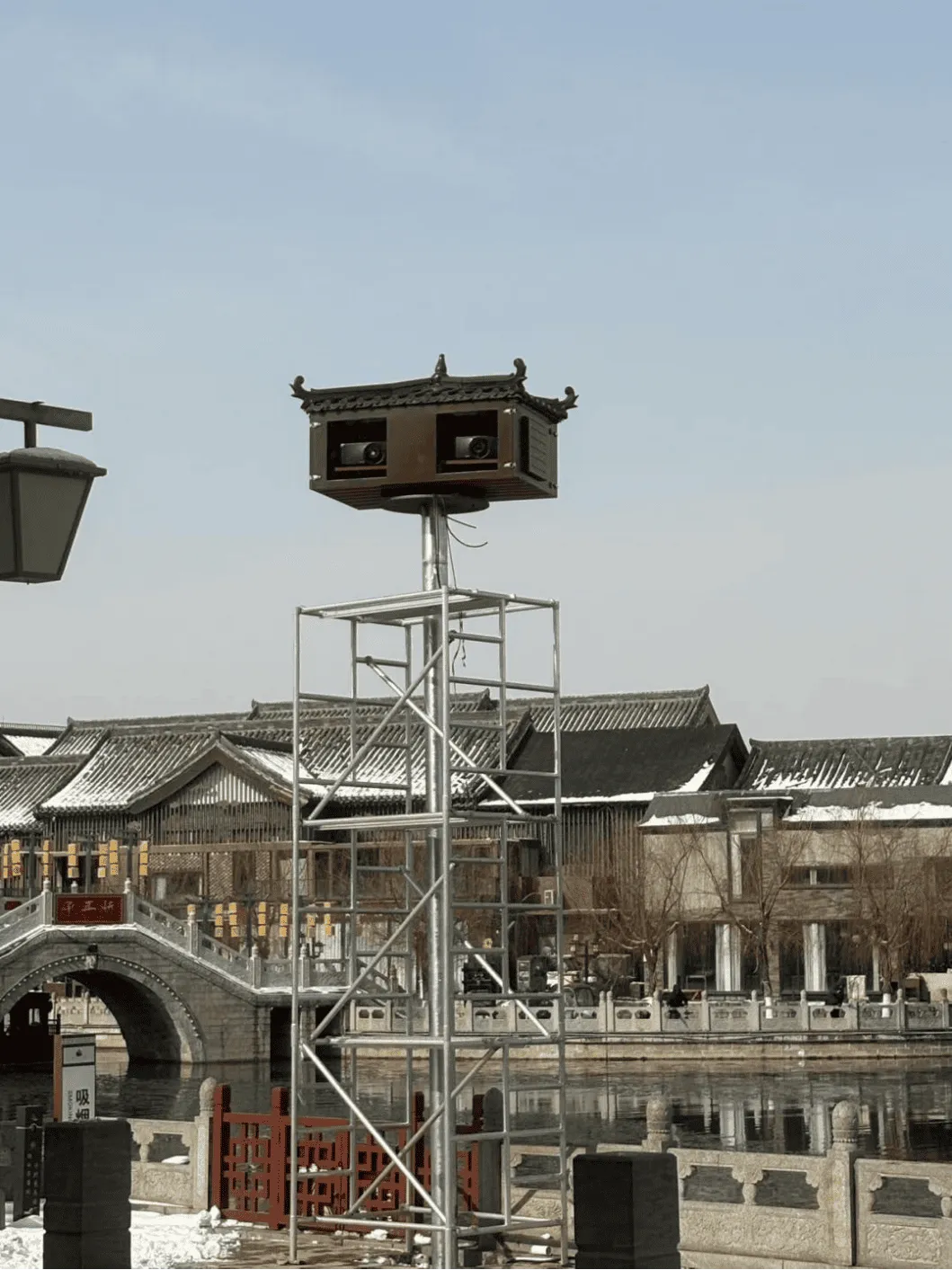

Fresh Air + AC System
Hybrid cooling for locations with extreme temperature fluctuations during day and night.
View DetailsEngineered Structural Details
Every component is designed to solve real-world installation constraints and environmental threats.
Material & Sealing
Available in 201 stainless steel, 304 stainless steel, or galvanized plate. Features a multi-layer waterproof sealing structure.
Optical Ultra-White Glass
Projection port uses 95% light transmittance glass, minimizing brightness loss for high-end AV projects.
Internal Configurations
Includes an F6 medium-efficiency air filter, internal bracket, and reserved 10A or 16A multifunctional socket via our Industrial Power Supply Board.
Installation & Maintenance
Customizable mounting holes, specific cable entry points, and a maintenance door designed for field service access.
Intelligent Climate Control Logic
A waterproof enclosure cannot just seal; it must manage heat, humidity, and condensation.
Cooling Start Logic
When the box temperature is higher than the preset value of 35°C by ≥ 2°C, the fan cooling system starts. When temperature falls below the preset value by ≤ 2°C, the fan stops working.
Managed by Temperature Control Board
Heating & Dehumidification
Heating module activates when temperature ≤ 5°C and humidity ≥ 85%. It stops warming when temperature reaches 10°C and humidity ≤ 75%.
Prevents internal condensation
Internal Circulation AC
For subway projects or dusty sites, the enclosure has no fan outlet and no special air inlet. It uses an air conditioner compressor for sealed cooling.
Total isolation from outside air
Remote Monitoring & Sensors
Remote monitoring helps project teams check enclosure status and respond earlier when site conditions change, reducing unneeded physical maintenance trips.
Engineering Customization
Different projector brands and models have varying dimensions, lens positions, and airflow paths. A standard box often fails to fit.
1. Projector Model Matching
We verify the projector model to align the lens position with the optical window and ensure the air outlet cannot be blocked by the cabinet wall.
2. Cabinet Drawing Review
Enclosure dimensions, mounting holes, and cable entry must match site wiring direction. Drawings can be reviewed before production.
3. Installation Method
Whether pole-mounted, wall-mounted, or floor-standing installation, we design the bracket and ensure the maintenance door allows field service.
4. Sample to Mass Production
We offer sheet metal processing services. Sample approval ensures mass production stability for large-scale outdoor commercial display projects.
Suitable Outdoor Projects
Protecting AV investments across diverse environments.
Building Projection
Requires robust waterproof sealing and wall-mounted installation review.

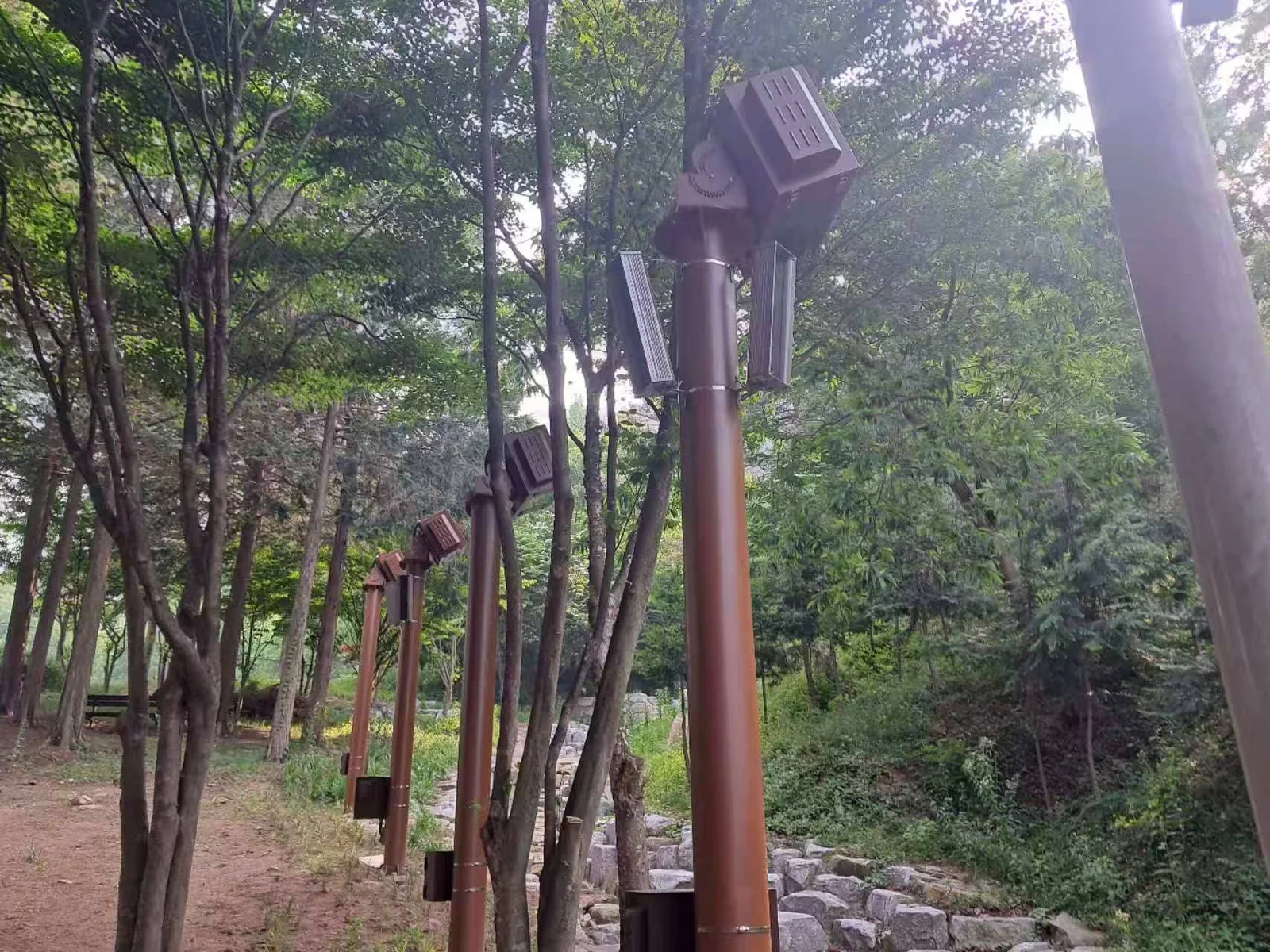

Scenic Night-Tour Projects
Faces insects and moisture. Needs F6 filter and anti-fog features.
Water Screen Projection
High-humidity environment demanding dehumidification and internal blowing.
Subway & Dusty Projects
Subway projects may need internal circulation air conditioning due to heavy dust.
Coastal Outdoor Projects
Coastal projects may need corrosion-resistant material discussion (304 SS).

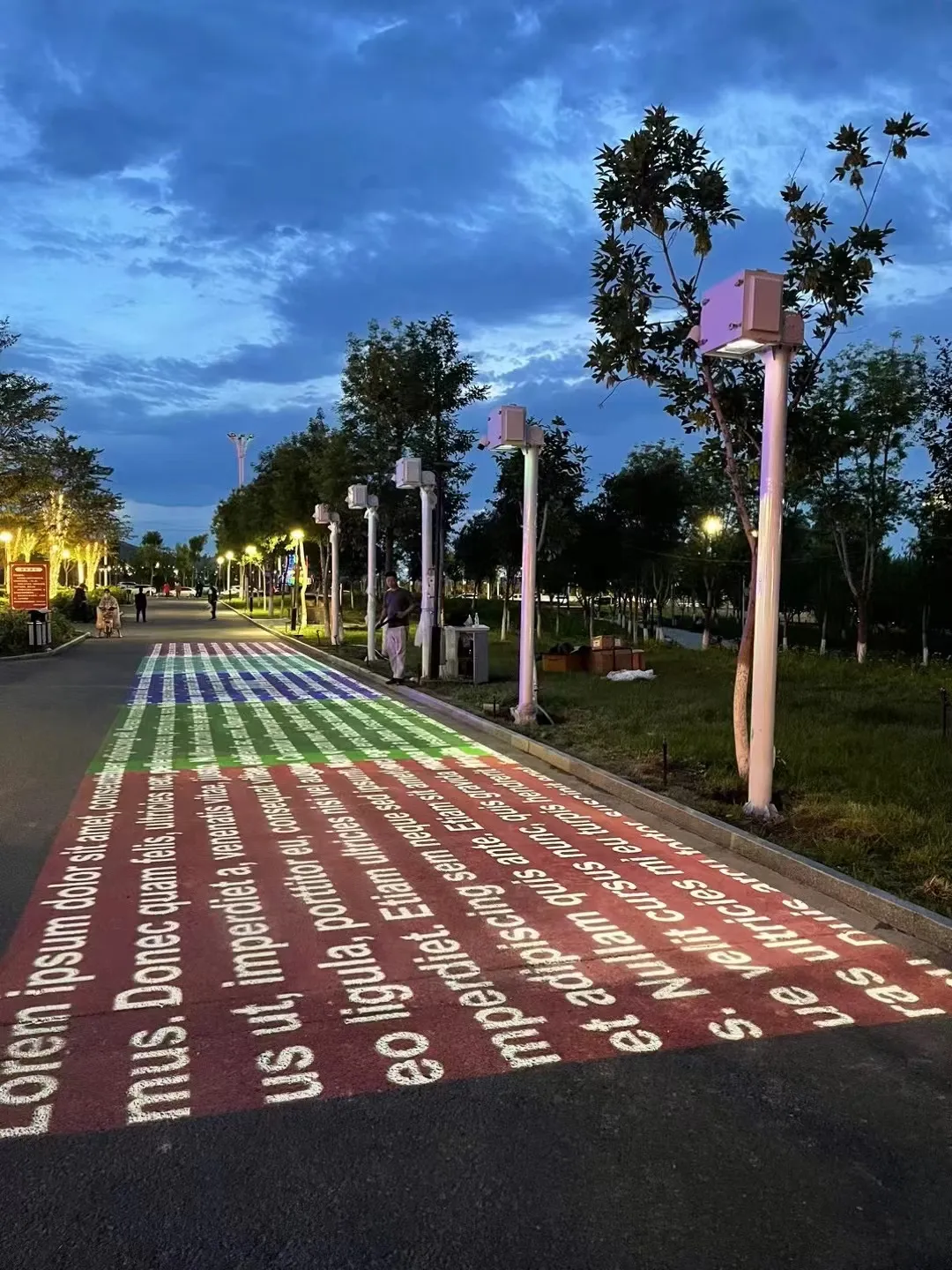

Commercial Plaza Projection
Long-hour projection requiring reliable fan cooling and remote monitoring.
Simple Rain Cover vs Waterproof Projector Enclosure
Why a DIY approach increases downtime and maintenance costs.
| Feature | Simple Rain Cover / Metal Box | Our Waterproof Enclosure |
|---|---|---|
| Waterproof Sealing | Basic drip protection, fails in heavy rain. | IP65 rated, multi-layer sealing. |
| Cooling & Heating | None, or basic fan causing dust entry. | Fresh air or AC, automated logic based on temp. |
| Condensation Control | Lens fogs easily during temperature drops. | Internal blowing device and heating module. |
| Filtration | Exposed to mosquitoes and dust. | F6 medium-efficiency air filter. |
| Installation Fit | One-size-fits-all, often blocks airflow. | Customized to projector model and cabinet drawing. |
Factory Capabilities & Trust
Buyers can review factory videos, exhibition materials, and project case photos before sending project specifications.

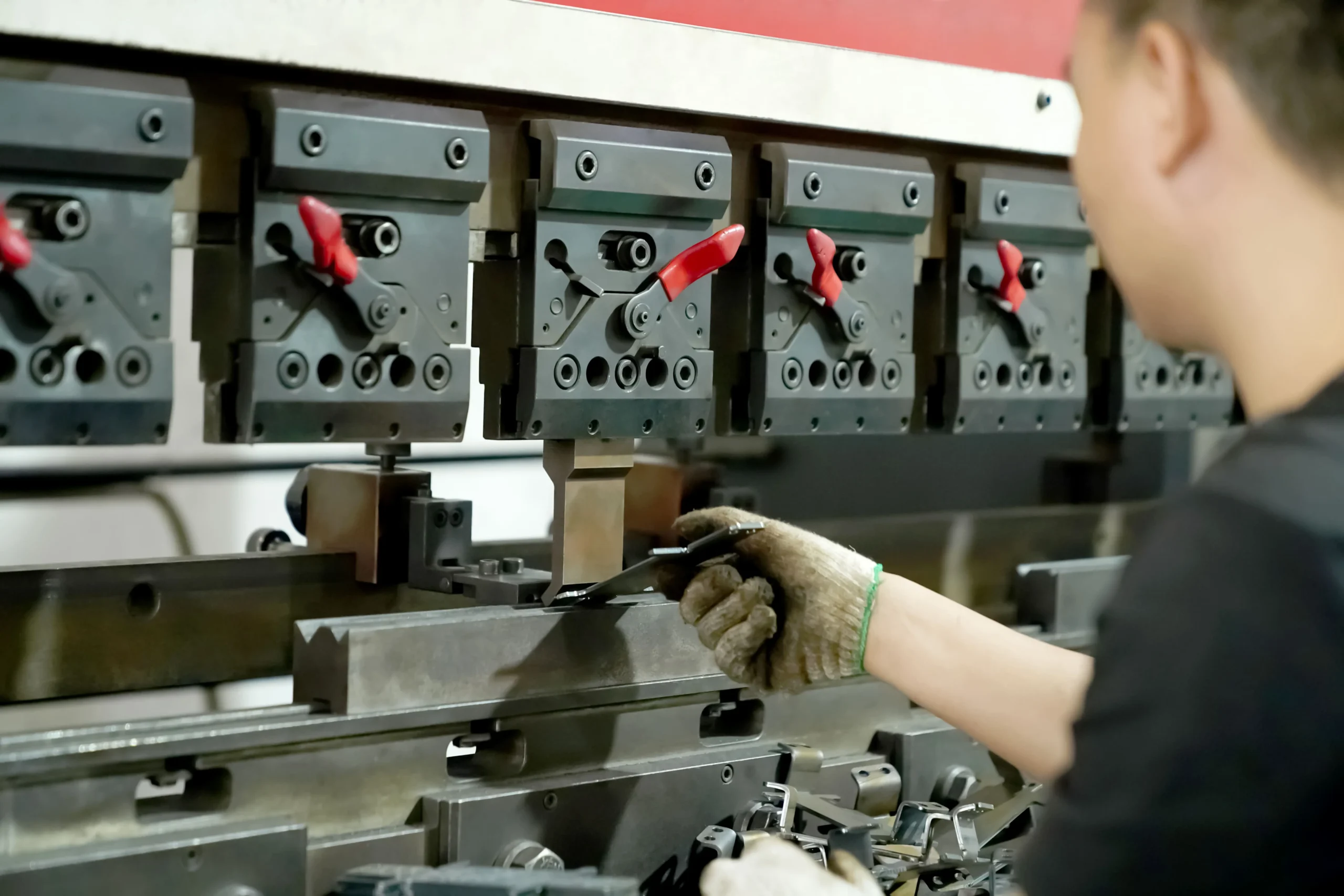

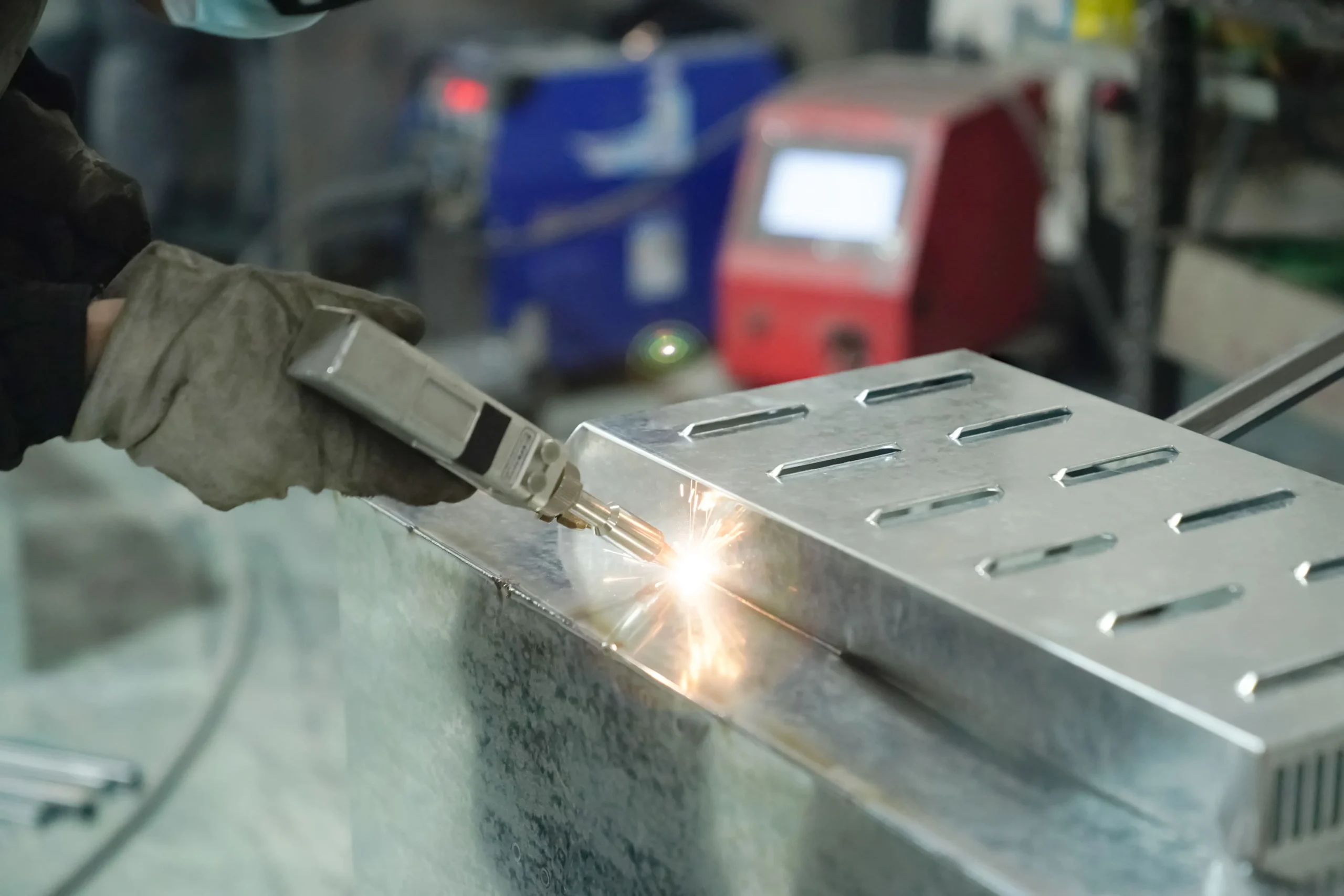

Sheet Metal Processing Capability
Factory video helps buyers review the production environment and enclosure assembly details.
8 Offline Exhibition Materials
Demonstrates our self-developed product structure and industry presence. Learn more.
Engineering Project Cases
Real product photos confirm our experience in outdoor network cabinet and projector waterproof case production. Certification documents are available on request.
How to Order a Custom Enclosure
A structured process to ensure perfect fit and performance.
Send projector model
Share site photos
Confirm material & size
Choose cooling method
Review cabinet drawing
Discuss sample approval
Request a quote
Frequently Asked Questions
What is the difference between waterproof projector enclosure and outdoor projector housing?
Can the enclosure be customized for different projector models?
What materials are available?
What is internal circulation air conditioning?
Can the enclosure reduce fog or frost on the projection window?
What information is needed for a quote?
Send Project Specs
Ready to discuss your project? Provide your projector model, site photos, and installation method. We will review the enclosure dimensions and cooling options with you.
