Ceiling Mount Projector Enclosure for Fixed Engineering Projects

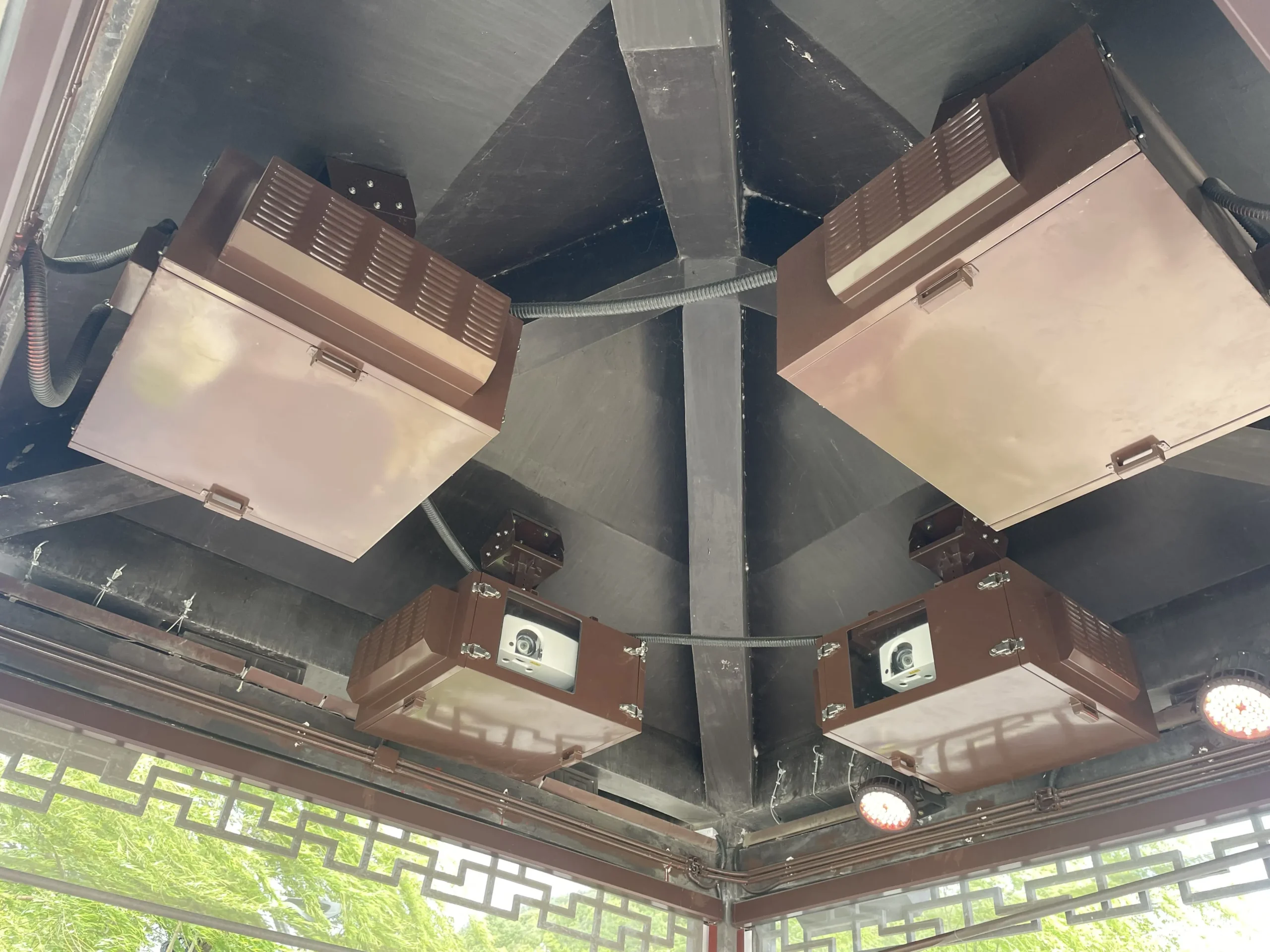

Designed for fixed projection projects requiring ceiling-mounted installation, a ceiling-mounted projector enclosure protects your AV equipment in demanding environments. Whether installed on a truss, steel beam, or outdoor canopy, these enclosures solve challenges related to limited ceiling space, heat buildup, and lens alignment.
Unlike standard mounts, a custom outdoor projector enclosure or waterproof projector housing integrates cooling, humidity control, and precise mounting holes tailored to your ceiling structure.
IP65 Waterproof
Custom Sheet Metal
Intelligent Climate Control Enclosures
Engineered for extreme environments. Featuring automated heating and cooling modules, crafted from premium stainless steel and galvanized plate to protect your projection investments globally.
Single-unit Air-Cooled
16A or 10A multifunctional socket reserved
- Auto-Cooling ≥ 35°C
- Auto-Heating ≤ 5°C

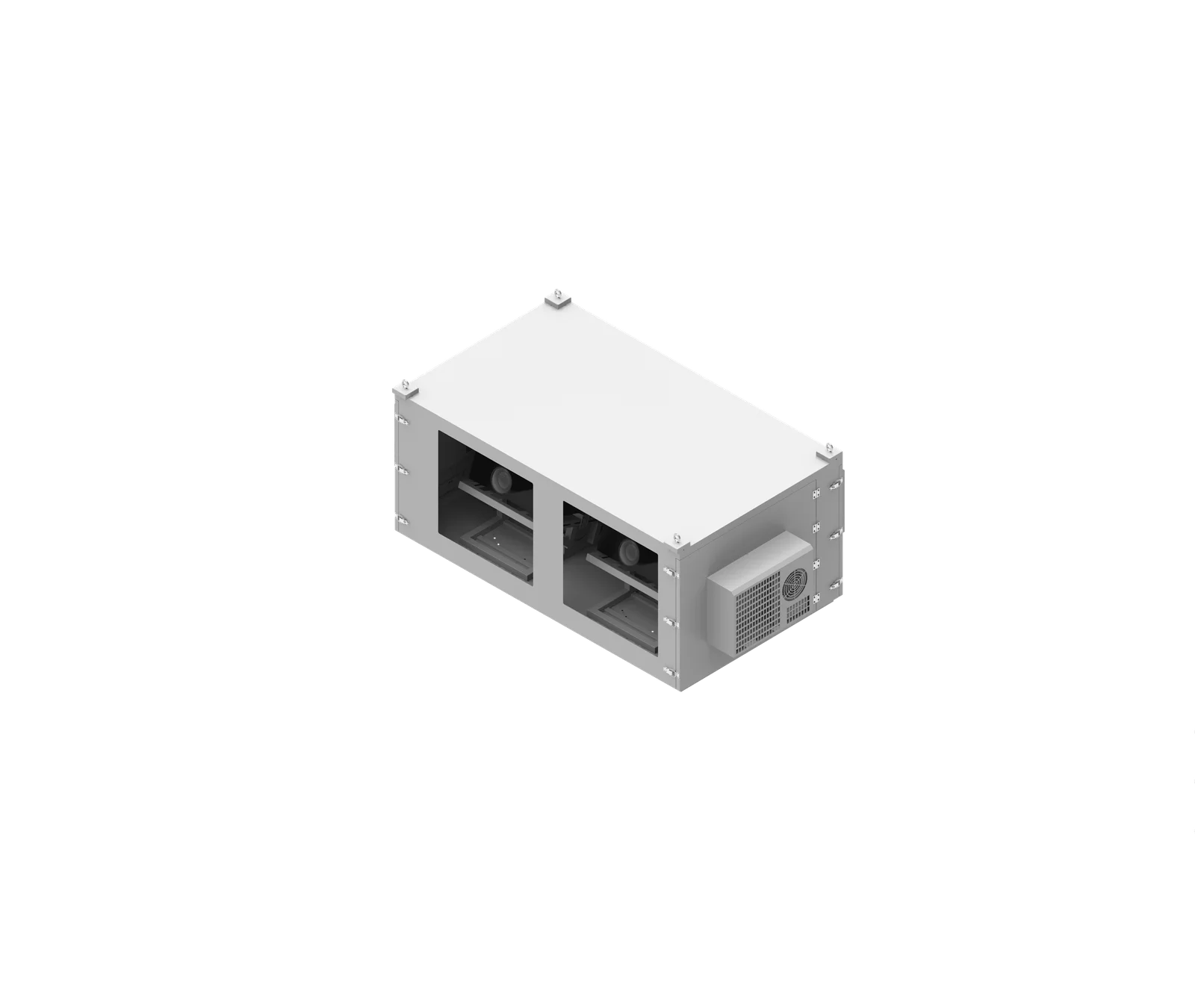

Dual-Unit Air Conditioner
F6 medium efficiency air filter, breathable and efficient, dustproof, anti-mosquito function
- Galvanized Plate Build
- Smart Humidity Control
Dual-unit air-cooled
Waterproof certification up to IP65
- 201 Stainless Steel
- Anti-Condensation Tech
Air-Cooled with Air Conditioning
Fully customizable dimensions and materials to perfectly fit high-lumen commercial projectors.
- Custom Material Sourcing
- Bespoke Dimensions
Single-unit air conditioner

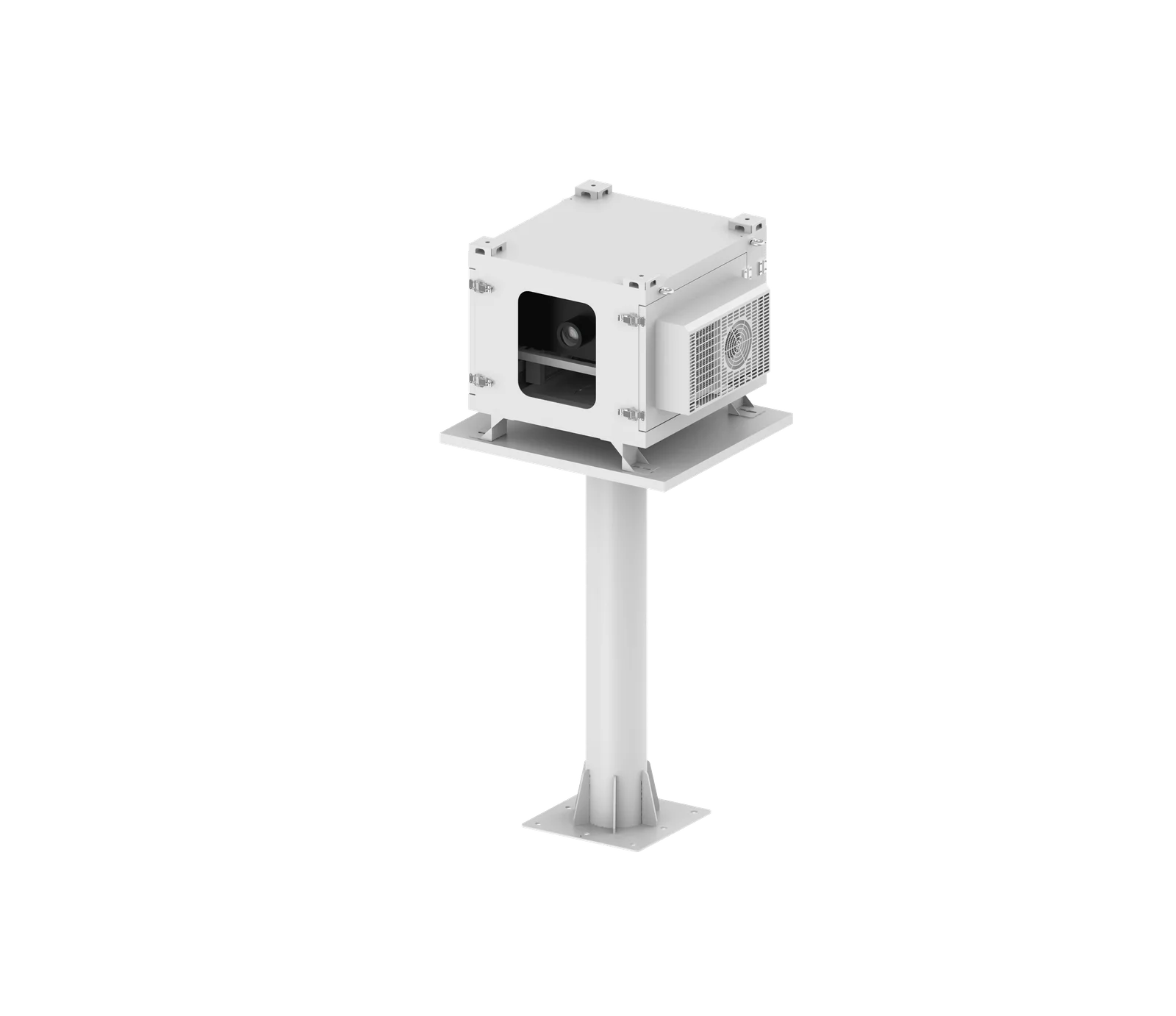

IP-rated waterproof sealing with ultra-clear optical glass for zero projection distortion.
- High-Transmittance Glass
- Heavy Rain Protection

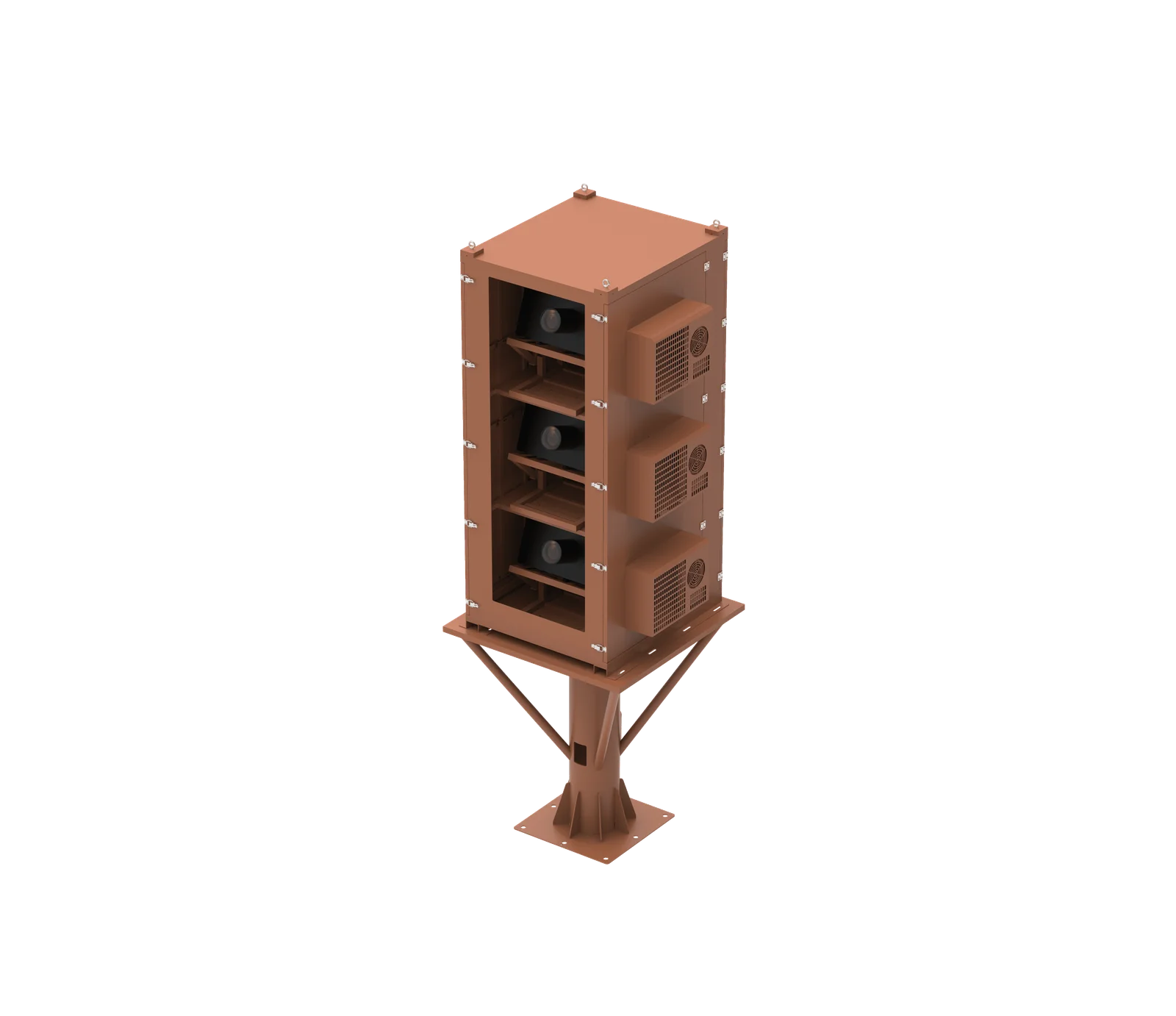

Three-unit air conditioner
The internal circulation system is usually used in sandy and dusty environments with more water vapor, subway projects,
- Dual-Fan Active Cooling
- Precision Thermostat
Four-unit air conditioner
Heating module, temperature 85% heating start,warming to 10 °C humidity 75% heating stop.
- Minimalist Aesthetics
- Vandal-Resistant Lock
Side-mounted air conditioner
internal blowing device to ensure that the surface of the projection port is not frost fog;
- Full Climate Control
- Multi-Material Options
Custom dimensions and materials available upon request.
What is a Ceiling Mount Projector Enclosure?

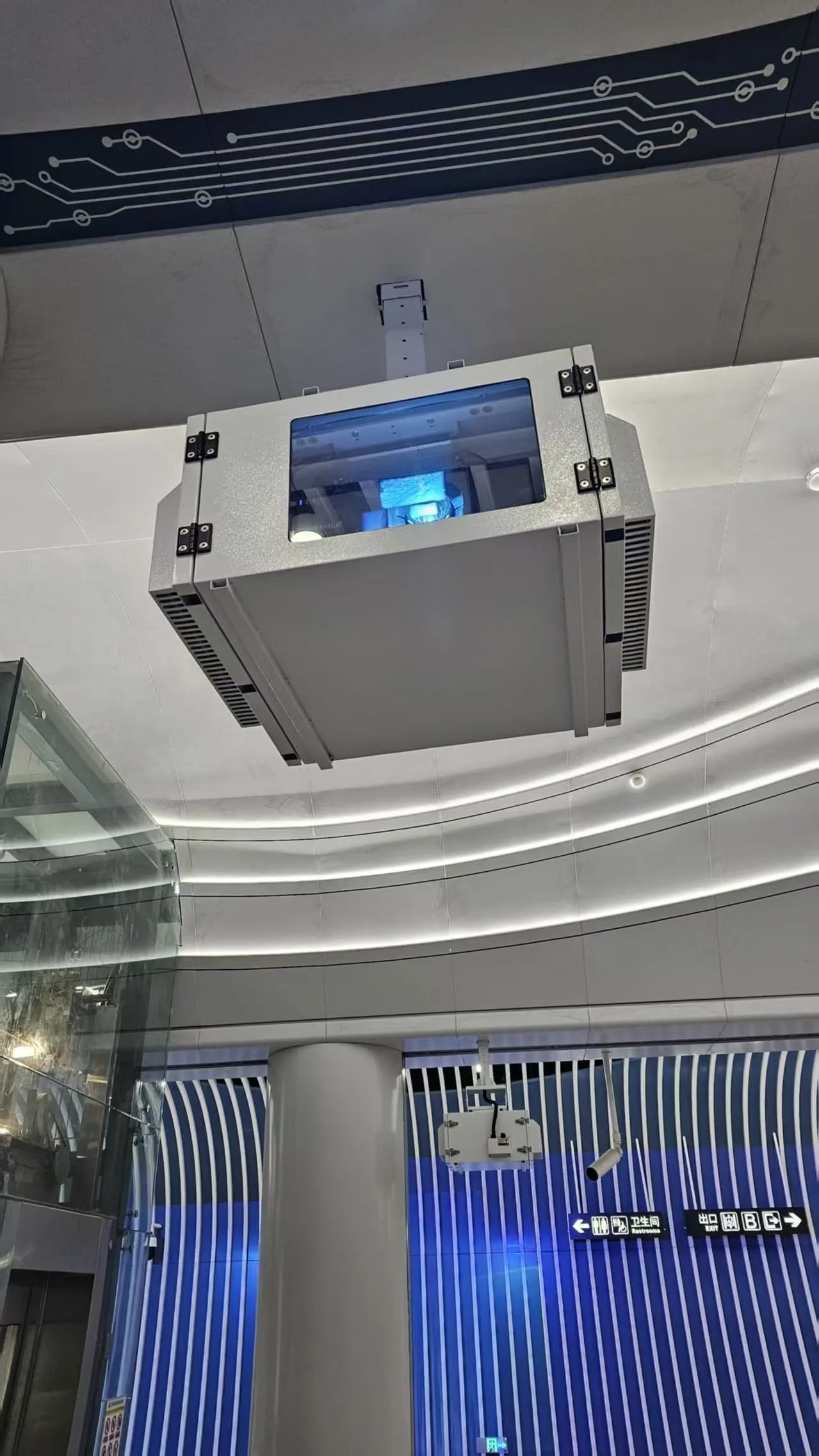

A Ceiling Mount Projector Enclosure is a specialized protective cabinet engineered for overhead installations. Unlike a simple rain cover or standard ceiling projector mount, it provides a fully sealed or climate-controlled environment for projectors operating in challenging locations such as exhibition halls, commercial ceilings, or semi-outdoor canopies.
- Material & Sealing: Constructed from 201/304 stainless steel or galvanized plate, achieving up to IP65 waterproof certification for reliable protection against moisture and dust.
- Optical Clarity: Equipped with optical ultra-white glass at the projection port, offering 95% light transmittance to maintain image brightness and sharpness.
- Structural Adaptation: Ceiling-mounted bracket design and mounting holes are reviewed according to your installation drawing, ceiling frame, or truss structure before production.
Verified Manufacturing Capability
Review our production environment and project cases before sending specifications.
Sheet Metal Processing
box temperature is higher than the preset value (35 ℃) ≥ 2 ℃, the fan cooling system to start, below the preset value of ≤ 2 ℃ fan stops working.

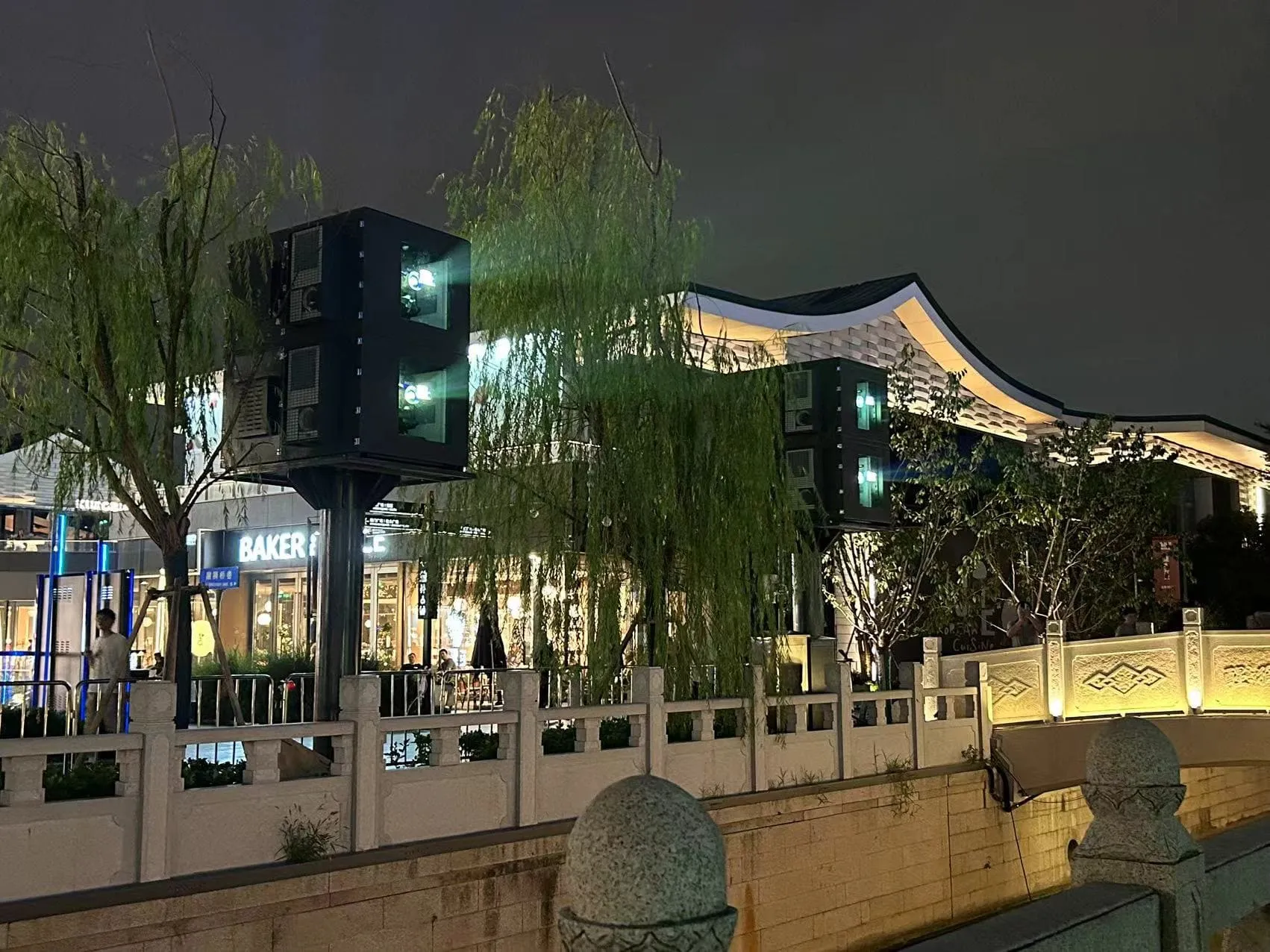

Engineering Cases
The internal circulation system is usually used in sandy and dusty environments with more water vapor, subway projects,
Industry Presence
Heating module, temperature ≤ 5 ℃ humidity ≥ 85% heating start, warming to 10 ℃ humidity ≤ 75% heating stop.
Solving On-Site Challenges for Overhead Projection
Overhead projection projects face unique constraints. Standard mounts cannot address environmental hazards or structural limitations.
Ceiling Space Limits
Constraint: Truss or ceiling structures often restrict enclosure dimensions.
Solution: Custom sheet metal enclosures are designed based on your specific ceiling drawing and projector model.
Lens Alignment
Constraint: Misalignment requires on-site bracket modifications.
Solution: We review the lens position and projection angle against the optical window alignment before production.
Mounting Holes Mismatch
Constraint: Standard boxes don't fit specific steel beams.
Solution: Mounting bracket and holes match your ceiling frame, avoiding on-site drilling.
Heat Buildup at Ceilings
Constraint: High-lumen projectors overheat in enclosed high spaces.
Solution: Fresh air systems or internal circulation air conditioning configured based on site humidity and heat load.
Condensation & Fogging
Constraint: Temperature drops cause fog on the projection window.
Solution: Built-in heating, dehumidification, and an internal blowing device reduce frost and fog.
Maintenance Access
Constraint: High-altitude servicing is difficult and dangerous.
Solution: Maintenance door direction and cable entry are pre-planned to ensure clearance for field service.
Ceiling Mount Enclosure Configurations
IP65 Waterproof Enclosure
Suitable for semi-outdoor canopies. Features strict waterproof sealing. Limits dust and water vapor ingress, protecting circuit boards.
Air-Cooled Enclosure
Ideal for commercial ceilings. Uses a fresh air system with F6 filtration. Prevents heat buildup while filtering dust and mosquitoes.

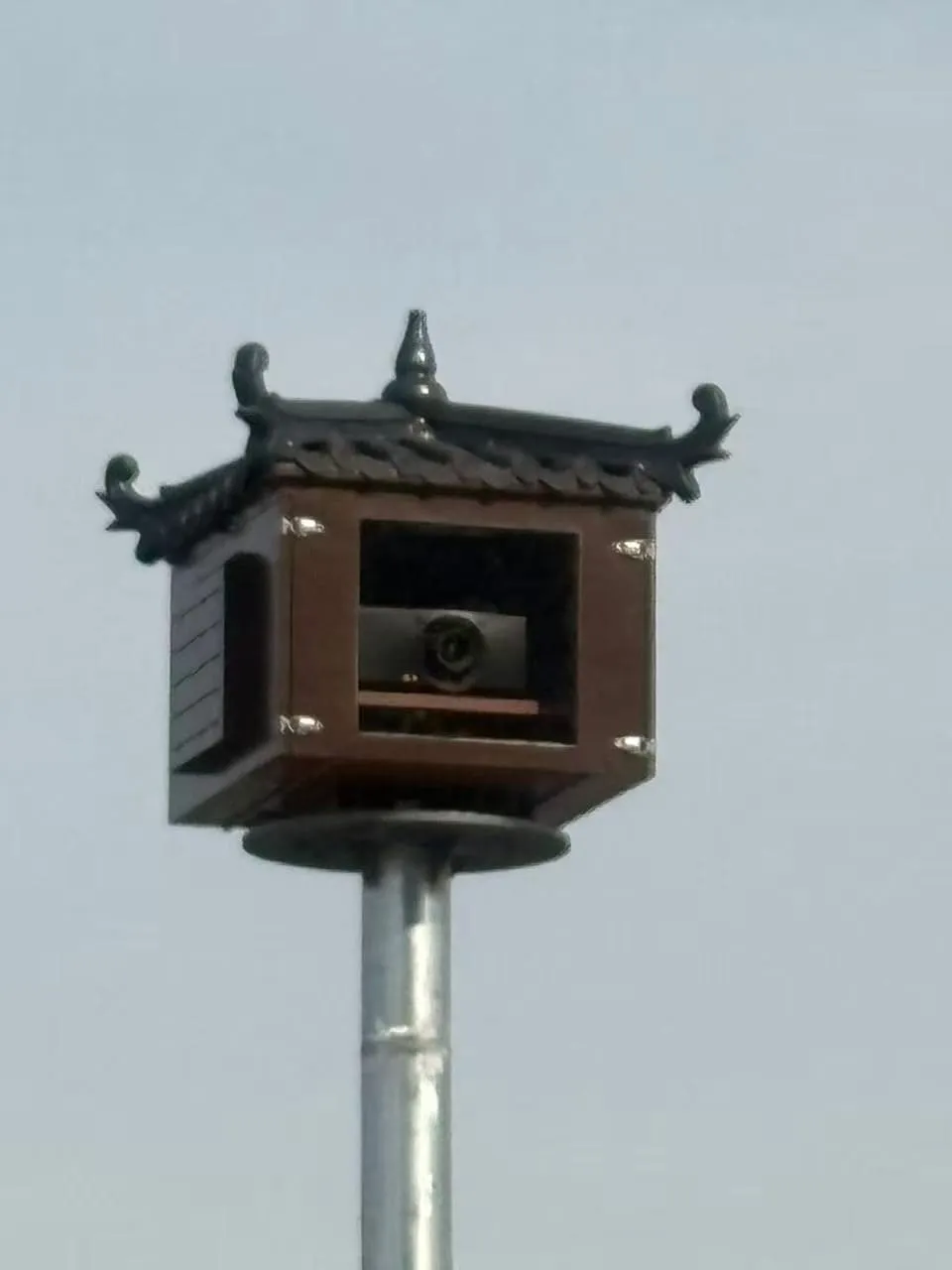

Internal-Circulation AC
For high-humidity or highly dusty environments. Completely sealed with AC cooling. No fan outlet or air inlet, isolating the projector.
Anti-Condensation Model
For scenic night-tours with temperature drops. Integrates heating and an internal blowing device to reduce frost on the optical glass.
Also available: Remote-Control, High-Lumen, and Non-Standard Custom Sheet Metal Enclosures.
Review Enclosure OptionsEngineered for Overhead Reliability
Every component is designed to ensure stable projection, easy maintenance, and structural safety when suspended from ceilings.
1 Robust Housing & Optics
Available in 201/304 stainless steel or galvanized plate depending on site corrosion levels. The projection port uses optical ultra-white glass (95% light transmittance) to ensure image fidelity.
2 Internal Configuration
Includes an internal bracket for precise projector positioning, a reserved 16A or 10A multifunctional socket, and a dedicated maintenance door designed for easy field service at height.
3 Environmental Protection
Equipped with F6 medium-efficiency air filters for dustproof and anti-mosquito filtration, and built-in temperature control probes for climate management.
Custom Bracket & Mounting Hole Design
A ceiling-mounted installation requires precise structural coordination. The mounting bracket must be reviewed with your installation drawing to ensure it fits the ceiling frame, truss, or steel beam.
- Mounting Holes: Customized to match your support structure, avoiding modifications.
- Cable Entry: Direction matches ceiling wiring or cable trays.
- Safety: Load, vibration, and structural safety should be reviewed by the project engineering team according to local site requirements.
Intelligent Climate Control Logic
Ceiling spaces trap heat. High-lumen projectors require strict temperature and humidity management to prevent failure or brightness loss.
Cooling Logic
Fan cooling automatically starts when the box temperature is higher than the preset value (e.g., 35°C) by ≥ 2°C.
The fan stops working when the temperature drops below the preset value by ≤ 2°C, conserving energy and reducing dust intake.
Heating & Dehumidification
Heating starts when temperature is ≤ 5°C and humidity is ≥ 85% to prevent condensation.
Heating stops when the internal temperature reaches 10°C and humidity drops to ≤ 75%.
Anti-Fog System
An internal blowing device is configured to circulate air specifically across the projection window, significantly reducing frost and fog during large temperature shifts in scenic night-tour projects.
Learn more about our Temperature Control Board integration for customized cooling methods (Fresh air, AC, or Internal Circulation).
Remote Monitoring for Hard-to-Reach Ceilings
Ceiling-mounted enclosures are difficult to access. Remote monitoring helps project teams check enclosure status and respond earlier when ceiling space humidity or internal temperature changes.
Data communication encryption is supported. Options can be discussed based on project requirements.

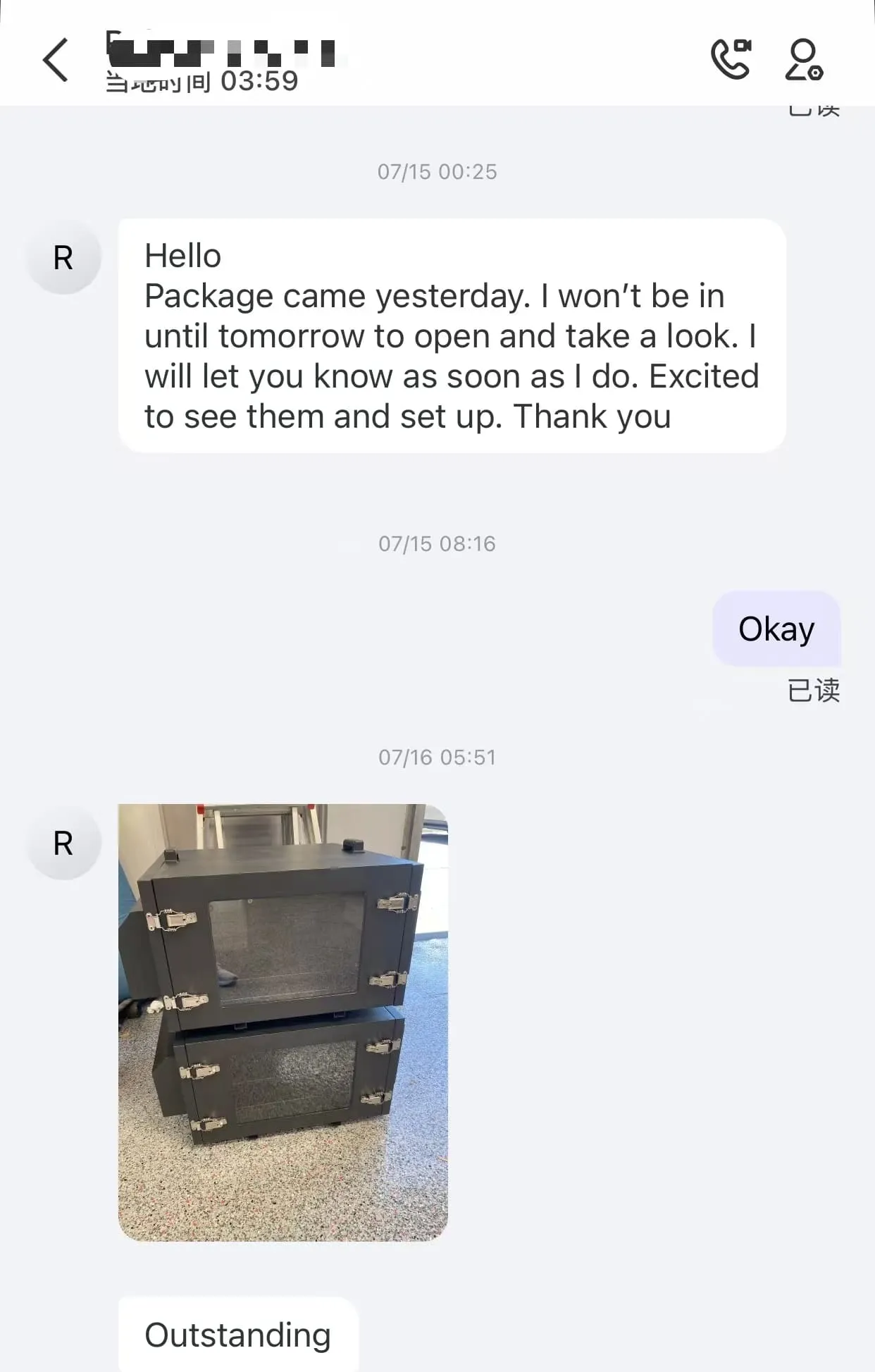

Real Feedback from Global Projects
Authentic chat records and field updates from our partners, showcasing how our enclosures perform in diverse climates and engineering environments.

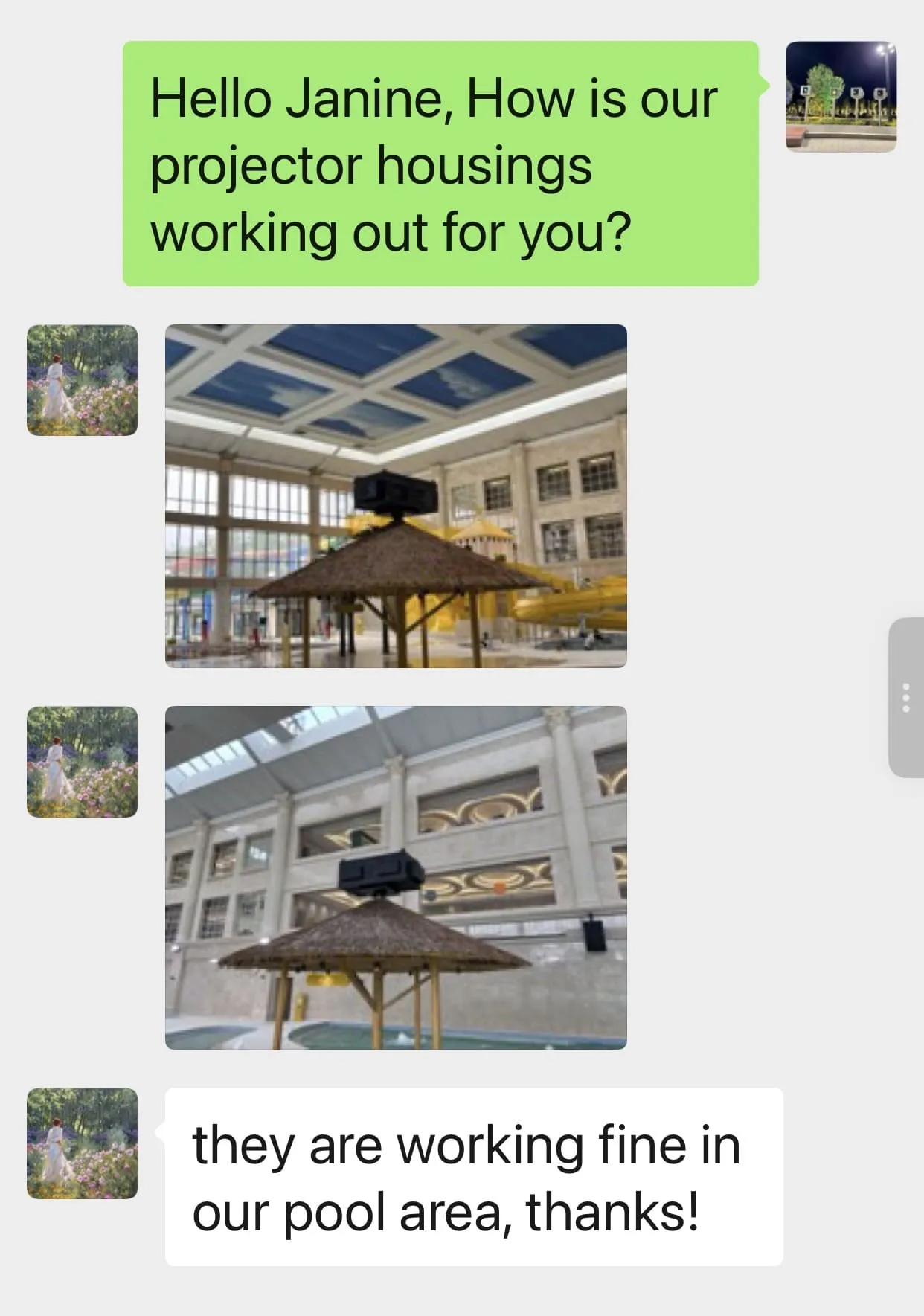

Middle East Integrator

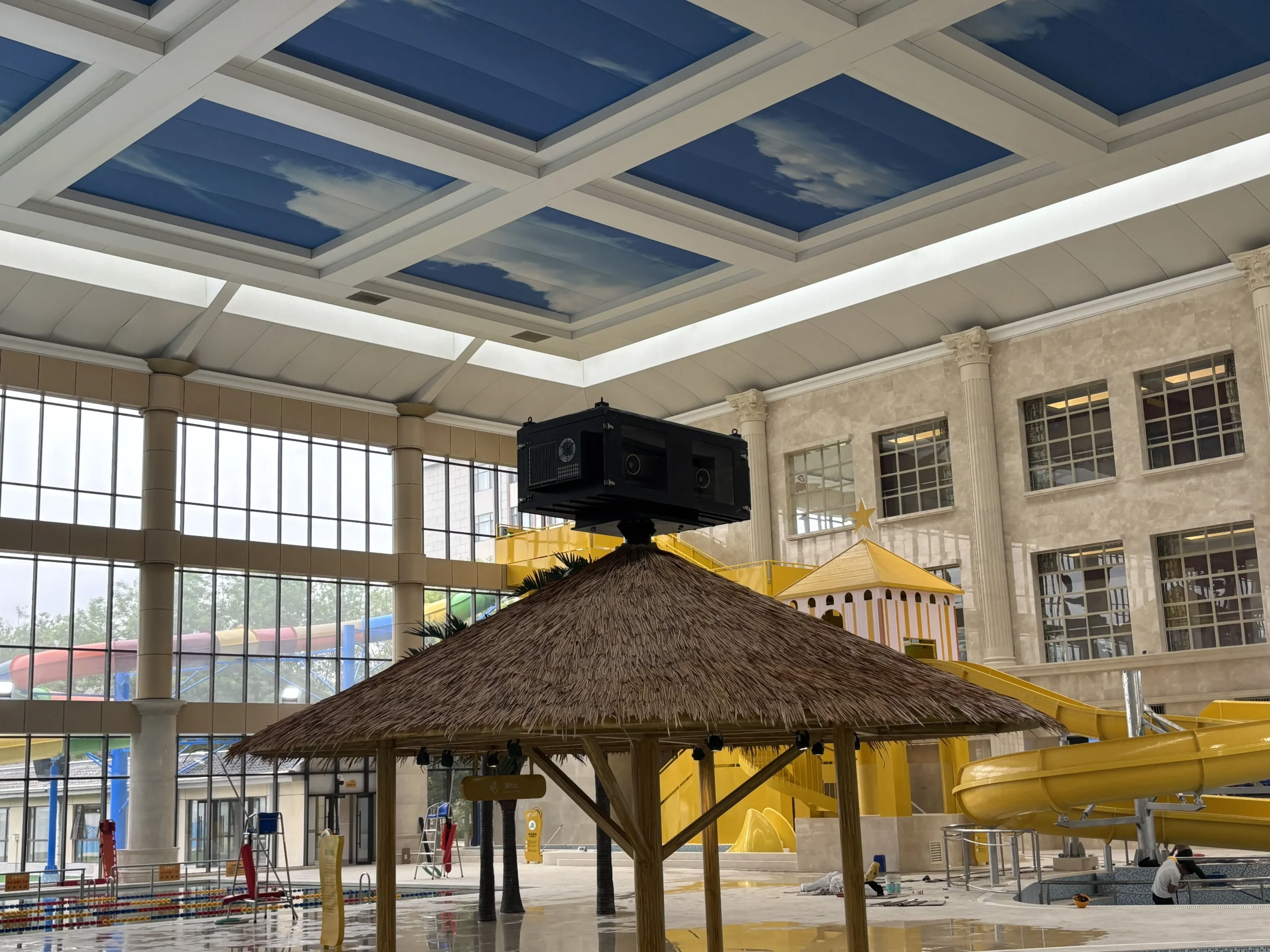

The fan cooling system starts exactly at 35°C . The projector housings are running flawlessly in the humid pool environment.

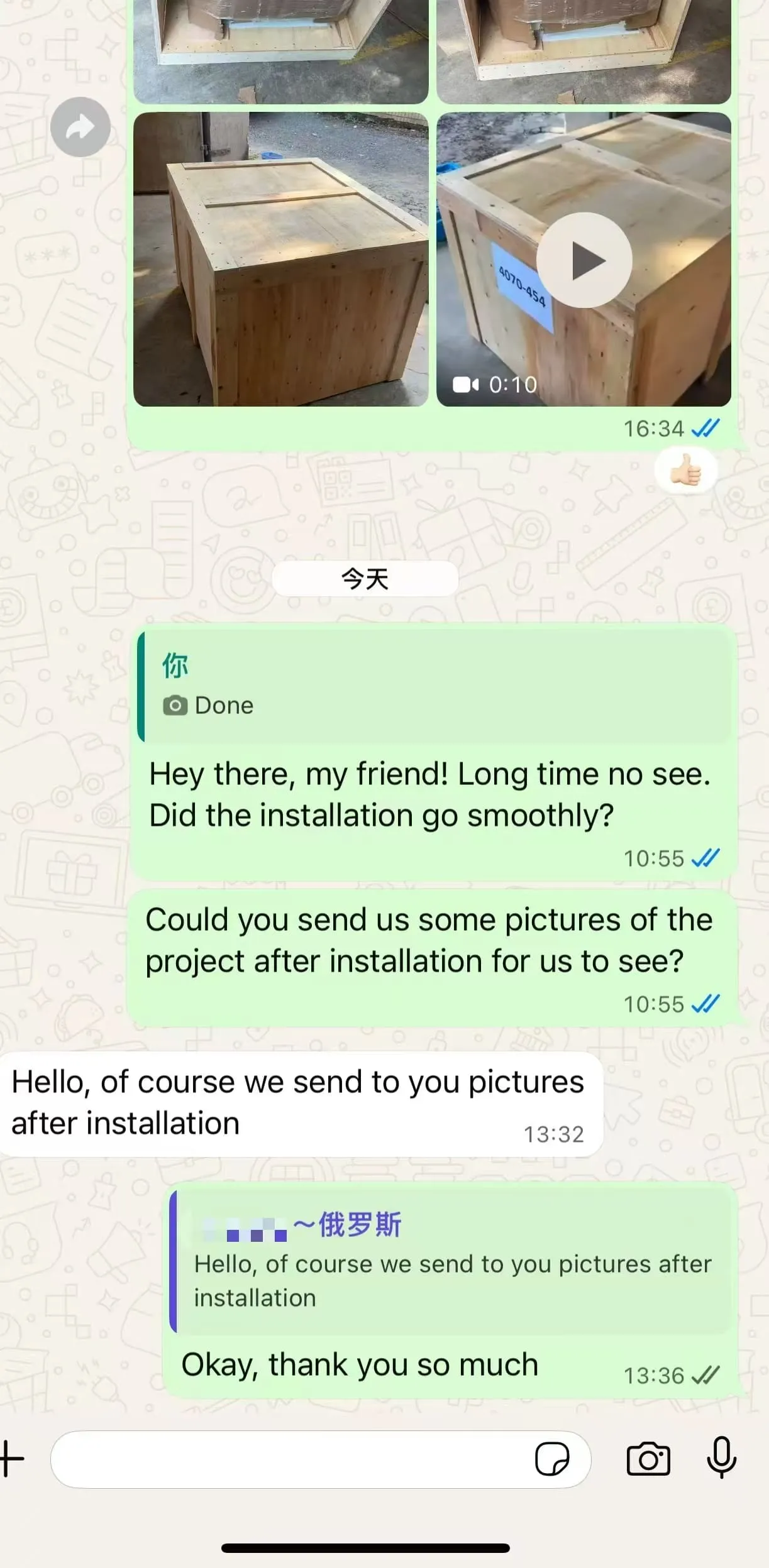

Russian Partner
"Heating module kicked in perfectly at 5℃. No condensation at all. Excellent 304 stainless steel build quality."
UK Integrator
"Just finished the scenic night-tour installation. The waterproof sealing is top-notch. Will order 15 more units next month."
US Distributor
"The custom bracket design made mounting on the steel beams so easy. Great communication from the ShiRui engineering team!"
Standard Mount vs. Custom Enclosure
Why simple brackets fail in complex ceiling environments.
| Feature | Standard Ceiling Mount | Ceiling Mount Enclosure |
|---|---|---|
| Waterproof & Dust Sealing | None (Open air) | Up to IP65, F6 Filtration |
| Cooling & Condensation | Relies on room ambient | Active cooling, heating, anti-fog |
| Mounting Holes & Bracket | Fixed standard VESA/universal | Customized to ceiling truss/beam |
| Remote Monitoring | No | Temp, Humidity, IoT integration |
| Maintenance Access | Must unmount projector | Custom maintenance door direction |
Customization & Inquiry Process
Share Project Info
Send your projector model, ceiling structure, and site photos.
Confirm Specs
Choose cooling method, enclosure material, and confirm enclosure dimensions.
Review Design
Review bracket design, mounting holes, lens position, and cable entry direction.
Quote & Order
Discuss sample approval or project order based on the finalized cabinet drawing.
Frequently Asked Questions
What is the difference between a ceiling-mounted projector enclosure and a standard projector mount?
What ceiling information should I provide before quotation?
What cooling options are available for enclosed ceiling spaces?
Can the enclosure reduce fog or frost on the projection window?
Can the bracket and mounting holes be customized?
Ready to Discuss Your Project?
To get an accurate quote and design proposal, please send us your project specifications. We will review the lens alignment, bracket design, and cooling requirements.
