Project-Ready Outdoor Projector Enclosure
Designed for fixed outdoor projection projects, this is not a simple rain cover. Every waterproof projector enclosure is configured based on your specific projector model, site conditions, cooling method, and installation drawing. We ensure the outdoor projector housing matches your lens alignment, cable entry, and maintenance access requirements before production.
Proven in Extreme Environments Worldwide
From sub-zero ski resorts to humid tropical theme parks, ShiRui intelligent waterproof enclosures ensure continuous, flawless projection. Explore our featured outdoor applications.

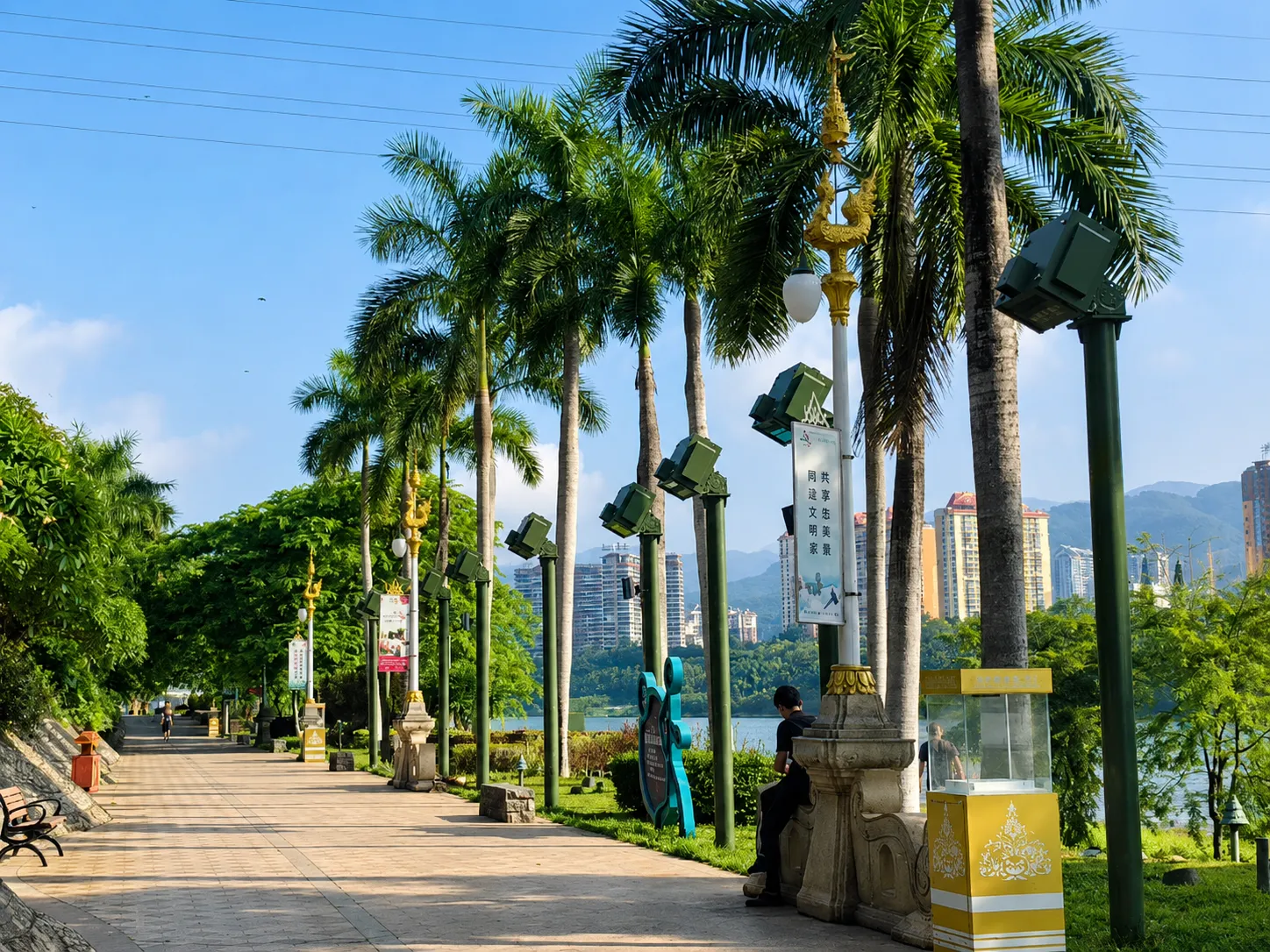

Theme Park Night Show
Climate Controlled Outdoor Projector Enclosure, IP65 Waterproof Dustproof Protective Housing for Architectural Projection
Architectural 3D Mapping
Custom Outdoor Projector Housing with Air Cooling System, Anti-Condensation Projector Enclosure for Outdoor Installation
Cultural Tourism Area
Stainless Steel Weatherproof Projector Enclosure, Anti-corrosion Constant Temp Housing for Scenic Outdoor Projection

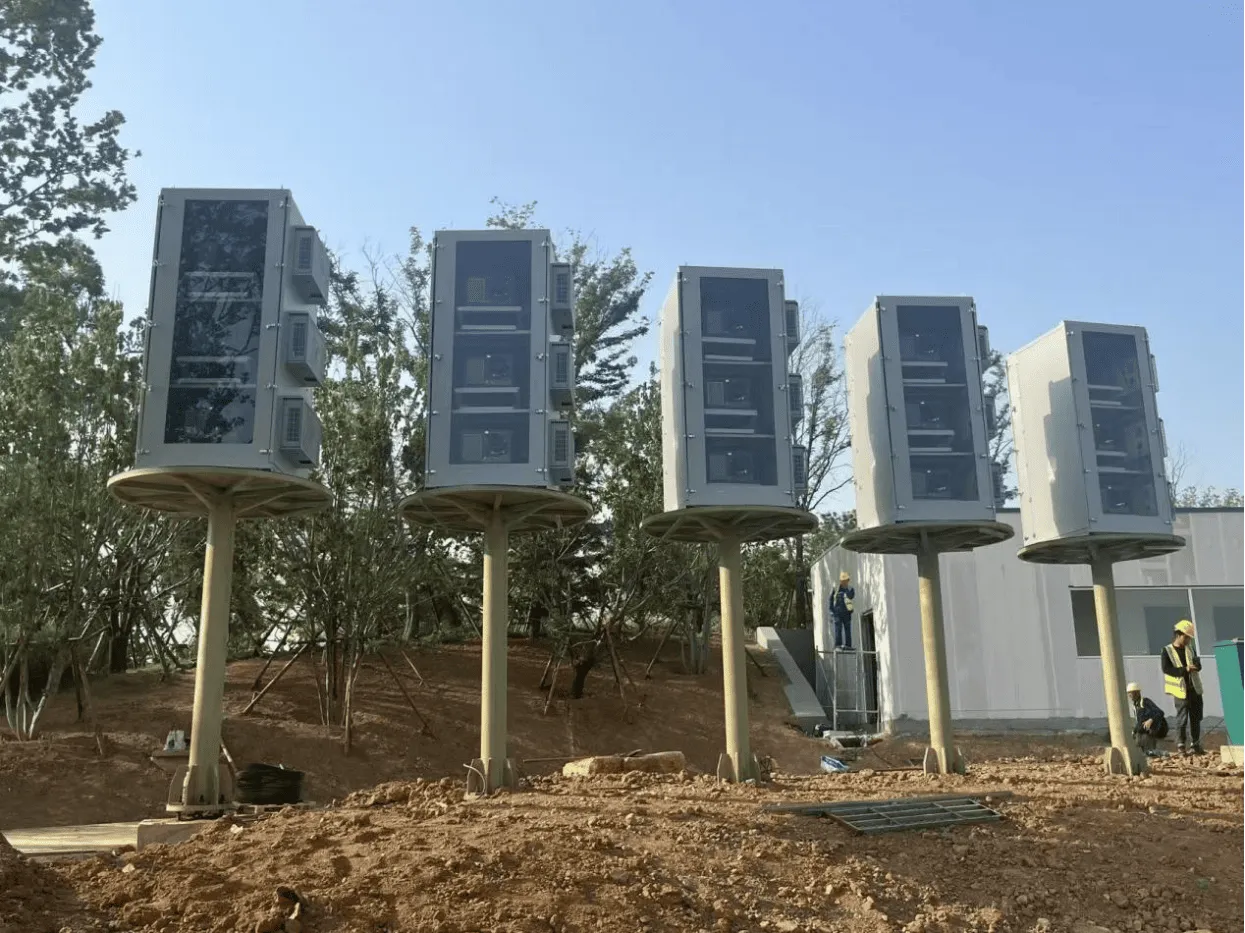

Stadium Light Show
Multi-unit Stackable Outdoor Projector Cabinet, Projector Enclosure for Light Show & Projection Mapping
Interactive Water Show
Outdoor Projector Enclosure for Video Mapping, All-weather Protective Housing for Outdoor Projector
Bridge Illumination
IP65 Waterproof Outdoor Projector Protective Housing
Commercial Plaza
Long-term Protection for Outdoor Projectors, Resist Rain, High Temperature & Condensation
Ski Resort Event
Top Choice for Permanent Outdoor Installation | Heavy-duty Projector Enclosure
Customized solutions available in 201/304 stainless steel and galvanized plate.
Precision Sheet Metal Fabrication
In-house laser cutting, CNC bending, welding, surface finishing and assembly for custom metal enclosures, equipment cabinets and project-specific sheet metal products.
Industrial-Grade Materials & Custom Fabrication
We manufacture custom sheet metal enclosures, cabinets and structural components based on customer drawings, equipment dimensions and project requirements. Material options include galvanized steel, aluminum alloy, and 201 or 304 stainless steel.
- Exact tolerances for IP-rated waterproof sealing.
- Structural integrity to support intelligent cooling & heating modules.
Precision Laser Cutting
Achieving micro-millimeter accuracy for complex ventilation slots, custom I/O panels, and seamless enclosure bodies.
CNC Bending
Automated bending technology ensures consistent angles and perfectly aligned edges, critical for maintaining waterproof integrity.
Seamless Welding
High-strength automated and manual welding processes create durable, impenetrable joints designed to withstand harsh outdoor elements.
Premium Coating
Advanced surface treatments and anti-corrosion powder coatings ensure long-lasting aesthetics and protection against rust and UV degradation.
Project Matching Snapshot
Send us your project details, and our sheet metal engineering team will review the configuration before manufacturing.
1 What You Provide
-
Projector Model Brand, dimensions, lens position
-
Site Photos Installation method, maintenance access
-
Environment Data Temperature range, humidity, dust levels
-
Cabinet Drawing (Optional) Mounting holes, bracket design
Engineering Review & Configuration Alignment
2 What We Configure
-
Housing Dimensions Internal bracket & precise lens alignment
-
Material & Cooling 201/304 SS, fresh air or AC cooling logic
-
Structural Details Mounting holes, cable entry, maintenance door
-
Project Order Sample approval to mass production stability
From Outdoor Risk to Enclosure Configuration
Outdoor projectors face uncontrolled weather. Waterproof sealing alone is not enough. We configure the enclosure structure to mitigate specific site risks.
Rain & Moisture Exposure
For fixed building projection, rain can penetrate standard casings. Simple covers leave wiring vulnerable.
Heat Buildup
High-lumen projectors generate significant heat. If air outlet is blocked by the enclosure wall, thermal shutdown occurs.
Internal Condensation
In water screen or coastal projects, temperature drops cause fog on the projection window, affecting optical parts.
Dust & Insects
Desert or park environments expose equipment to sand and mosquitoes, clogging internal fans.
Site Installation Limits
Pole-mounted or ceiling-mounted projects require exact bracket alignment. Generic boxes cause on-site changes.
Remote Site Maintenance
Scenic night-tour projects are often spread out. Manual checking of temperature and humidity is inefficient.
Engineering Structure Breakdown
Every component is selected to protect the projector and simplify field maintenance. We design the outdoor projector box based on your cabinet drawing.
Sheet Metal Body
201 stainless steel, 304 stainless steel, or galvanized plate depending on corrosion requirements.
Optical Glass
Optical ultra-white glass with 95% light transmittance aligned to the projector lens.
Filtration & Power
F6 medium-efficiency air filter and reserved 10A or 16A multifunctional power socket.
Sensor Array
Temperature control probe, humidity sensor, smoke alarm, and flooding alarm integrated.
Anti-Condensation
Internal blowing device and heating module to prevent frost on the projection window.
Project Interfaces
Custom mounting holes, cable entry, internal bracket, and maintenance door direction.
Enclosure Configuration Paths
Select the thermal management path based on your projector's heat load and the outdoor environment.
Path A: Fresh Air Enclosure
Ideal for moderate climates where ambient air is sufficient for cooling.
Path B: Fresh Air + Air Conditioning
For high-lumen projectors operating in hot summer environments.
Path C: Internal-Circulation AC
Fully isolated airflow for extreme dust, high humidity, or salt spray environments.
Path D: Remote Monitoring Version
Add smart IoT monitoring to any cooling path for large-scale distributed projects.
Climate Control Logic
An outdoor projector enclosure cannot rely on waterproof sealing alone. It requires active thermal management via an industrial temperature control board to handle heat, humidity, and condensation.
Heating & Dehumidification Logic
To prevent internal condensation and anti-frost issues at the projection window, the heating module starts automatically when temperature is ≤ 5°C and humidity is ≥ 85%. Heating stops when the internal temperature reaches 10°C and humidity drops to ≤ 75%.
Fan Cooling Logic
High-lumen projectors require rapid heat dissipation. Fan cooling starts when the box temperature is higher than the preset value (e.g., 35°C) by ≥ 2°C. The fan stops working when the temperature falls below the preset value by ≤ 2°C, ensuring energy efficiency and stable operation.
Cooling Method Selection
Depending on the thermal load, the enclosure can be equipped with a fresh air system, fresh air + air conditioning, or internal circulation air conditioning. The airflow is mapped to avoid blocking the projector's native air outlet.
Installation Method Selection
Mounting holes, bracket design, and cable entry must be confirmed before production to match site structures.
Pole-Mounted
Requires review of pole diameter and bracket weight capacity. We configure rear or bottom mounting holes.
Ceiling-Mounted
Common in subways or covered outdoor areas. Requires top mounting holes and cable tray review.
Wall-Mounted
Used for building projection. Maintenance door direction must allow field service without removing the box.
Floor-Standing
Ideal for ground-level water screen projection. Bottom cable entry and flood alarms are critical.
Application-Based Enclosure Planning
Different outdoor engineering projects impose different constraints on the outdoor waterproof projector enclosure.
Building Projection & 3D Mapping
Custom Enclosure Fits All Kinds of Engineering Projectors
Focus: Lens alignment, AC cooling, wall-mount brackets.

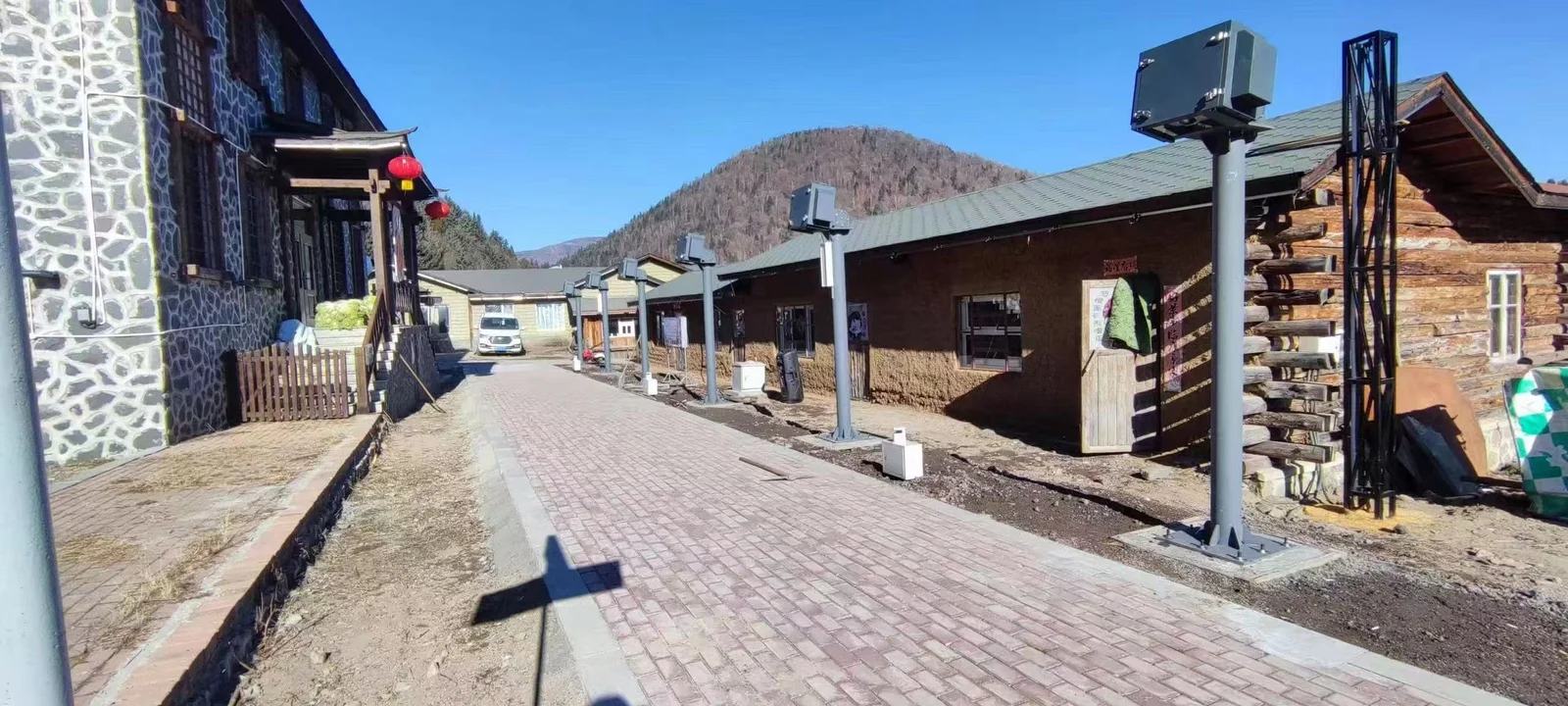

Scenic Night-Tour Projects
For Scenic Spot, Commercial District & Night Tour Light Projects
Focus: Remote IoT monitoring, F6 filter for insects.

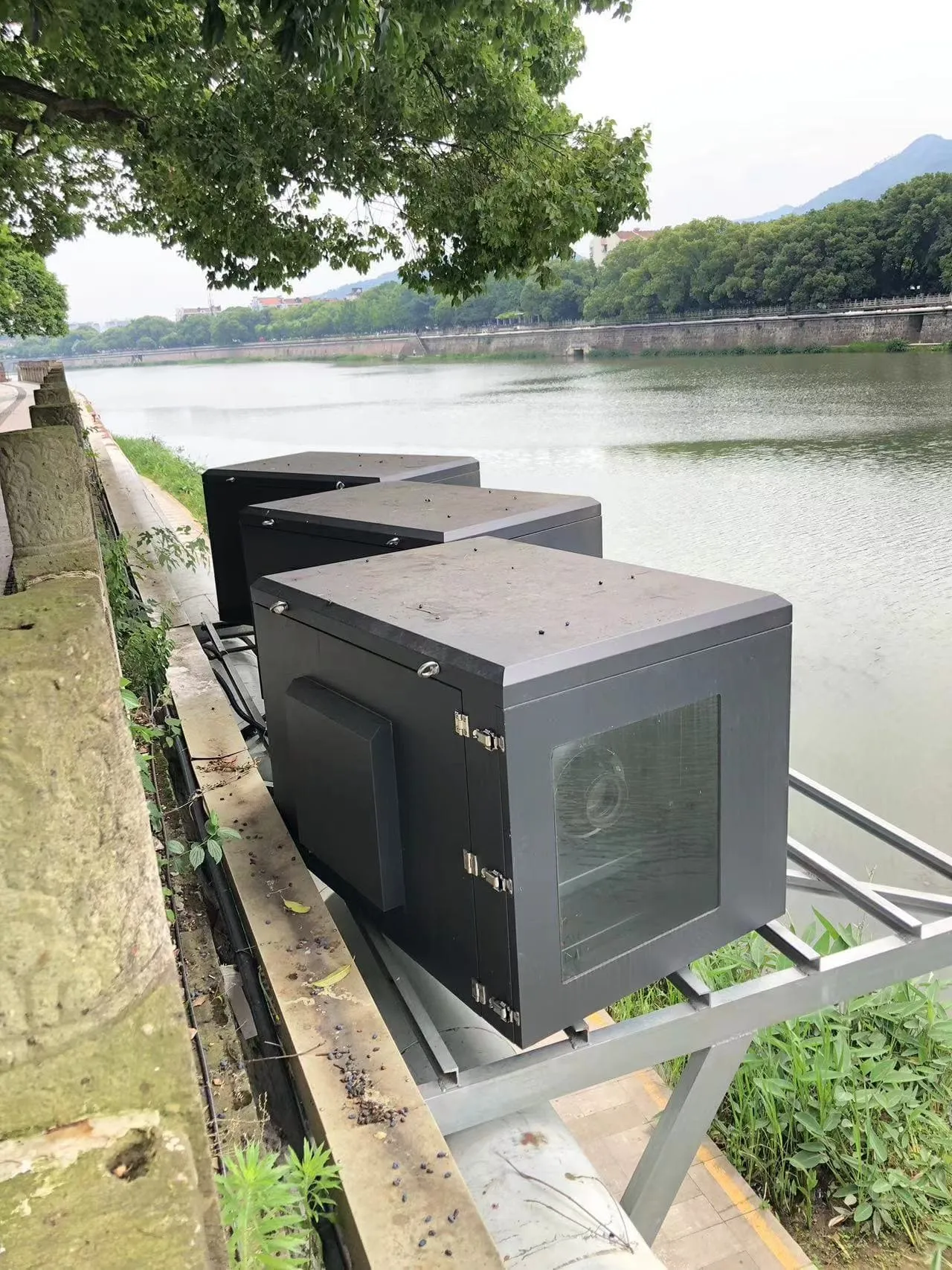

Water Screen Projection
Extreme humidity and splash risks.
Focus: Anti-condensation heating, IP65 sealing, flood alarm.
Coastal & Beach Projects
Multi-unit Stackable, Pole & Floor Mount Available
Focus: 304 stainless steel, internal circulation AC.
Desert or Dusty Sites
Projector Protection For Desert & Sandstorm Conditions
Focus: Sealed structure, heating logic, heavy-duty filtration.

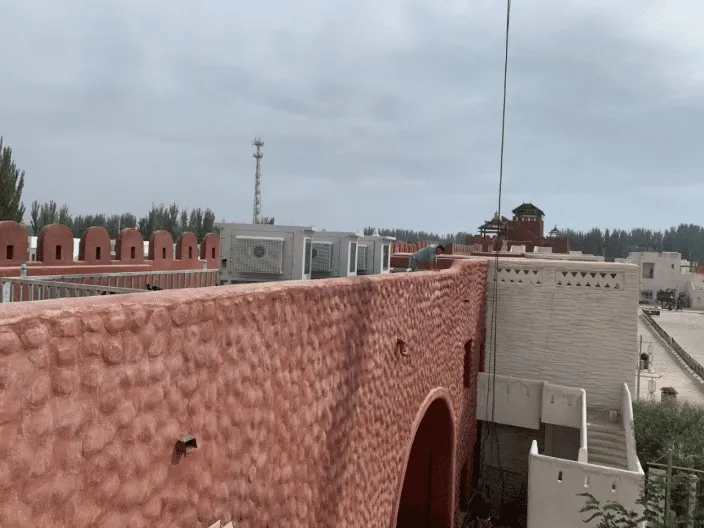

Subway & Underground
Anti-Condensation | Constant Temp | Waterproof & Dustproof
Focus: Ceiling brackets, smoke alarms, internal circulation.
DIY Cover vs Engineering Enclosure
While simple DIY covers work for temporary backyard use, commercial fixed installations require engineering-grade solutions.
| Feature | Simple DIY Cover | Retail Outdoor Box | Engineering Enclosure |
|---|---|---|---|
| Waterproof Sealing | Rain shield only | Basic silicone seals | IP65 rated with bottom cable entry protection |
| Cooling Method | Natural breeze | Small exhaust fan | Fresh air, AC, or internal circulation mapped to projector |
| Anti-Condensation | None | None | Heating module + dehumidification + internal blowing |
| Lens Alignment | Manual adjustment | Generic large window | Custom internal bracket aligned to 95% transmittance glass |
| Remote Monitoring | N/A | N/A | WiFi/Ethernet/4G via Ali Cloud IoT platform |
| Mounting Holes | DIY drilling | Standard VESA | Reviewed against cabinet drawing and site limits |
Technical Parameter Guide
Detailed specifications for our custom outdoor projector enclosures.
Verified Manufacturing Capability
Buyers can review factory videos, exhibition materials, product photos, and project case photos before sending projector models or cabinet drawings.
Review assembly workflow.
Industry presence verified.
Documents on request.
Real outdoor installations.
Project Inquiry Process
A structured 8-step process to ensure the enclosure perfectly matches your engineering requirements.
Send projector model
Share site photos
Confirm installation
Review size & lens
Choose cooling
Confirm holes & cable
Review cabinet drawing
Discuss project order
Frequently Asked Questions
Technical answers for AV integrators and engineering contractors.
What is an outdoor projector enclosure?
What is the difference between an outdoor projector enclosure and a waterproof projector enclosure?
Can the enclosure be customized for different projector models?
What cooling options are available?
Can the enclosure reduce fog or frost on the projection window?
What information is needed for a quote?
Send Your Project Details
Our engineering team is ready to review your requirements. Please provide as much detail as possible so we can configure the optimal cooling method, mounting holes, and cable entry.
