Custom Outdoor Projector Enclosures for Fixed Installations
Protect your investment in projection mapping, scenic night tours, and outdoor commercial displays. Our enclosures are engineered around your specific projector model, heat load, and site conditions, ensuring reliable operation in demanding environments.
- Configured around projector dimensions, mounting holes, and airflow paths.
- Air-cooled and air-conditioned options based on project heat load.
- Structures available for single, dual, and multi-projector layouts.
- Third-party test documents available for applicable enclosure models.
What Is an Outdoor Projector Enclosure?
An outdoor projector enclosure is a weather-resistant, climate-managed cabinet designed to protect a projector during fixed outdoor operation.
Unlike a generic storage box, an engineered projector housing is not selected merely by checking if the projector "fits inside." It is a specialized piece of infrastructure designed around critical engineering constraints, including:
- Projector dimensions
- Heat load & airflow
- Air intake & exhaust direction
- Lens position & alignment
- Installation orientation
- Outdoor ambient environment
- Maintenance access
- Cable routing interfaces
Projects This Enclosure Is Designed For
From high-lumen building mapping to permanent scenic installations, the enclosure structure is adapted to meet specific site constraints and projection methods.
Building Projection Mapping
Installed on rooftops or structural columns facing facades. Requires precise optical window alignment and robust climate control for high-lumen projectors operating in exposed environments.

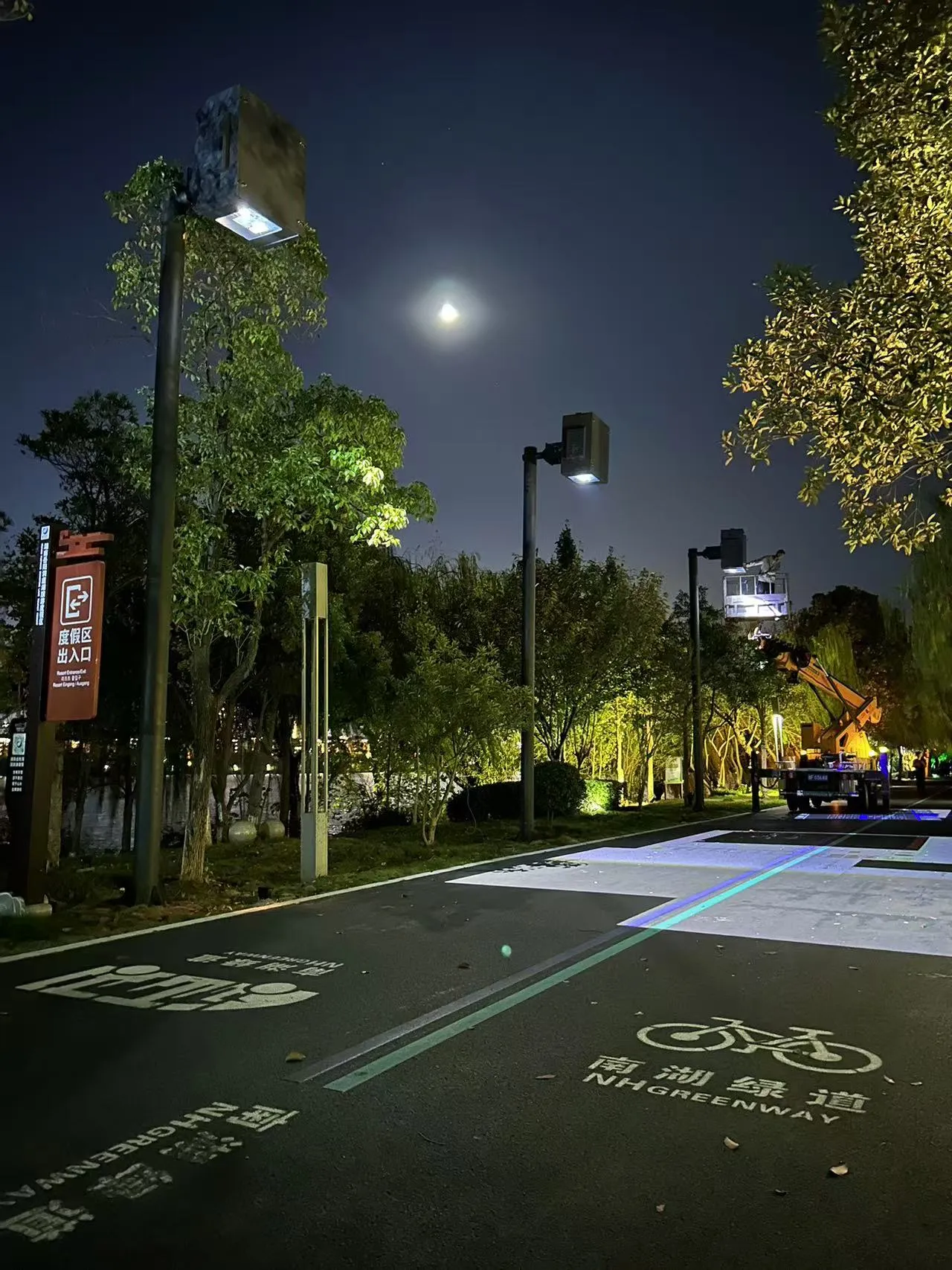

Scenic Night Tours
Often installed in forested or mountainous areas with high humidity and insect presence. Custom cable entries and sealed doors prevent moisture and debris ingress.
Water-Screen Projection
Located near lakes or rivers. Designed to manage severe condensation risks and protect sensitive electrical components from constant moisture exposure.

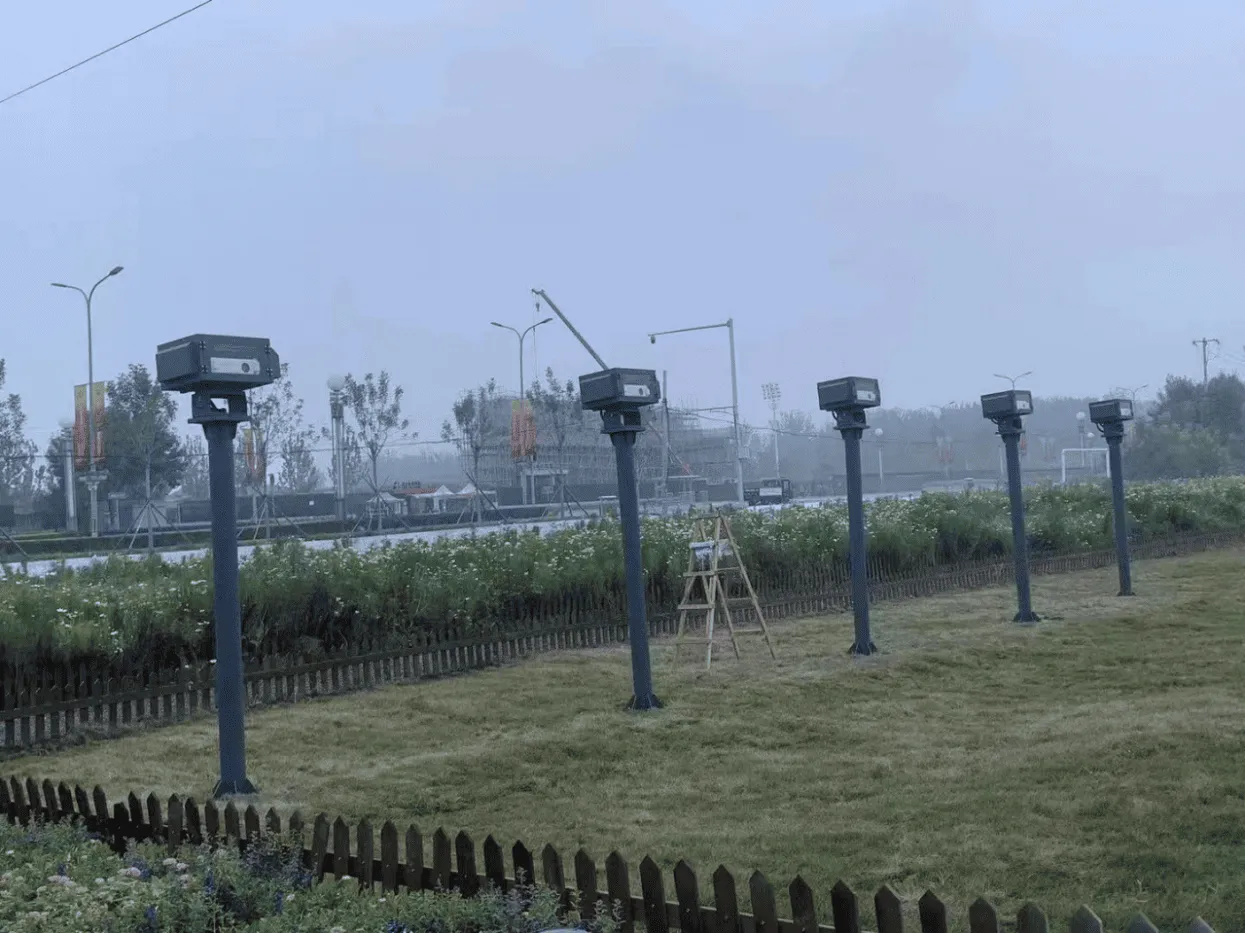

Ground & Stair Projection
Requires specific tilt angles and multi-projector configurations. The mounting plate and optical window are engineered to support severe downward projection orientations.
Precision Engineered Enclosures
Advanced intelligent climate control meets rugged durability. Built with premium materials to safeguard your projection systems in extreme outdoor environments.
F6 medium efficiency air filter, breathable and efficient, dustproof, anti-mosquito function

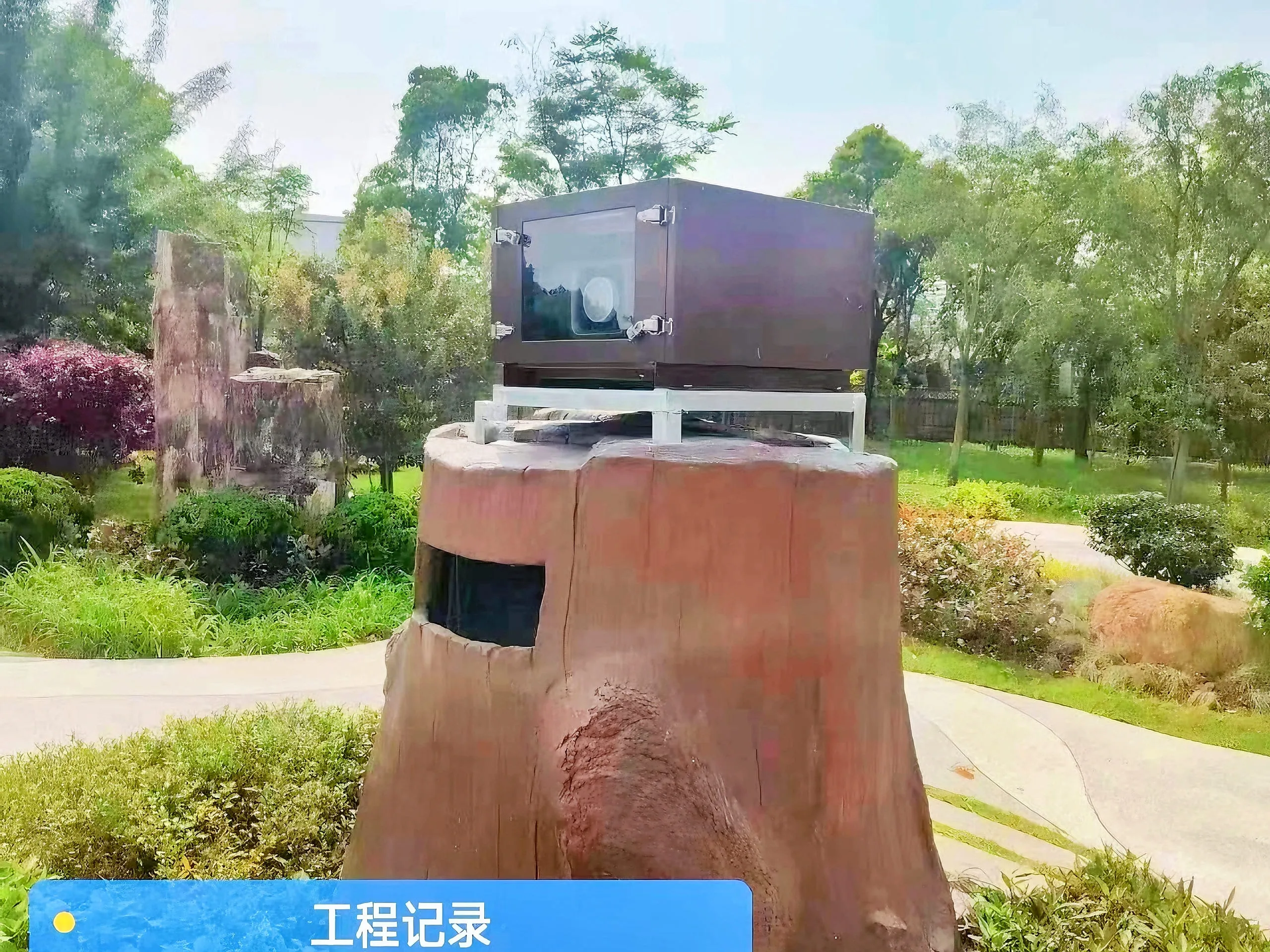

Thermostat box with waterproof, dustproof, anti-corrosion, heating, dehumidification function
Heating module, temperature ≤ 5 ℃ humidity ≥ 85% heating start, warming to 10 ℃ humidity ≤ 75% heating stop.
Built-in temperature and humidity sensing, road temperature sensing, smoke alarm, flooding alarm.mpressor.
wifi, Ethernet, 4G, connected to the Ali cloud IoT platform, data communication encryption is safe and reliable.
box temperature is higher than the preset value (35 ℃) ≥ 2 ℃, the fan cooling system to start, below the preset value of ≤ 2 ℃ fan stops working.
internal blowing device to ensure that the surface of the projection port is not frost fog;
The projection port adopts 95% light transmittance optical ultra-white glass.
Why Outdoor Projectors Need More Than a Metal Cabinet
Placing a sensitive AV device in a generic box leads to critical failures. A true enclosure mitigates specific site risks.
Rainwater & Moisture
Rain can enter through poorly designed doors or cable entries. Our enclosure design considers door seals, optical window integration, and secure cable glands simultaneously.
Trapped Heat
Projectors generate immense heat. If the cabinet lacks a planned airflow path matching the projector's intake and exhaust, thermal shutdown is inevitable.
Condensation
Temperature drops at night cause dew. Without proper heating, air circulation, or humidity control, lenses fog up and internal components corrode.
Dust & Airborne Debris
Pollen, sand, and insects clog projector filters. The enclosure must manage intake air quality to extend the maintenance cycle of the projector itself.
Optical Misalignment
Generic boxes ignore lens offset. If the optical window isn't aligned with the specific projector's lens position, the projected image will be clipped or distorted.
Difficult Maintenance
Projectors installed on high poles or building facades are hard to reach. A lack of planned maintenance doors and clearance space drastically increases service costs.
Outdoor Projector Enclosure Configurations
Selecting the right category depends on the projector's thermal output, the installation space, and the specific projection mapping requirements.
Air-Cooled Projector Enclosure
Utilizes forced-air ventilation (fans) to manage internal temperatures. Suitable for moderate climates and projectors with standard heat loads. Requires careful alignment of enclosure vents with the projector's intake and exhaust to prevent hot air recirculation.

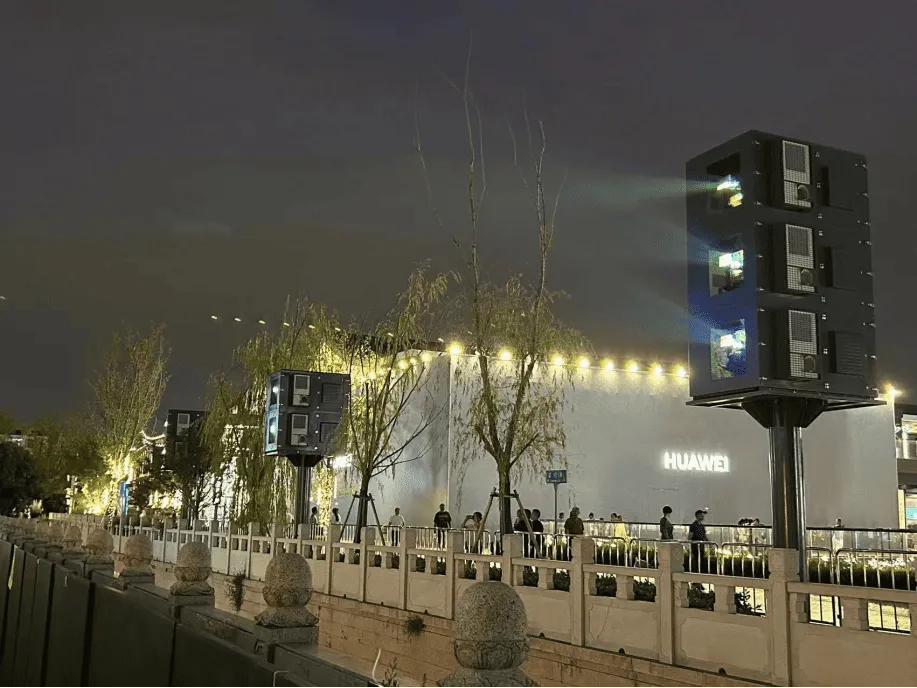

Air-Conditioned Projector Enclosure
Integrates active cooling components for high-lumen projectors (e.g., 20,000+ lumens) or environments with extreme ambient temperatures. Creates a more isolated internal climate, reducing dust ingress and managing humidity more effectively.

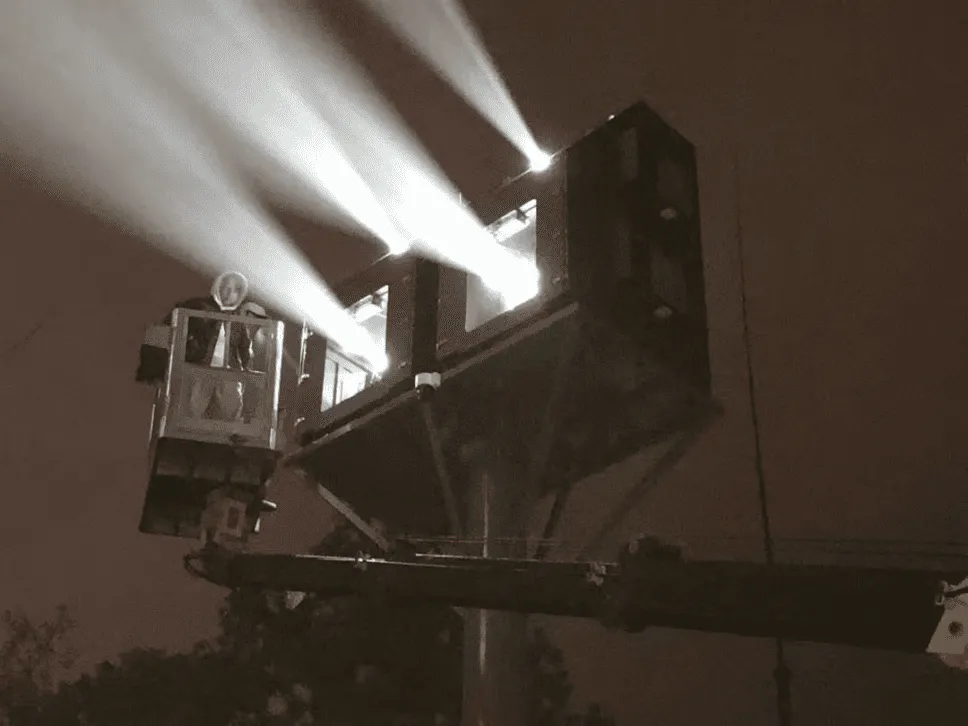

Multi-Projector Enclosure
Custom structures designed for dual, vertical-stacked, or side-by-side projector configurations. Engineering focuses on managing the combined heat load, ensuring independent optical alignment, and providing adequate maintenance doors for all units.
Engineered Around the Projector, Not a Standard Box Size
Different projector brands (such as Hisense, Christie, Barco, Vivitek, Appotronics) have unique dimensions, lens offsets, and airflow designs. Compatibility is confirmed against the selected projector model and installation drawing before production begins.
-
1
Mounting Plate & Holes
Customized to match the exact mounting hole pattern of the projector to ensure stability during outdoor vibration.
-
2
Optical Projection Window
Sized and positioned based on the specific lens model, throw ratio, and required lens shift to prevent image clipping.
-
3
Cooling & Airflow Path
Cabinet baffles and fans are positioned to pull fresh air into the projector's intake and exhaust hot air away immediately.
How to Select the Cooling Method
The cooling method should be selected after reviewing the projector heat load, ambient conditions, enclosure volume and expected operating schedule.
We do not apply arbitrary temperature limits. The correct choice depends on a holistic review of your specific installation site.
| Feature | Air-Cooled Enclosure | Air-Conditioned Enclosure |
|---|---|---|
| Cabinet Airflow | Exchanges internal air with outside ambient air via fans and filters. | Maintains a mostly closed loop, cooling internal air actively. |
| Projector Heat Load | Suitable for low to moderate heat generation (typically lower lumen output). | Essential for high heat loads (e.g., large laser projectors). |
| Outdoor Environment | Best in moderate climates with lower dust/humidity levels. | Handles high ambient temps, severe humidity, and heavy dust. |
| Maintenance Consideration | Requires regular filter cleaning/replacement depending on site dust. | Reduces projector filter maintenance, but AC unit requires periodic checks. |
Information Required Before We Prepare the Enclosure Drawing
To ensure the cabinet dimensions, cooling capacity, and mounting structures are correct, we require specific details about your AV project.
Project Checklist
- Projector Brand & Model
- Projector Datasheet
- Lumen Output
- Lens Model / Throw Ratio
- Installation Orientation
- Ambient Temperature Range
- Power & Signal Interfaces
- Required Delivery Date
Engineered Features for Fixed Installations
Projector-Specific Mounting Layout
The Challenge: Securing a heavy projector outdoors requires exact alignment. Generic shelves cause vibration and misalignment over time.
The Solution: The internal mounting plate is pre-drilled according to the specific projector's mounting holes. This ensures the unit is locked securely in place, maintaining optical alignment even in high winds or near heavy traffic.
Optical Window Alignment
The Challenge: Projectors have off-center lenses and require specific lens shift for projection mapping. A fixed, centered window often blocks the light path.
The Solution: The optical window's size and position are calculated based on the lens model and required throw angle. This prevents image clipping and ensures maximum light transmission without structural interference.
Sealed Cable Entry & Maintenance Access
The Challenge: Integrators struggle to route thick HDMI, fiber, and power cables through standard waterproof glands on site, often compromising the seal.
The Solution: The enclosure layout separates the cable entry zone from the main maintenance doors. Custom cable glands or sealed entry plates are planned based on the required power and signal interfaces, allowing for clean routing without reopening the entire cabinet during final site commissioning.
General Specification Reference
Final specifications are confirmed after engineering review of your specific projector model and site conditions.
| Product Type | Outdoor Projector Enclosure / Climate-Controlled Housing |
| Cooling Method | Air-cooled or Air-conditioned (Optional according to project requirement) |
| Projector Configuration | Single, Dual (Stacked/Side-by-side), or Multi-projector |
| Compatible Models | Customized according to projector model (e.g., Hisense, Christie, Barco, Vivitek, etc.) |
| Cabinet Dimensions | To be confirmed after drawing review based on projector size and cooling unit |
| Optical Window | Positioned according to specific lens alignment |
| Mounting Plate | Pre-drilled based on projector mounting holes |
| Temperature Control | Sensors, fans, or AC units configured per heat load |
| MOQ & Lead Time | MOQ to be confirmed; Lead time to be confirmed after drawing approval |

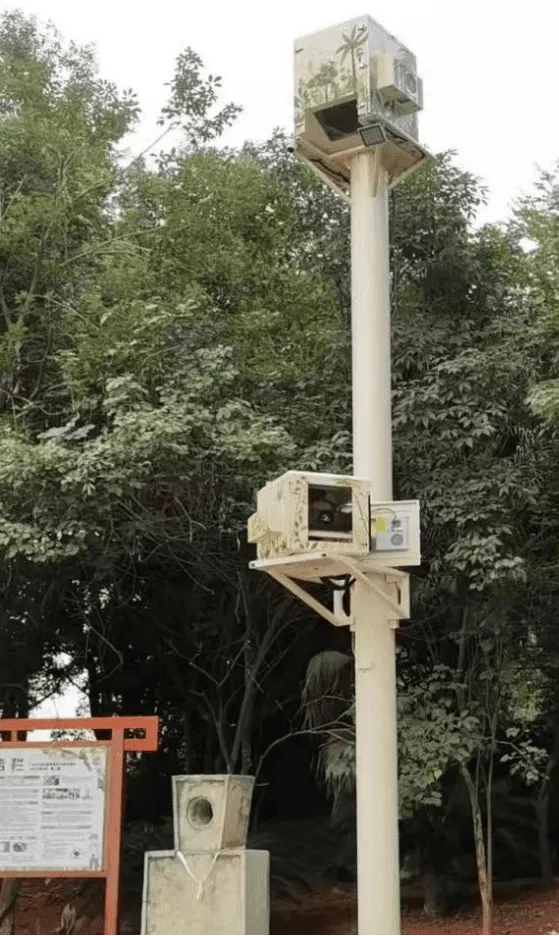

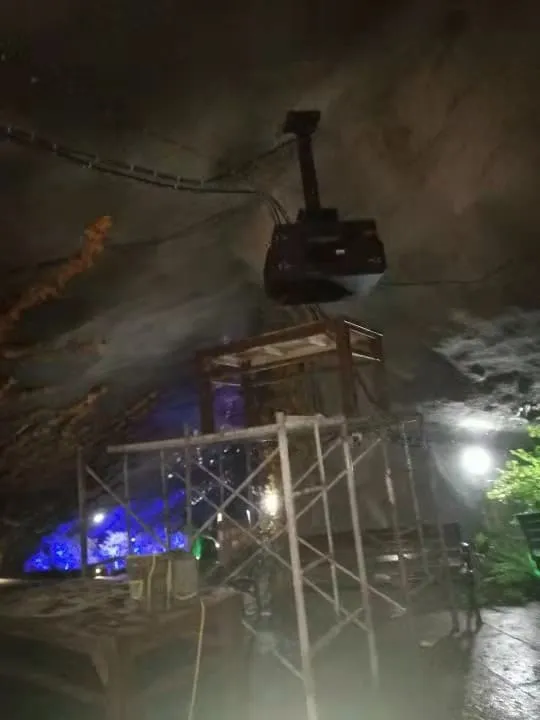

Outdoor Projector Enclosures Used in Real Installations
View how our enclosures protect high-value projection assets across diverse environments.

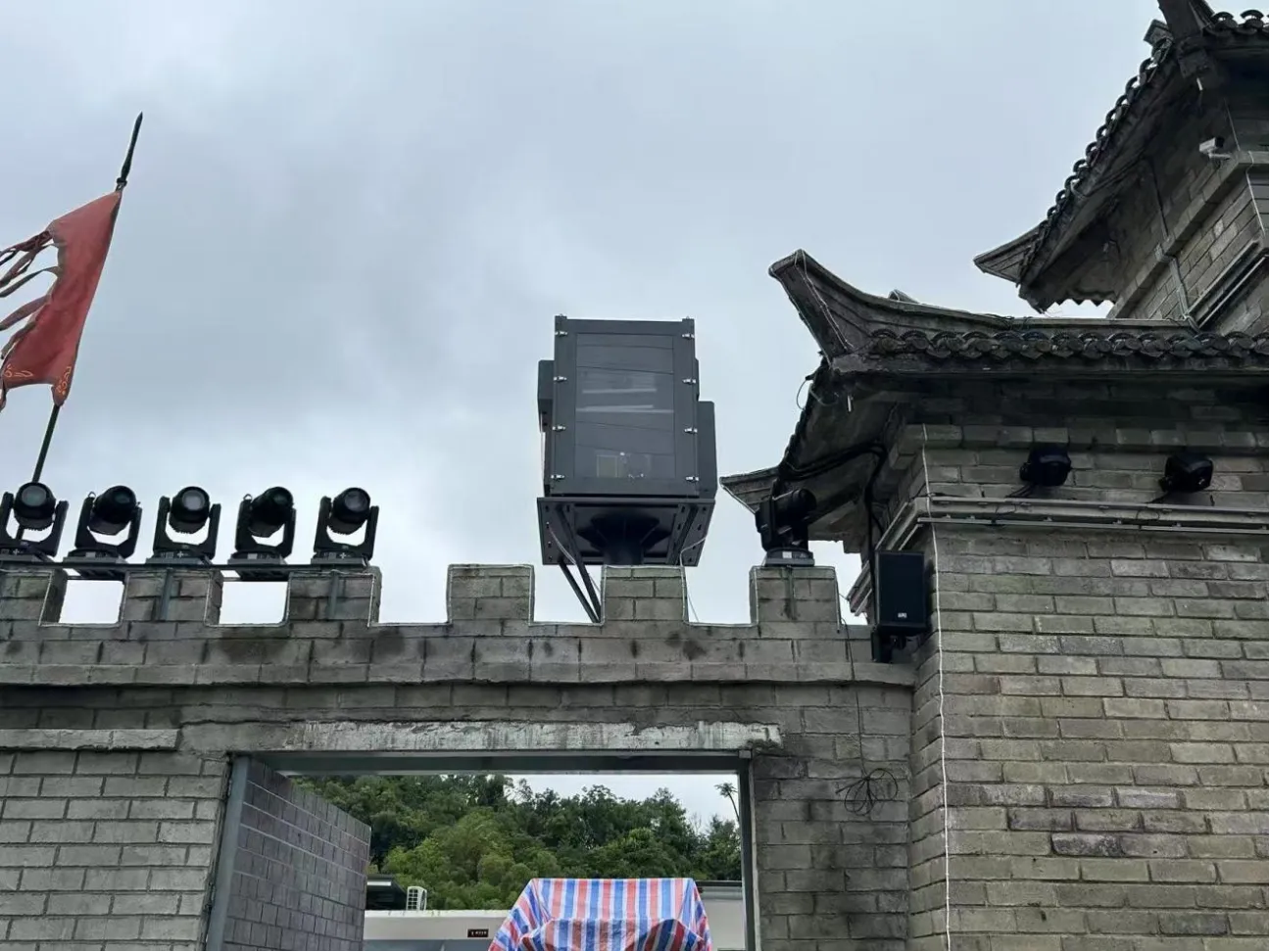

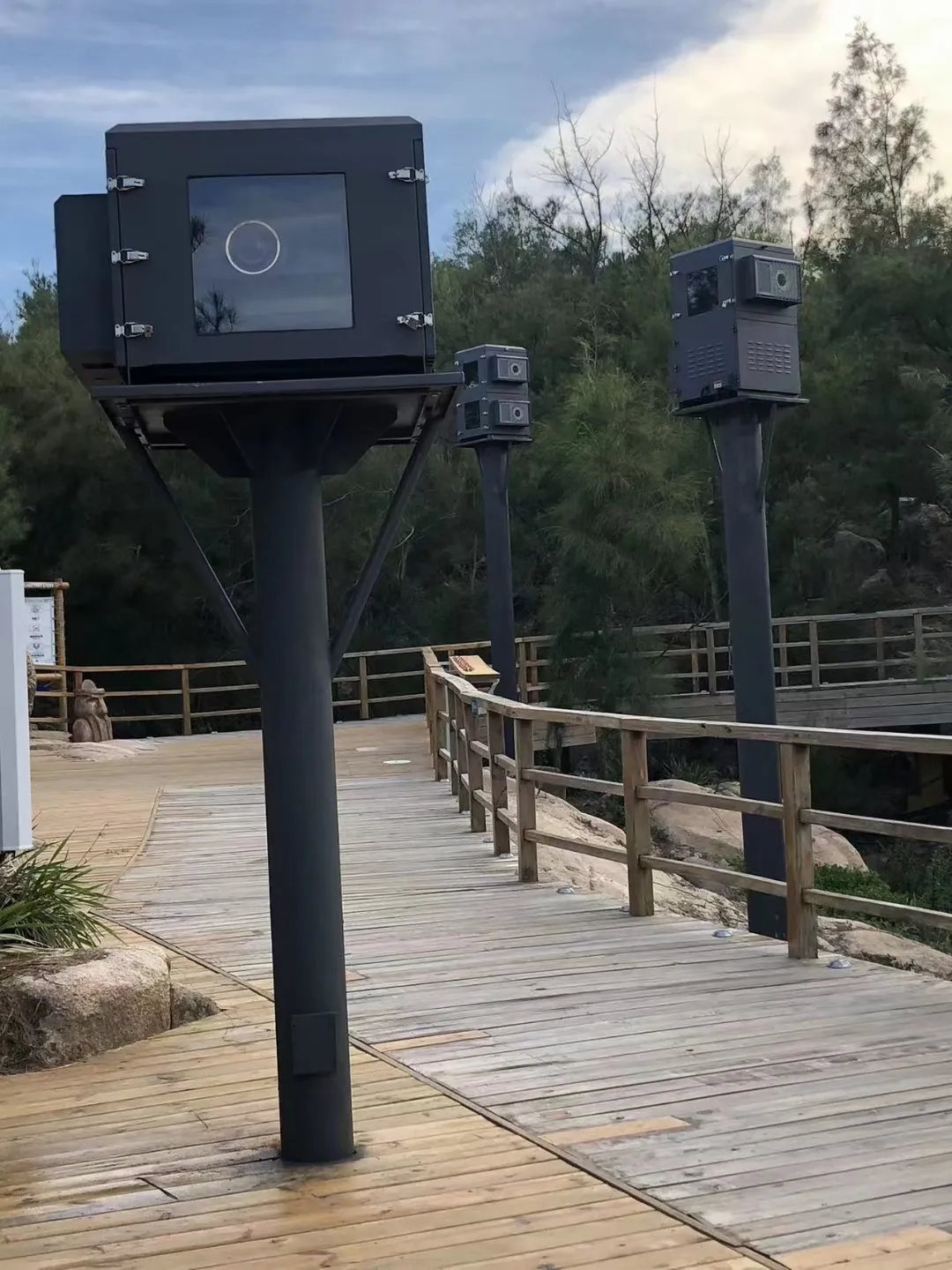

Pingtan International Tourism Island
- Lumen Output: 15,000 Lumens
- Configuration: Air-conditioned dual stacked-projector enclosure
- Challenge: High coastal humidity and salt spray.

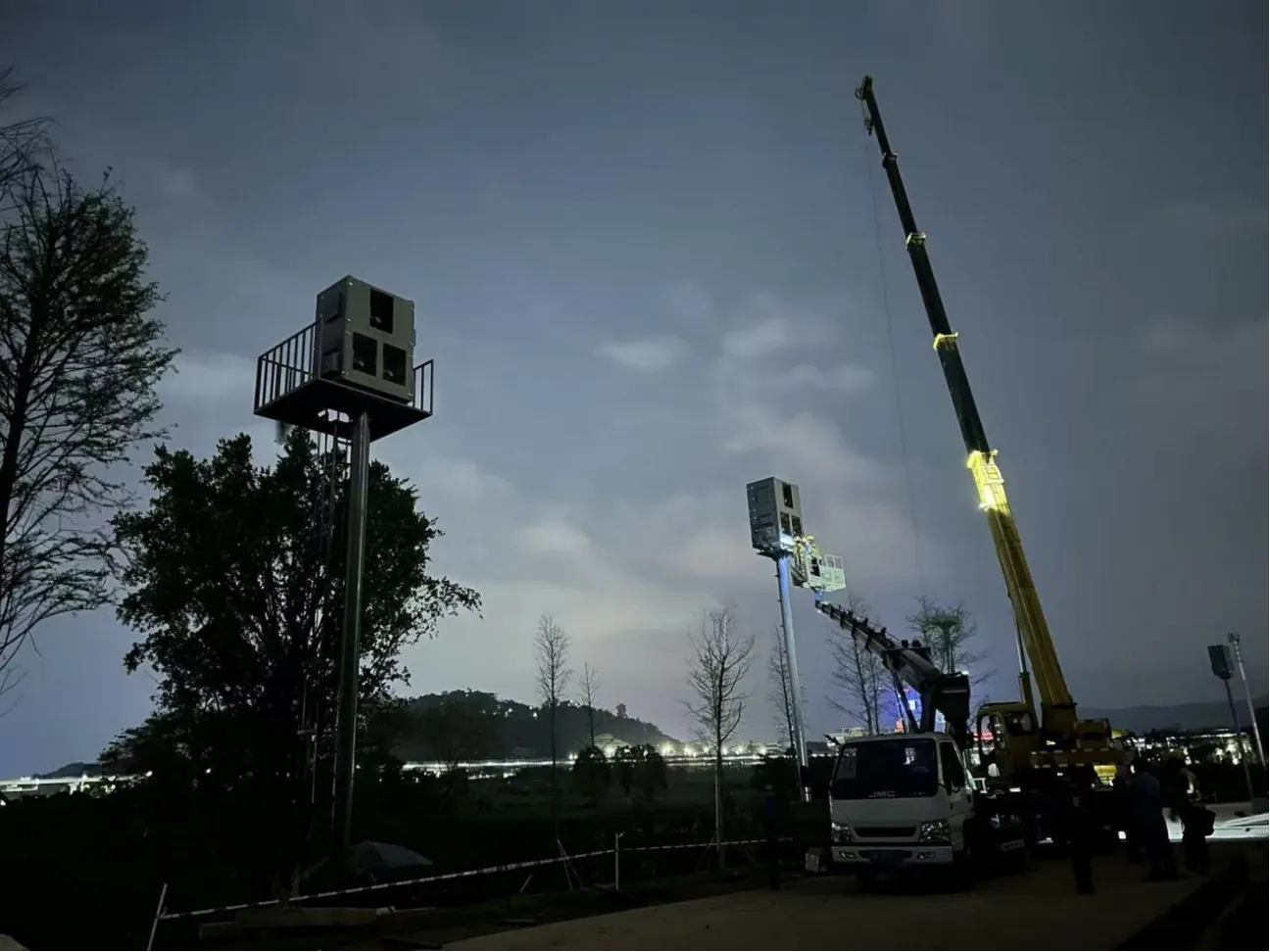

Quxian Cooling Tower Project
- Projector: CB-L30000U
- Quantity: 16 units
- Configuration: Air-conditioned enclosures
Kanggu Scenic Area
- Lumen Output: 25,000 Lumens
- Configuration: Five-projector configuration
- Challenge: Mountainous terrain requiring complex multi-unit alignment.

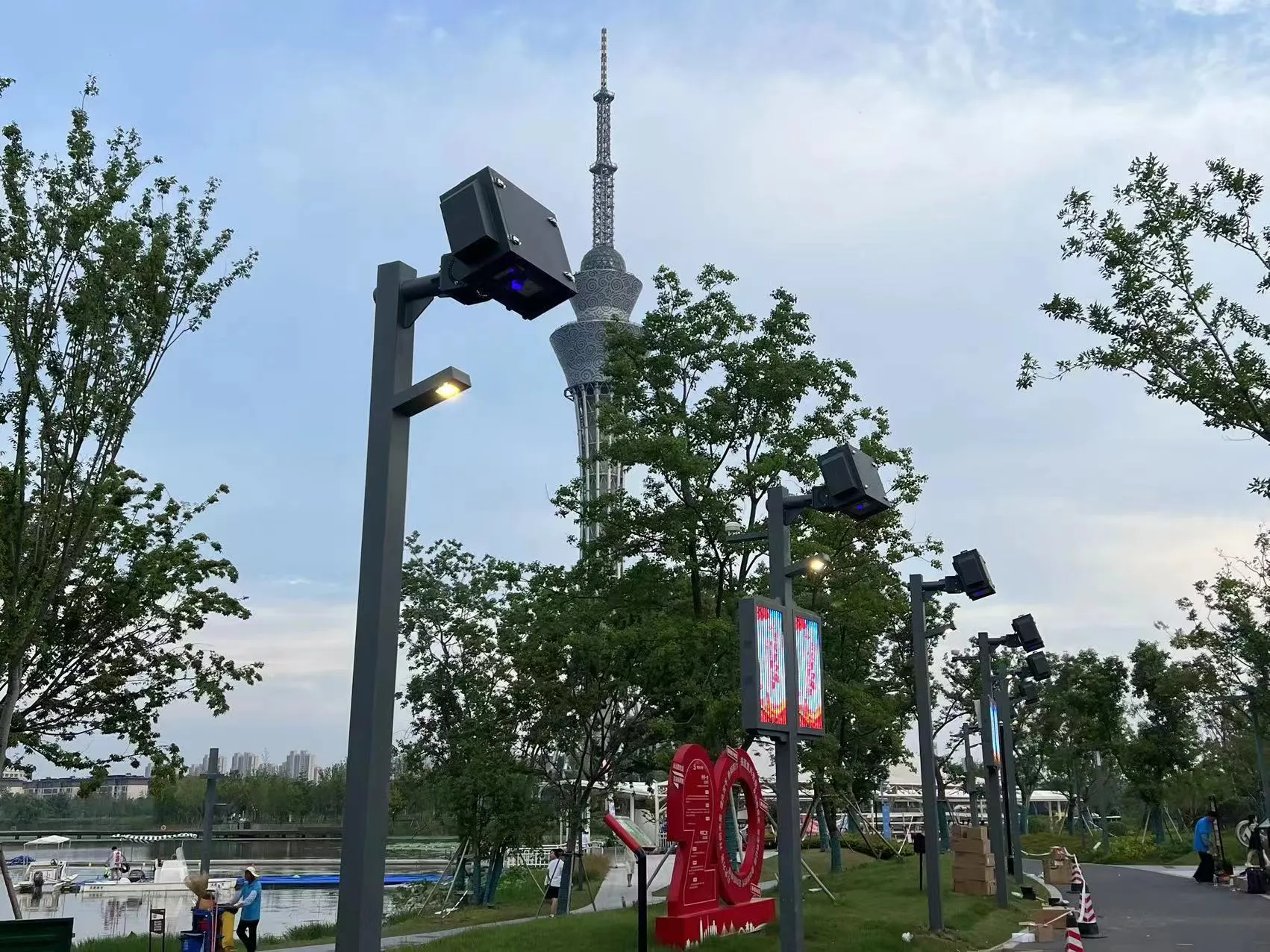

Dehang Canyon Scenic Area
- Projectors: Hisense (6K), Barco (19K & 40K)
- Quantity: 40 total units
- Challenge: Deep canyon environment with severe temperature fluctuations.
Yinchuan Cultural City
- Projector: Christie 20,600-lumen
- Application: Water-screen projection
- Configuration: High moisture protection layout

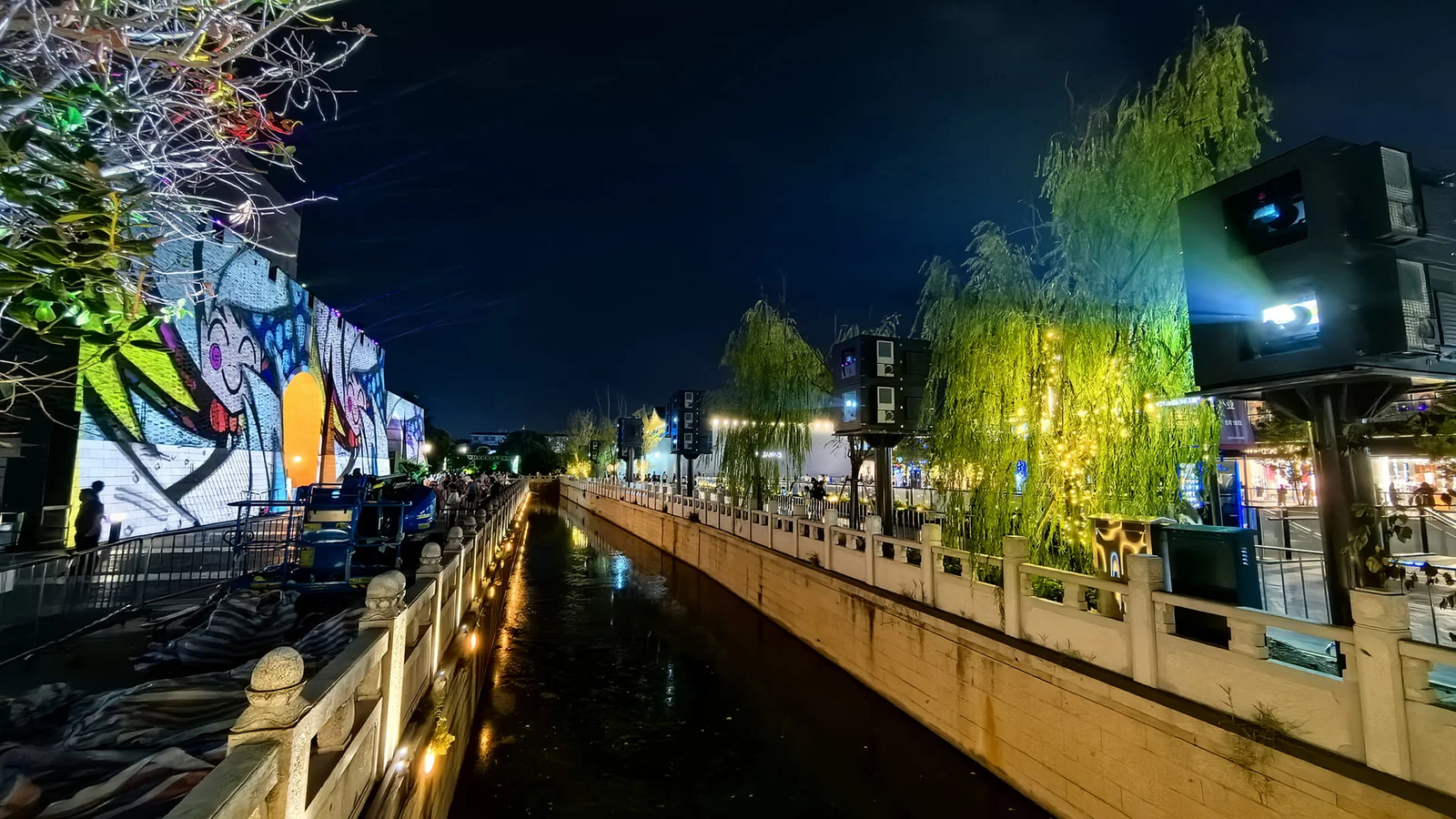

Shuiyun Longwan Park
- Configuration: Four-projector side-projection enclosure
- Challenge: Urban forest park with specific aesthetic and footprint limits.
Standard Cabinet vs. Engineered Enclosure
The primary procurement focus should not be whether a cabinet can physically hold a projector, but whether its internal layout matches the projector's engineering requirements.
| Criteria | Generic Metal Cabinet | Shirui Engineered Enclosure |
|---|---|---|
| Mounting-hole confirmation | Standard flat shelf | Pre-drilled per projector model |
| Lens and optical-window alignment | Fixed center window | Positioned per lens offset |
| Cooling-path planning | Random vents | Aligned with intake/exhaust |
| Multi-projector support | Not typically supported | Engineered structures available |
| Drawing approval before production | No | Yes |

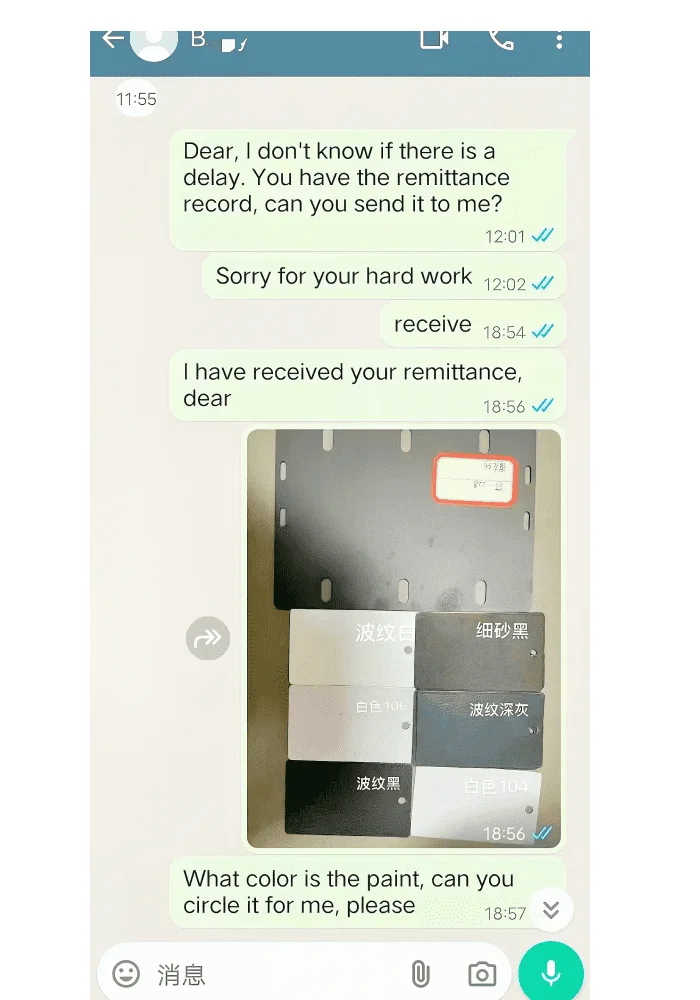

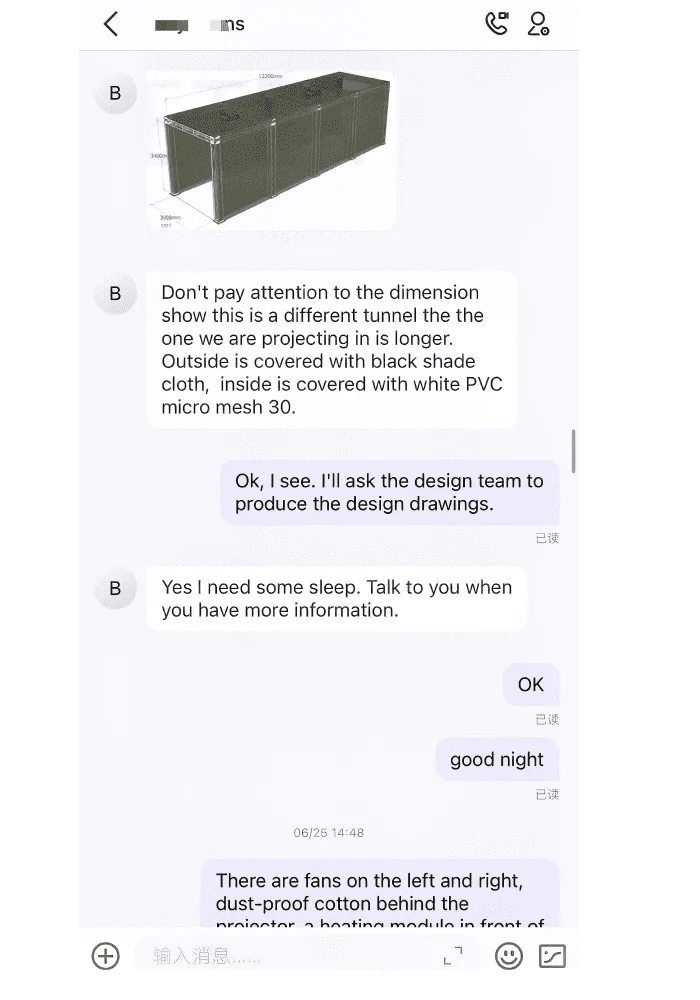

Real Customer Chat Snapshots
See what our global partners are saying about ShiRui outdoor projector enclosures. From extreme weather reliability to seamless integration, our clients' success stories speak for themselves.

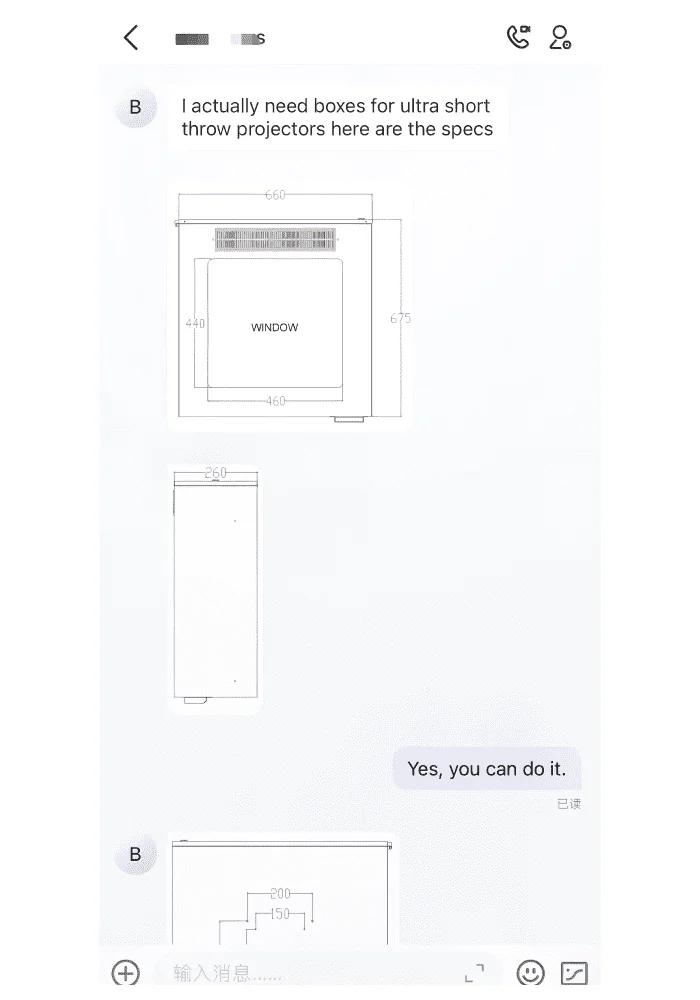

"Perfect Waterproofing"
Client from North America
"Smart Cooling Works Great"
Outdoor Projector Integrator
"Reliable in Extreme Cold"
European Wholesaler

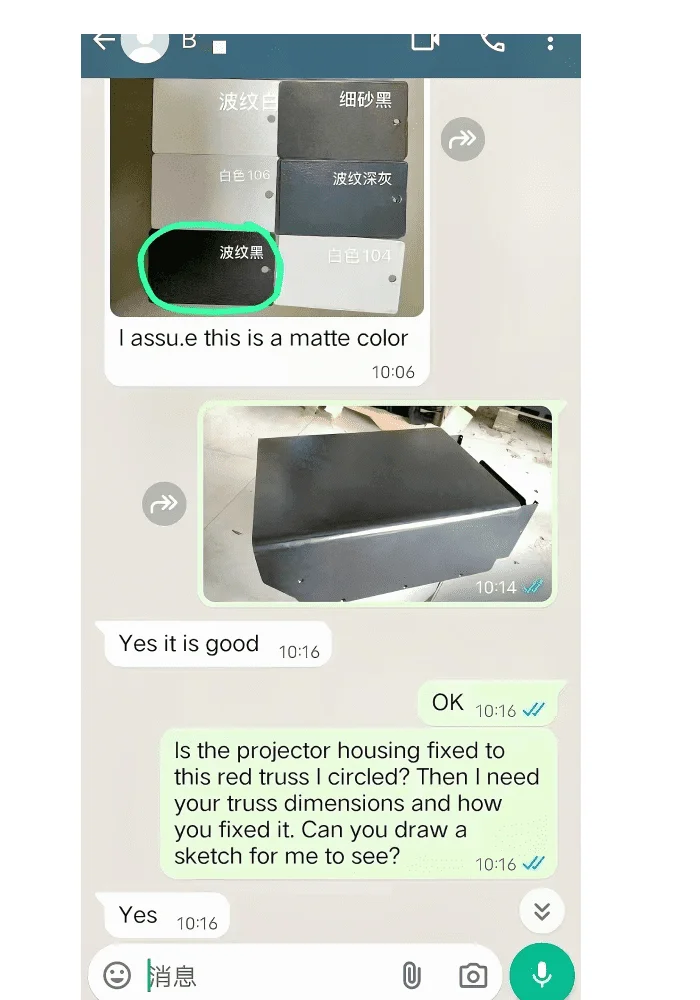

"Premium Build Quality"
Commercial AV Installer
100% Authentic Feedback Clients consistently praise our intelligent climate control (fans activate at ≥35°C, heating at ≤5°C) and robust 201/304 stainless steel construction. We customize every enclosure to meet your exact project demands.

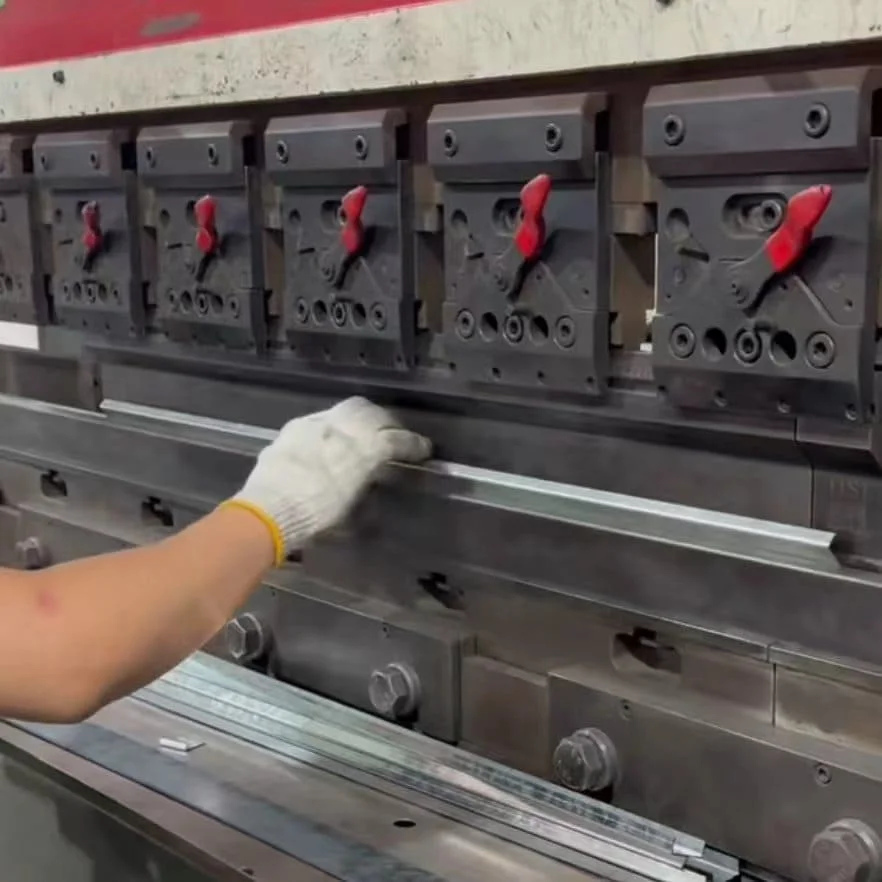

From Approved Drawing to Cabinet Assembly
Cabinet processing only begins after engineering drawings are confirmed. Mounting holes, optical windows, and cable entries are machined precisely to the approved layout. Mass-production consistency is maintained through unified drawings, fixed installation positions, and structured assembly checks.
Industry-Recognized Quality Certifications
At ShiRui, product safety and reliability are our top priorities. Our custom waterproof outdoor projector enclosures are rigorously tested for advanced temperature control and structural durability, backed by authoritative industry certifications to ensure peak performance in any environment.

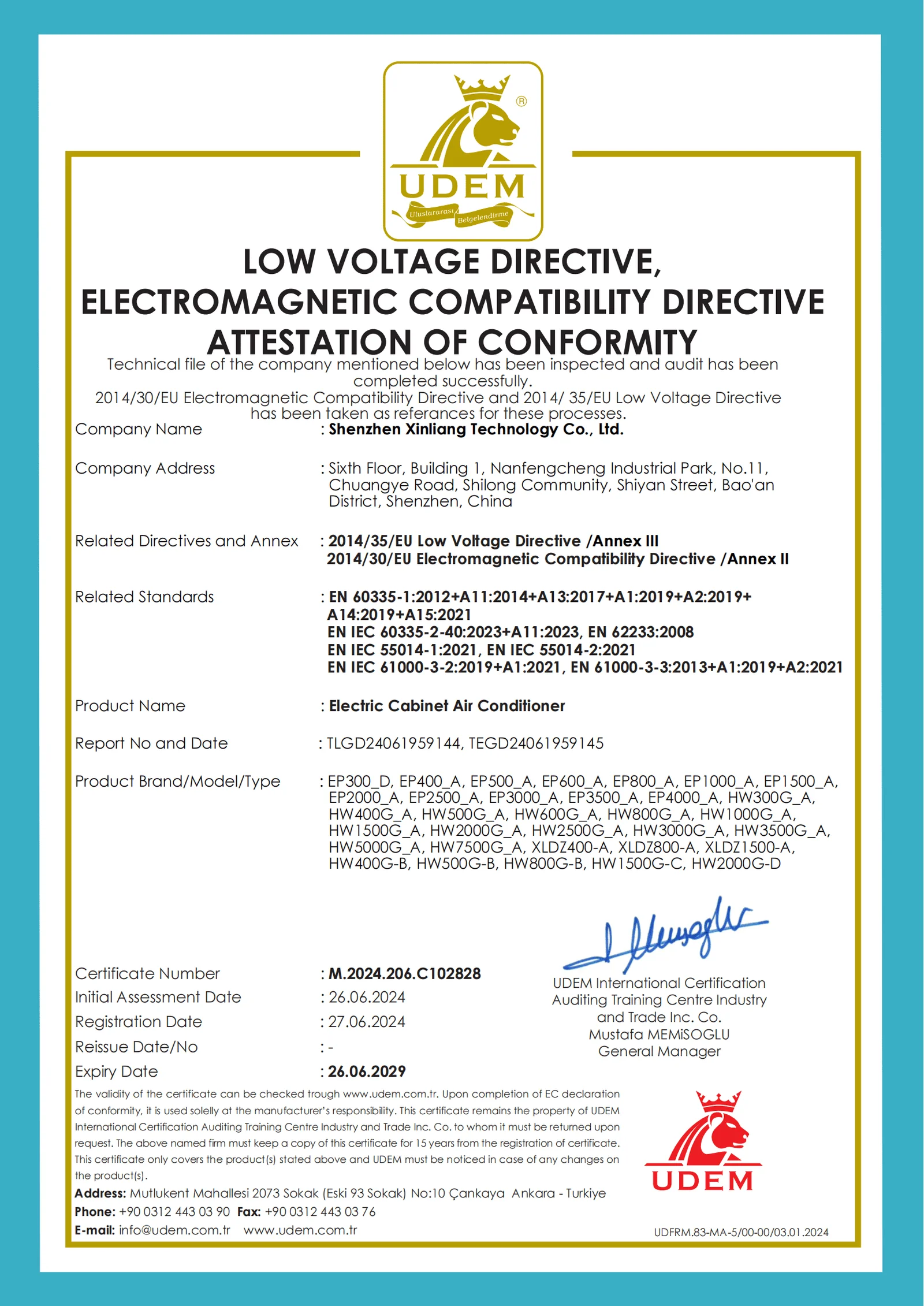

CE Certification
Quality Assurance

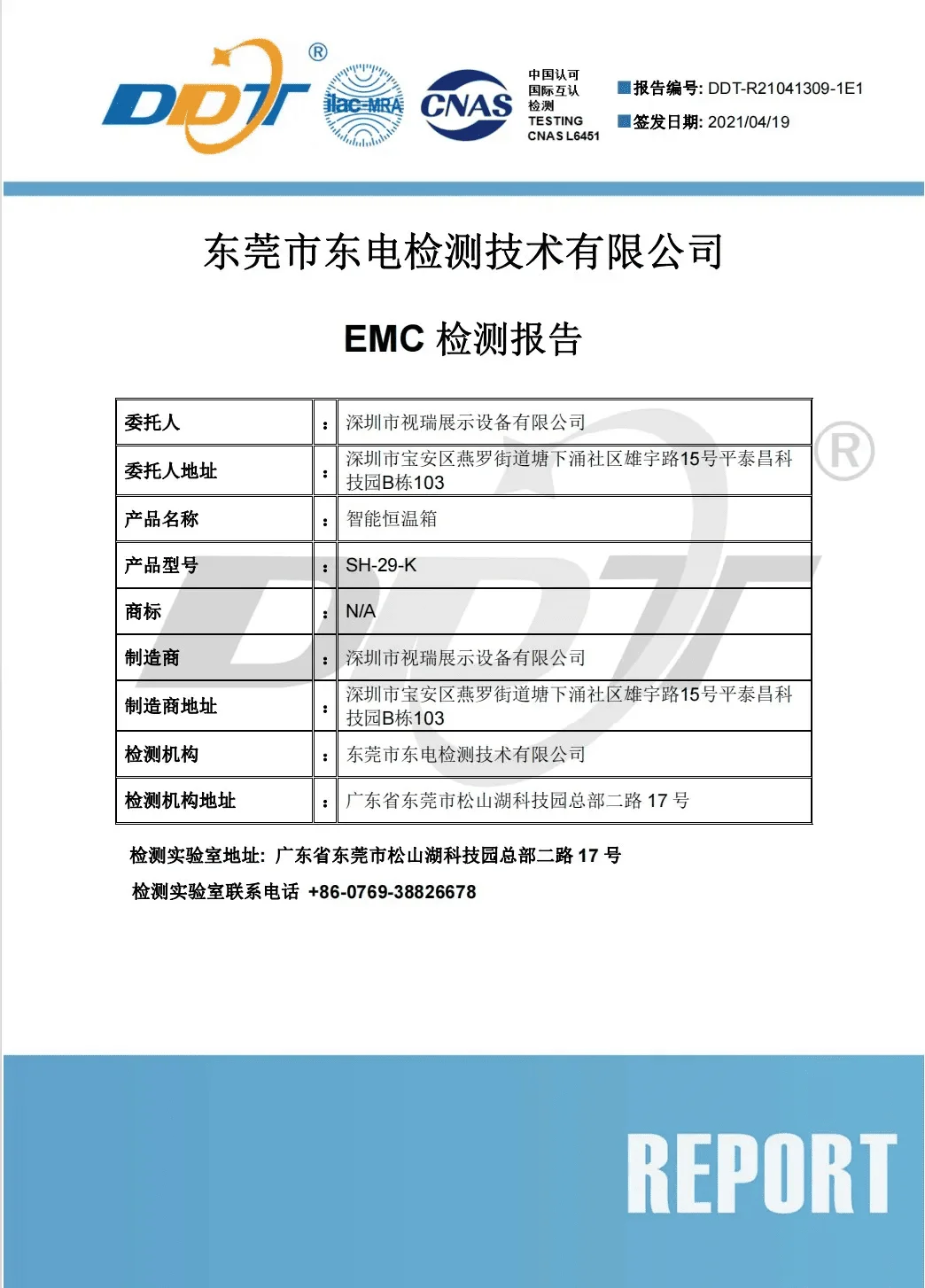

Technical Patent

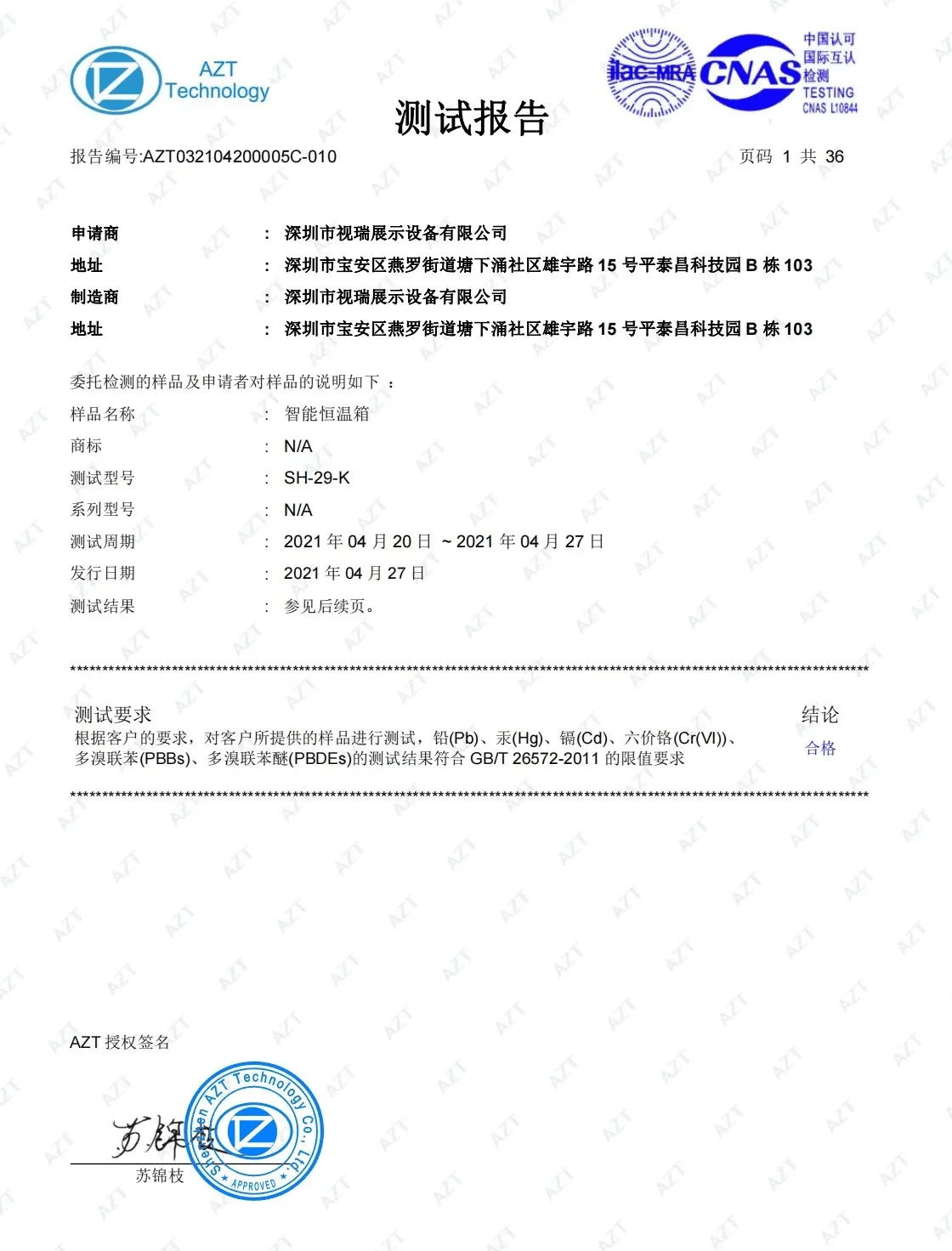

Industry Standard
Custom Outdoor Projector Enclosure Workflow
Production scheduling is confirmed after the cabinet drawing, cooling configuration, order quantity and required delivery date have been reviewed.
Submit Project Info
Buyer provides projector datasheet, lumen output, installation orientation, and site conditions.
Prepare Cabinet Layout
We plan the mounting holes, airflow compatibility, optical-window position, and cable interfaces.
Approve Drawing
Buyer approves the custom cabinet drawing or requests a first-unit sample for physical verification.
Production & Delivery
Mass-production versions are strictly controlled against the approved drawing. Final inspection and packing.
Get a Configuration-Based Quotation
Projector model, quantity, installation method and site conditions are required before the cabinet dimensions, cooling method, mounting structure and optical-window position can be evaluated.
Direct Contact
Email: info@projectorshellbox.com
Phone: +8613632871992
Send Project Details on WhatsAppFrequently Asked Questions
What is an outdoor projector enclosure?
An outdoor projector enclosure is a weather-resistant, climate-managed cabinet designed to protect a projector during fixed outdoor operation. It is engineered specifically around the projector's dimensions, mounting holes, optical window position, and airflow requirements to prevent weather damage and thermal shutdown.
What information is required to customize an enclosure?
We require the projector brand and model, a detailed datasheet, lumen output, lens model, installation orientation (e.g., standard, portrait, downward), and site conditions. This allows us to request a configuration-based quotation and prepare an accurate cabinet layout.
How do I choose between air-cooled and air-conditioned models?
The cooling method should be selected after reviewing the projector heat load, ambient conditions, enclosure volume, and expected operating schedule. You can explore our air-cooled outdoor projector enclosures for moderate climates, or air-conditioned projector enclosure configurations for high-lumen projectors in extreme heat.
Can one enclosure fit different projector brands?
Compatibility is confirmed against the selected projector model and installation drawing. Because mounting holes, lens positions, and airflow directions vary significantly between brands, the enclosure is configured specifically for your provided model rather than acting as a universal box.
How are mounting holes confirmed?
Before production, the internal mounting plate layout is reviewed against the projector's dimensional drawing. The holes are pre-drilled to ensure the projector can be securely bolted down, preventing misalignment caused by wind or vibration at the installation site.
How is the optical window aligned with the projector lens?
The optical window's size and position are calculated based on the specific lens model, throw ratio, and required lens shift. This ensures the projection path is clear and prevents the cabinet structure from clipping the image.
Can the enclosure support two or more projectors?
Yes. We design custom multi-projector enclosures for dual, stacked, or side-by-side configurations. These designs account for the combined heat load and ensure independent maintenance access for each unit.
Can it be used for water-screen or ground projection?
Yes. For water-screen projection, the enclosure is configured with enhanced moisture protection. For ground projection, the mounting plate and optical window are modified to support steep downward installation angles. View our outdoor projection application scenarios for more details.
How does the enclosure manage heat and condensation?
Heat is managed through planned airflow paths that match the projector's intake and exhaust, utilizing fans or AC units. Condensation is reduced by configuring proper sealing, air circulation, and heating based on the site's humidity conditions. Read our condensation prevention for outdoor projectors guide.
What test reports are available?
Third-party EMC, IP6X, IPX6 and RoHS test documents are available for the applicable SH-29-K enclosure model. Test scope and model coverage should be confirmed before ordering. You can request applicable enclosure test documents during the quotation process.
Send Your Projector Model Before Ordering the Enclosure
To receive an accurate configuration and layout drawing, please submit your projector brand, model, datasheet, lens model, required quantity, and site conditions.
Applicable test documents, factory videos and relevant project cases can be provided according to the enclosure model and project requirement.
