Pole Mount Projector Enclosure for Fixed Outdoor Installations
Protect your high-lumen projectors in demanding outdoor environments. A custom pole-mounted projector enclosure provides waterproof sealing, active cooling, and precise bracket alignment for scenic night tours, building projections, and plaza installations. Unlike simple covers, a professional outdoor projector enclosure ensures stable operation against rain, dust, and temperature fluctuations.
Premium Projector Enclosures
Engineered for demanding outdoor environments. Featuring intelligent temperature control, auto-heating systems, and robust stainless steel construction for ultimate reliability.
ProShield 304 Series
Premium 304 stainless steel construction with ultimate corrosion resistance for coastal areas.
ThermoGuard Pro
Smart heating module activates at ≤ 5℃ and ≥ 85% humidity to prevent lens condensation.

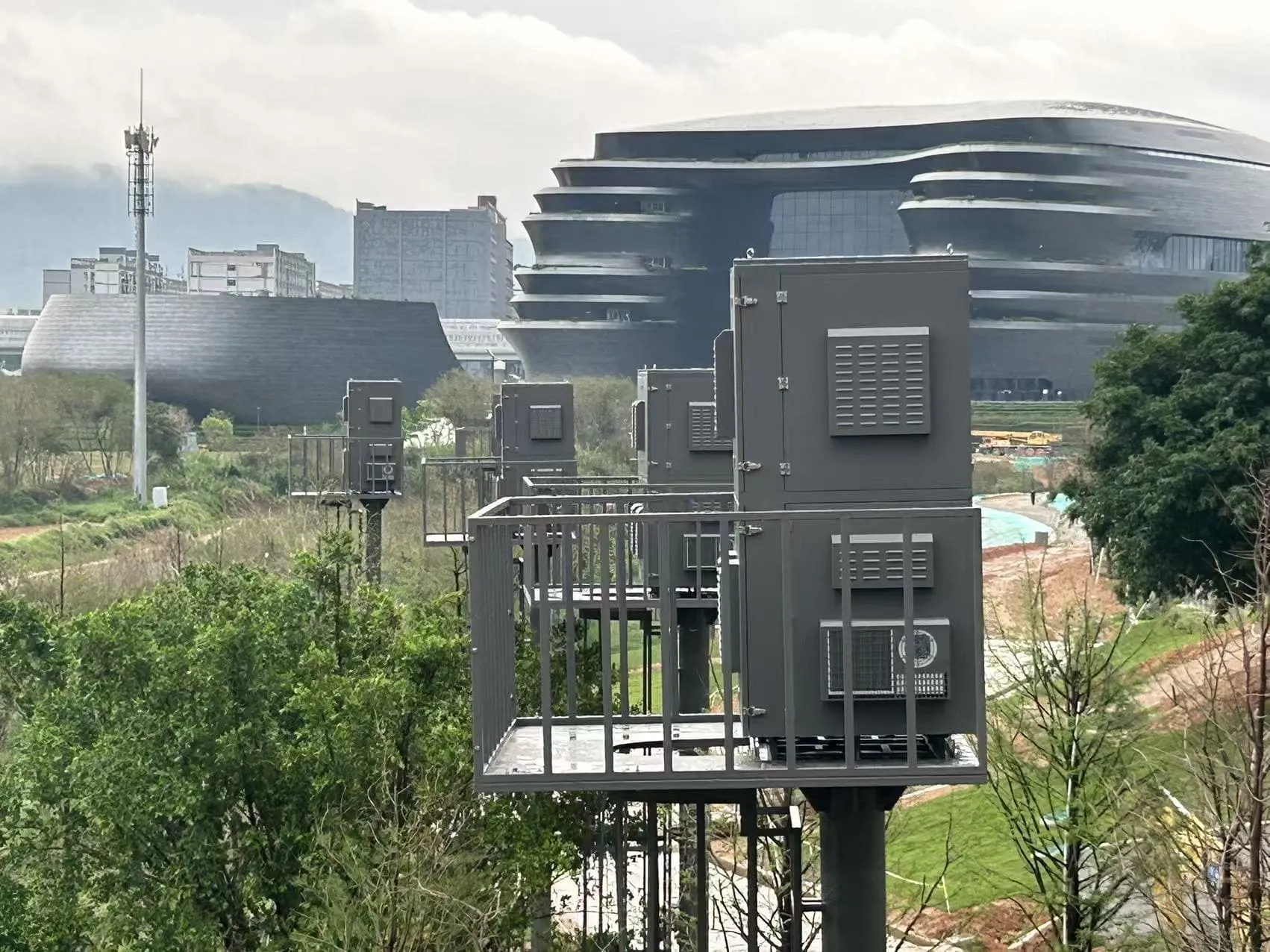

AeroCool Series
Intelligent fan cooling system starts automatically when box temperature exceeds 35℃.
EcoShield Galvanized
Cost-effective galvanized plate construction offering excellent durability for urban installations.

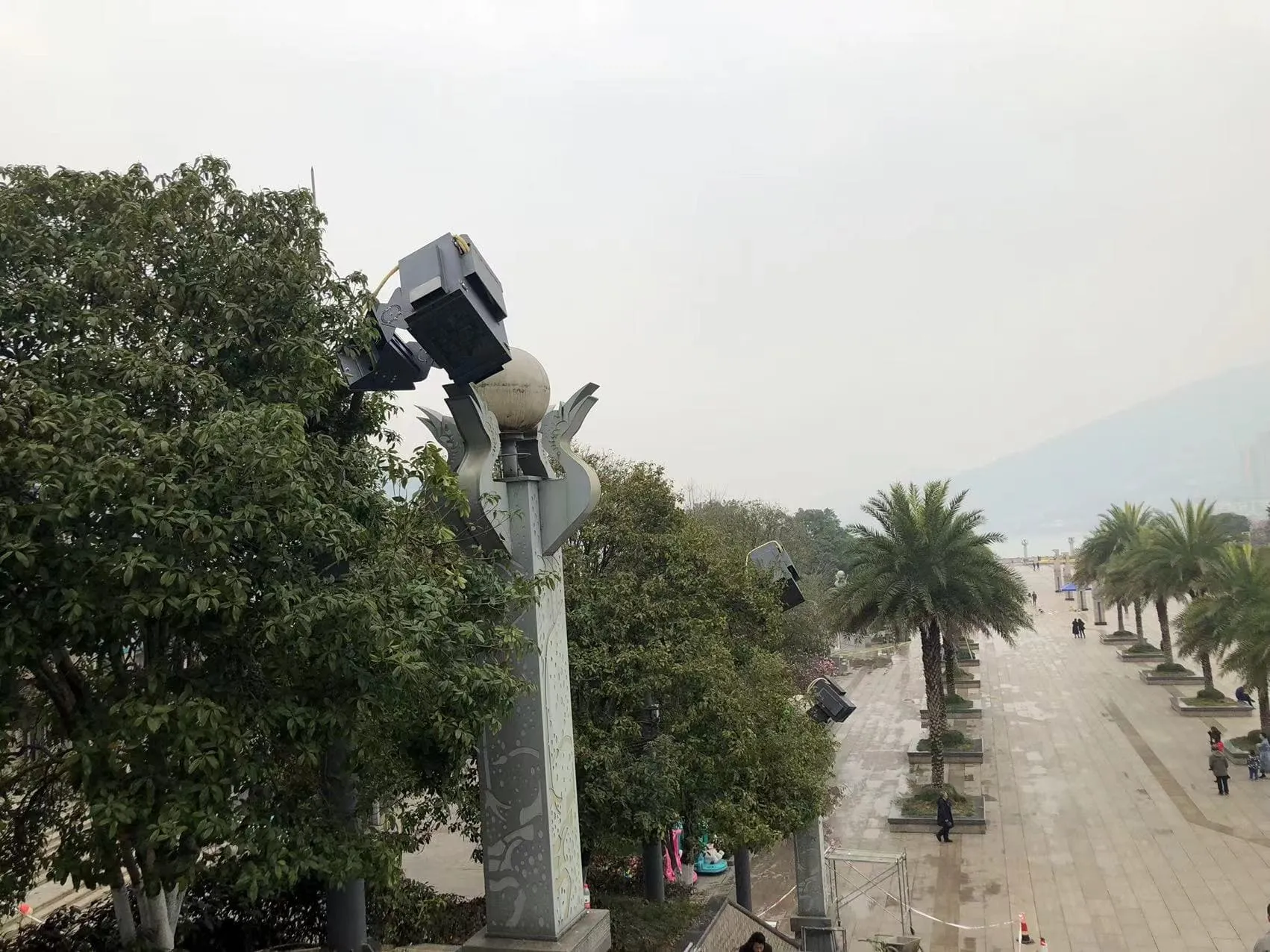

Architectural 201
Built with 201 stainless steel, balancing structural strength with an elegant aesthetic finish.

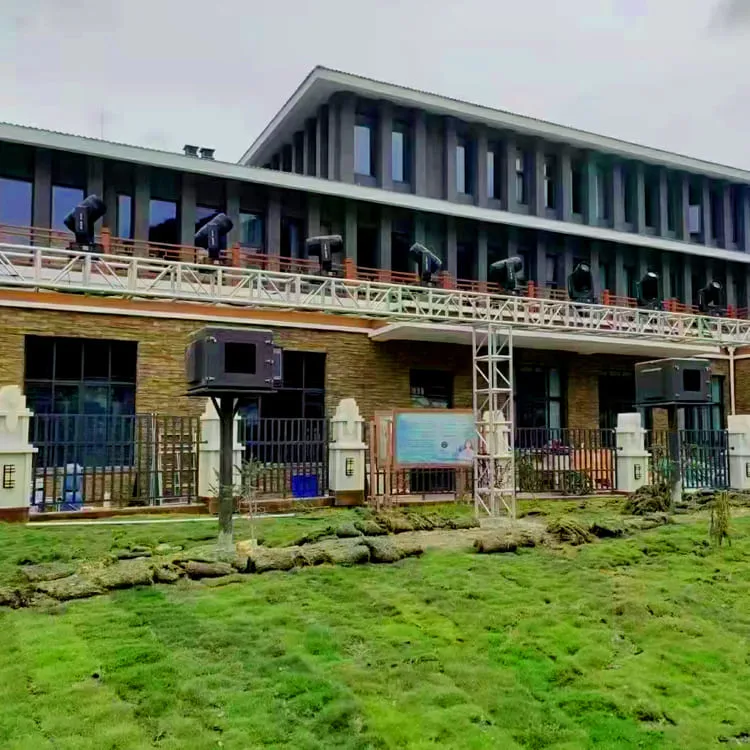

Extreme Climate Box
Integrated dual-system with both active heating and high-speed cooling for extreme latitudes.

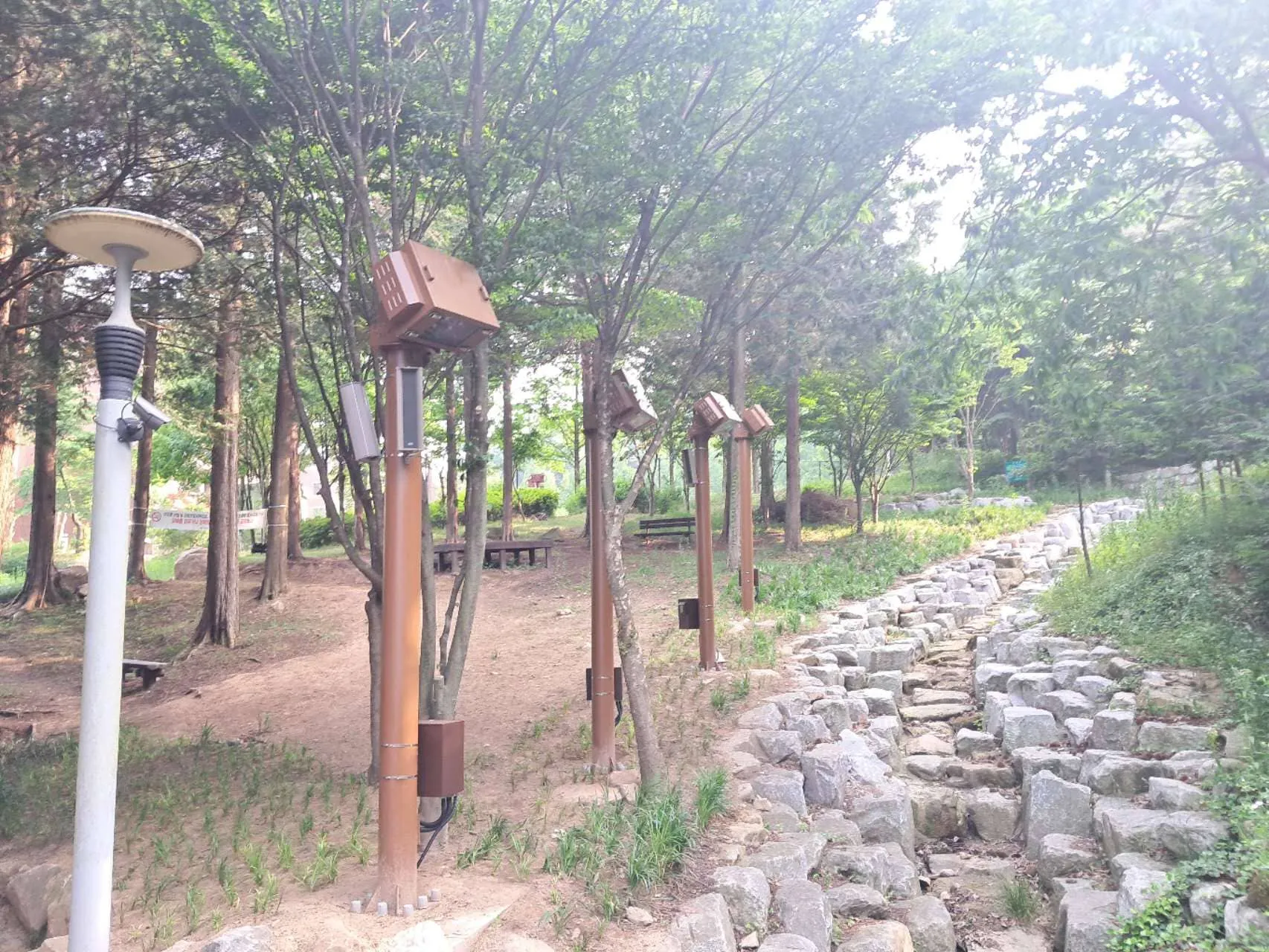

Compact Lite
Space-saving design optimized for smaller commercial projectors without sacrificing protection.
Enterprise Custom
Fully customized dimensions and material selection tailored to your specific projector models.
What is a Pole Mount Projector Enclosure?
A pole-mounted projector enclosure is an engineered housing designed specifically for fixing projectors onto outdoor poles, light standards, or custom support frames. Unlike standard wall-mounted units or simple rain covers, it addresses the unique challenges of 360-degree weather exposure, limited installation space, and specific weight distribution requirements.
Structural Integrity
Manufactured from 201 stainless steel, 304 stainless steel, or galvanized plate, depending on the outdoor corrosion level and project requirements. The structural design can be discussed according to customer demand.
Environmental Protection
Achieves up to IP65 waterproof rating. Features a sealed internal structure, F6 medium-efficiency air filters to block dust and insects, and an internal blowing device to reduce frost and fog on the projection window.
Optical Clarity
Equipped with optical ultra-white glass at the projection port, offering 95% light transmittance. The glass position is customized to align precisely with your projector's lens position and required projection angle.
Pole Mount Enclosure Configurations
Different climates and projector heat loads require specific cooling and sealing methods. Select the configuration that matches your project location.

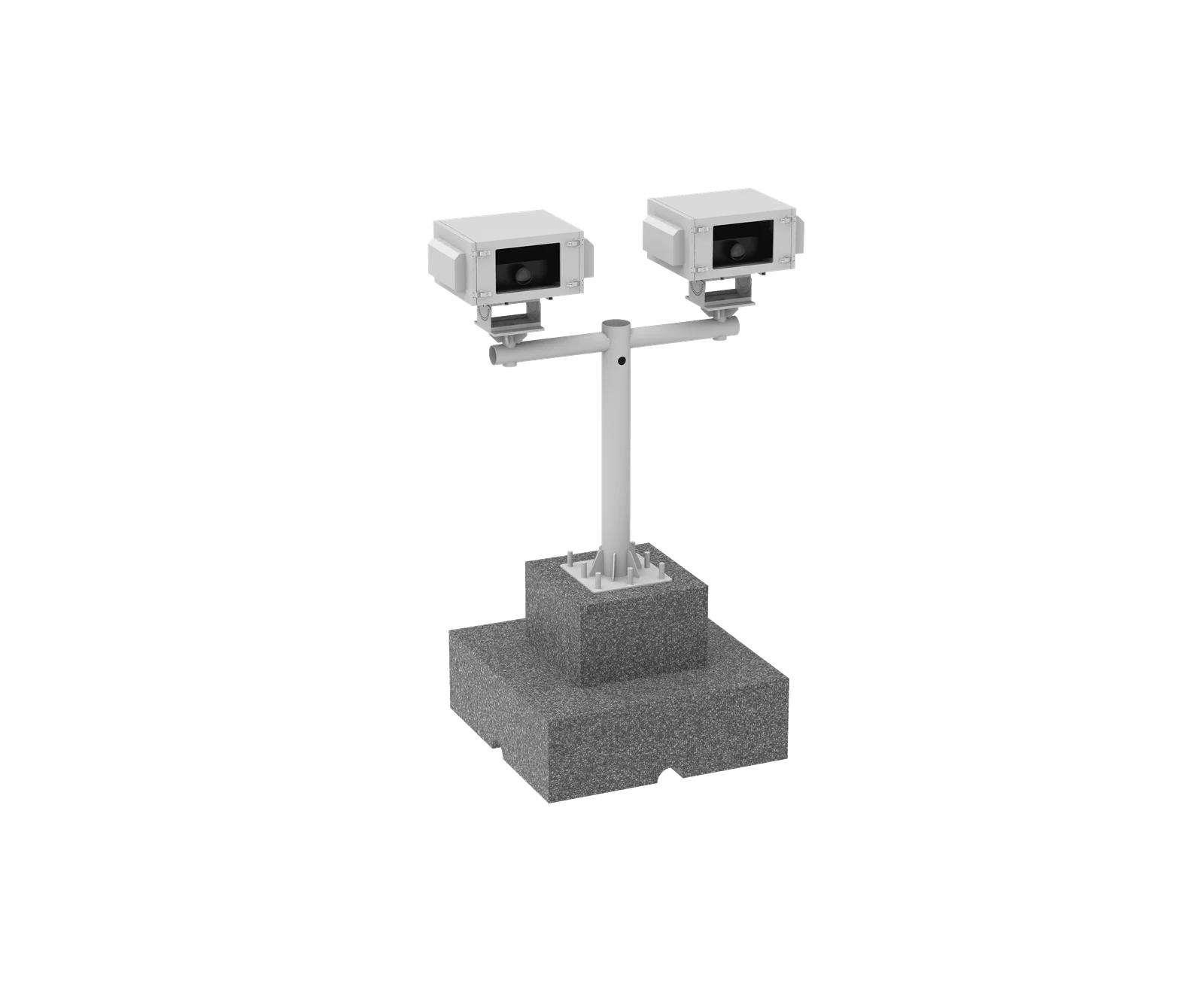

Air-Cooled Projector Enclosure
Utilizes a fresh air system with F6 filtration. Ideal for temperate climates where ambient air is sufficient to cool the projector. Cost-effective for standard lumen projectors.
Discuss Specs

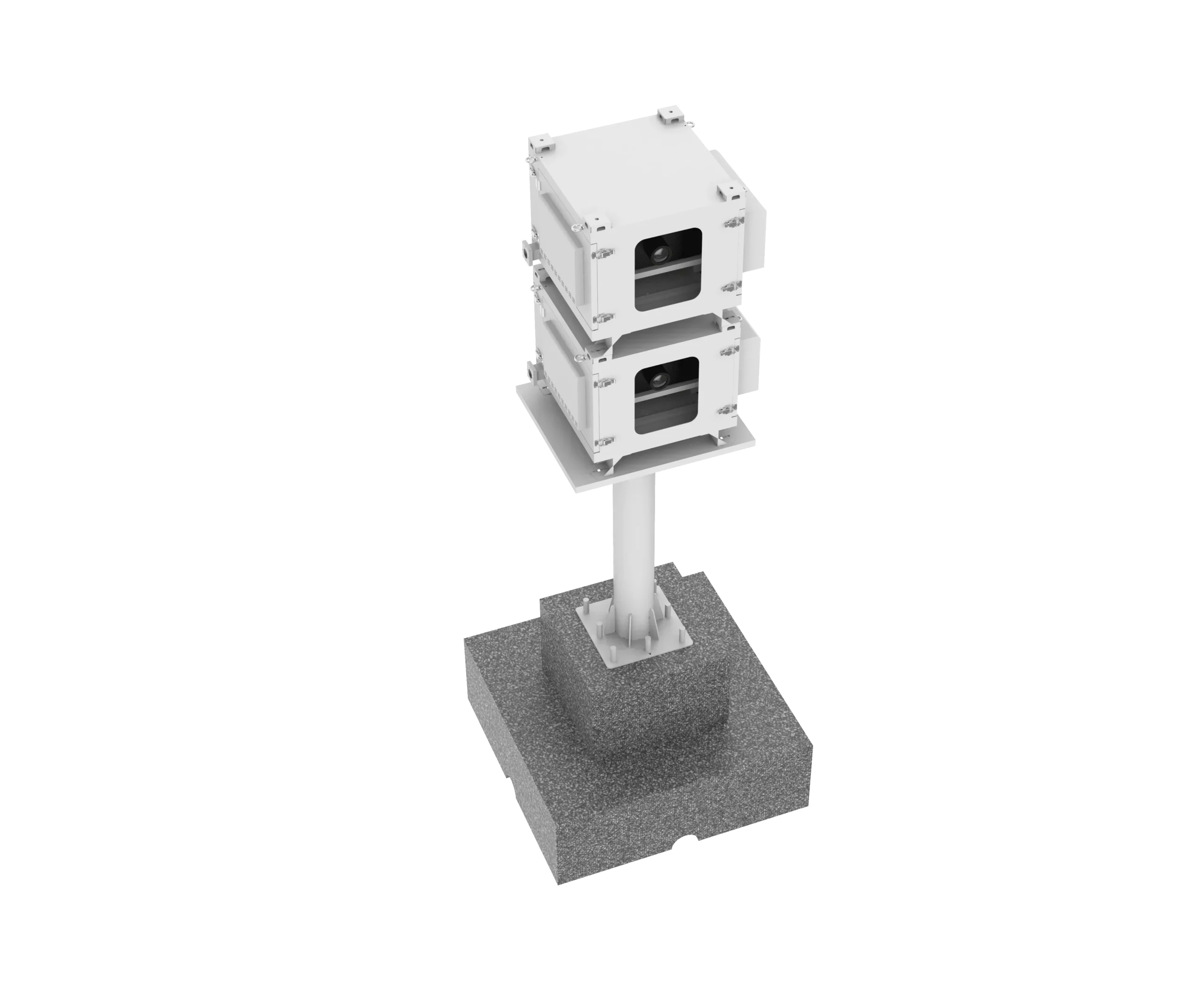

Internal-Circulation AC Enclosure
Features air conditioner compressor cooling for a sealed structure with no fan outlet or special air inlet. Perfect for highly dusty, sandy, or humid coastal environments.
Discuss Specs

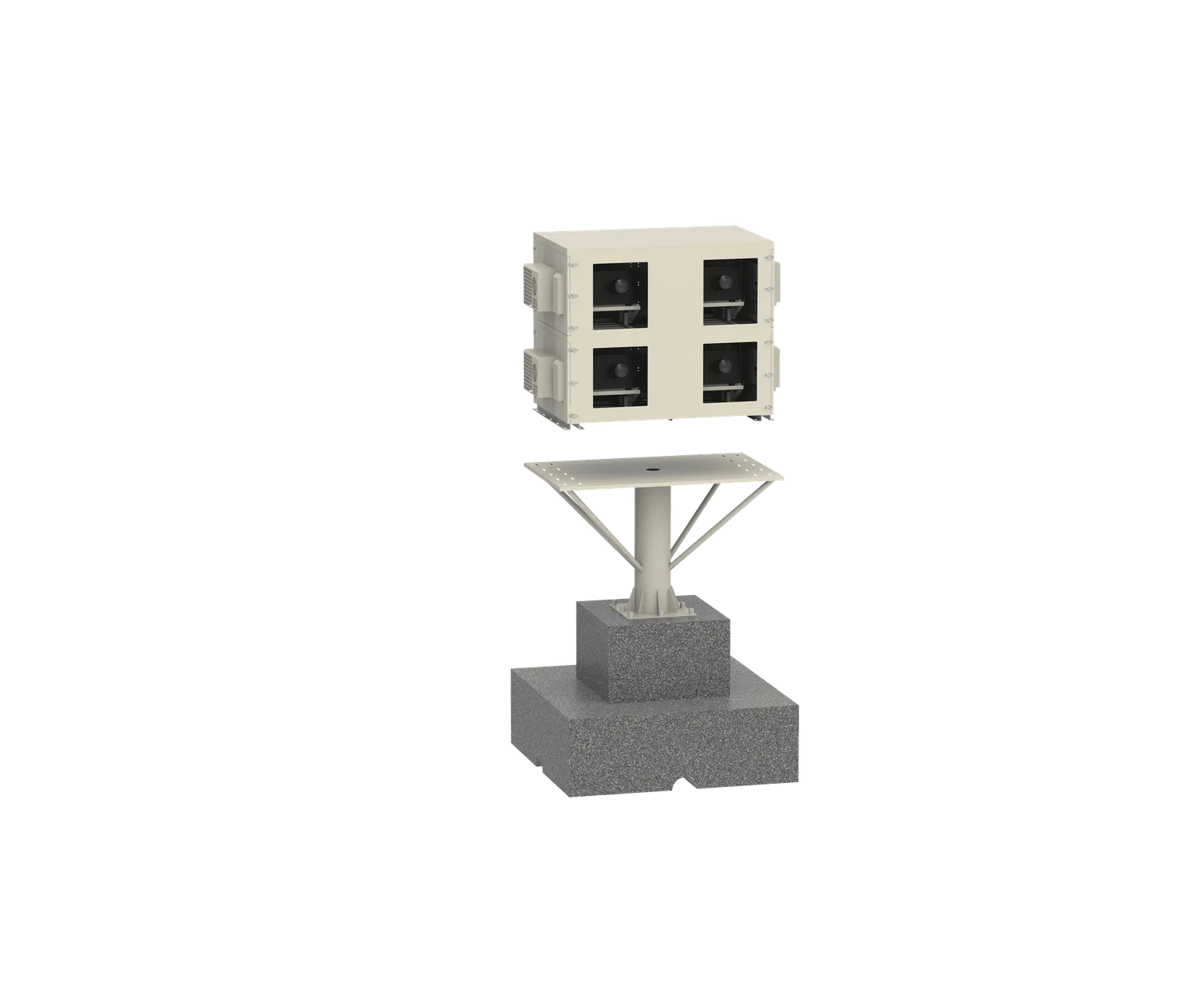

Anti-Condensation Enclosure
Includes heating modules and dehumidification logic to prevent frost and fog on the projection window. Essential for water screen projection or cold-weather projects.
Discuss SpecsEngineered for Reliability
Every component of our custom sheet metal enclosure is designed to protect your investment and simplify field maintenance.
-
Robust Material Options
Choose from 201 stainless steel, 304 stainless steel, or galvanized plate. Enclosure dimensions are customized based on the projector model.
-
Optical Ultra-White Glass
Features 95% light transmittance. An internal blowing device is strategically placed to reduce frost and fog on the projection window.
-

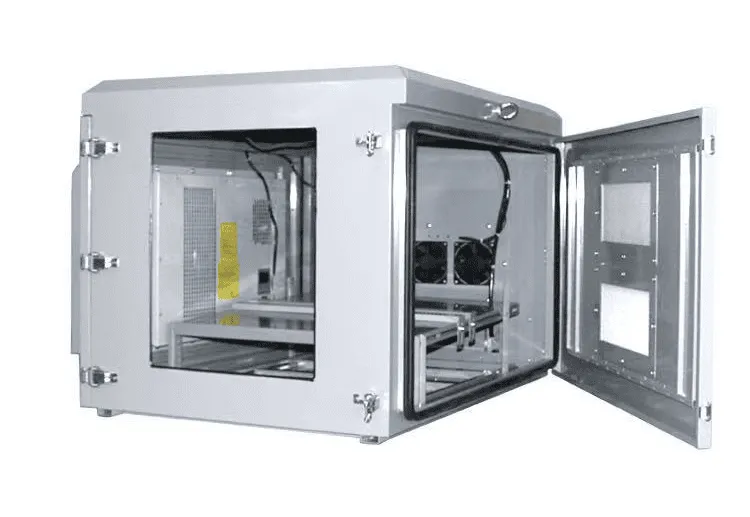

Internal Layout & Power
Includes an internal bracket for precise projector positioning and a reserved 16A or 10A multifunctional socket for easy power connection.
-
Advanced Filtration
F6 medium-efficiency air filters provide robust dustproof and anti-mosquito protection, crucial for park and roadside installations.
Engineering Challenges Solved
Outdoor projector failures are often related to heat, humidity, dust, and poor enclosure design. A custom outdoor projector housing addresses these field conditions directly.
Pole Position Limits
Pole structures are often fixed. We review mounting holes and bracket designs according to your installation drawing to avoid on-site modifications.
Rain & Water Vapor
360-degree exposure requires strict waterproof sealing. Our IP65 projector enclosure design prevents rain ingress while managing internal airflow.
Dust & Insects
Scenic and park areas have high debris. F6 medium-efficiency air filters block dust and mosquitoes from entering the sensitive projector optics.
Heat Buildup
High-lumen projectors generate massive heat. We configure fresh air or air-conditioned cooling based on the projector model and site conditions.
Condensation & Fog
Coastal or lakeside projects face high humidity. Built-in dehumidification and anti-condensation heating logic protect the lens from fogging.
Cable Routing
Wiring direction on poles is strict. Cable entry points and internal 16A/10A sockets are reviewed according to site wiring layout.
Maintenance Access
Field service space is limited. The maintenance door direction is designed to allow easy access for technicians without removing the box.
Projection Angle
The projection window must align with the lens position. We review cabinet drawings to ensure the optical path is clear and unblocked.

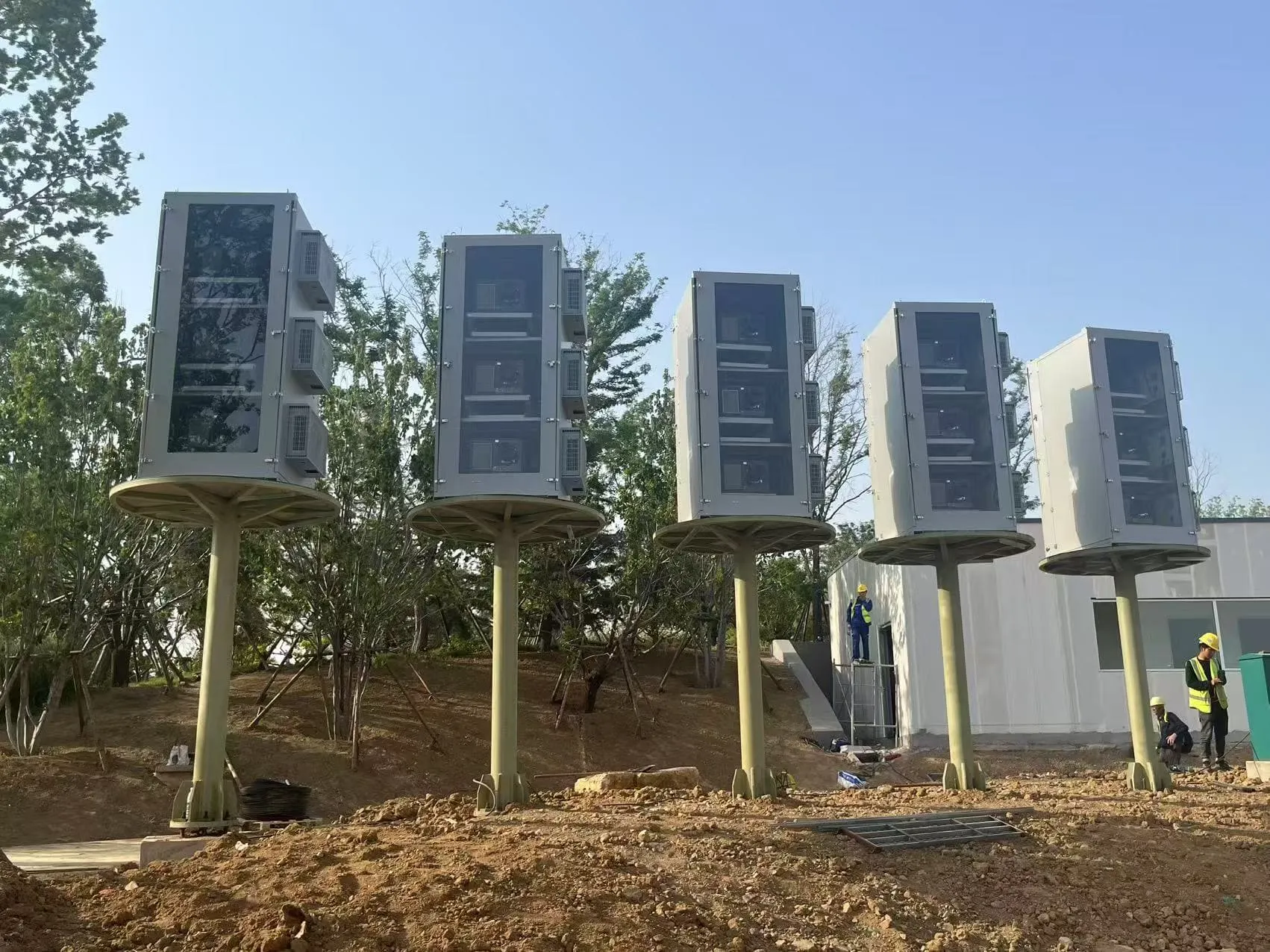

Bracket, Mounting Holes & Site Fit
Pole-mounted installation requires precise coordination. The pole diameter or pole structure needs to be shared so the mounting bracket can be reviewed with your installation drawing.
Custom Mounting Coordination
Mounting holes should match the pole frame or support structure exactly. We ensure the enclosure weight distribution is considered, and the bracket design aligns with your site's physical constraints.
* Load, wind exposure, and structural safety should be reviewed by the project engineering team according to local site requirements.

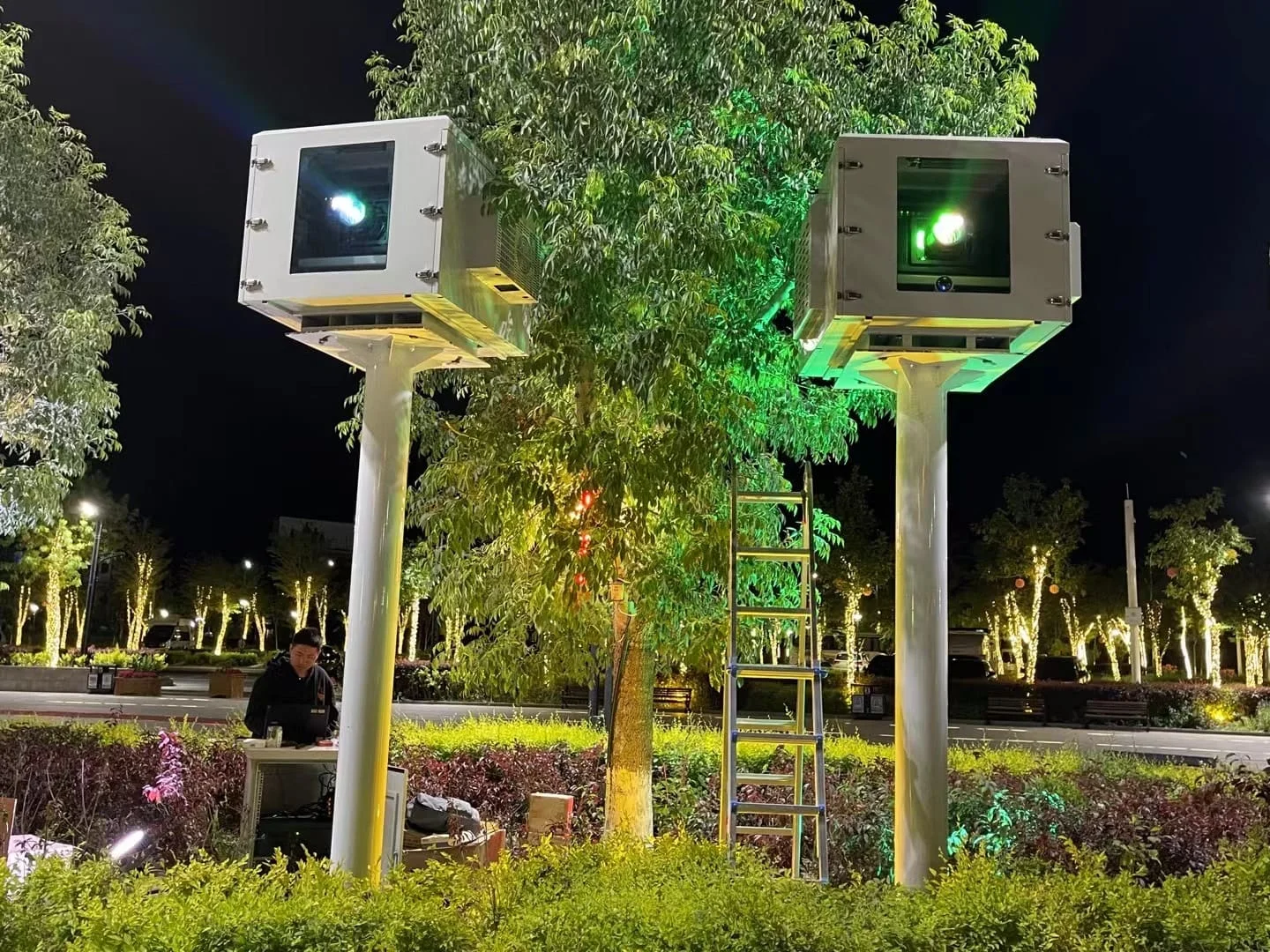

Wiring & Maintenance Access
Cable entry direction must match your site wiring plan to maintain waterproof integrity. Furthermore, the maintenance door direction is designed to allow field service without dismounting the entire unit.
Intelligent Temperature Control Logic
A pole mount enclosure cannot rely on sealing alone. High-lumen projection requires active climate management to prevent overheating and condensation.
Automated Cooling
Fan cooling starts when the box temperature is higher than the preset value (e.g., 35°C) by ≥ 2°C. The fan stops working when the temperature falls below the preset value by ≤ 2°C.
Automated Heating & Dehumidification
Heating starts when temperature is ≤ 5°C and humidity is ≥ 85%. Heating stops when the internal environment warms to 10°C and humidity drops to ≤ 75%.
Remote Monitoring & Sensor Options
Remote monitoring helps project teams check enclosure status and respond earlier when site conditions change, reducing unnecessary truck rolls for pole-mounted installations.
Ideal for Engineering Projects
Our pole-mounted projector enclosures are engineered to solve specific environmental and installation constraints across various outdoor applications.

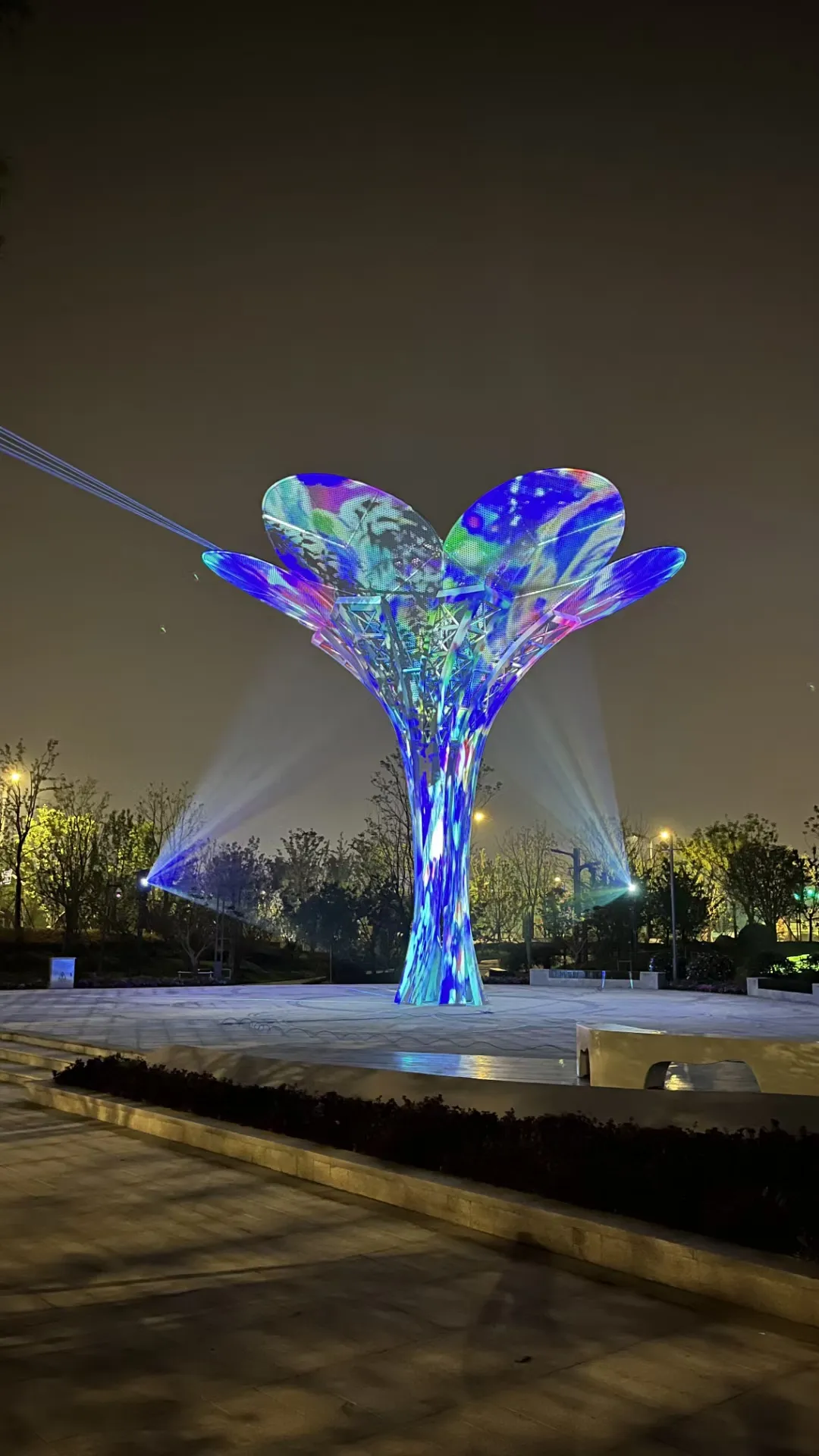

Building Projection
Fixed pole positions require precise lens alignment and custom bracket design to hit the facade accurately.

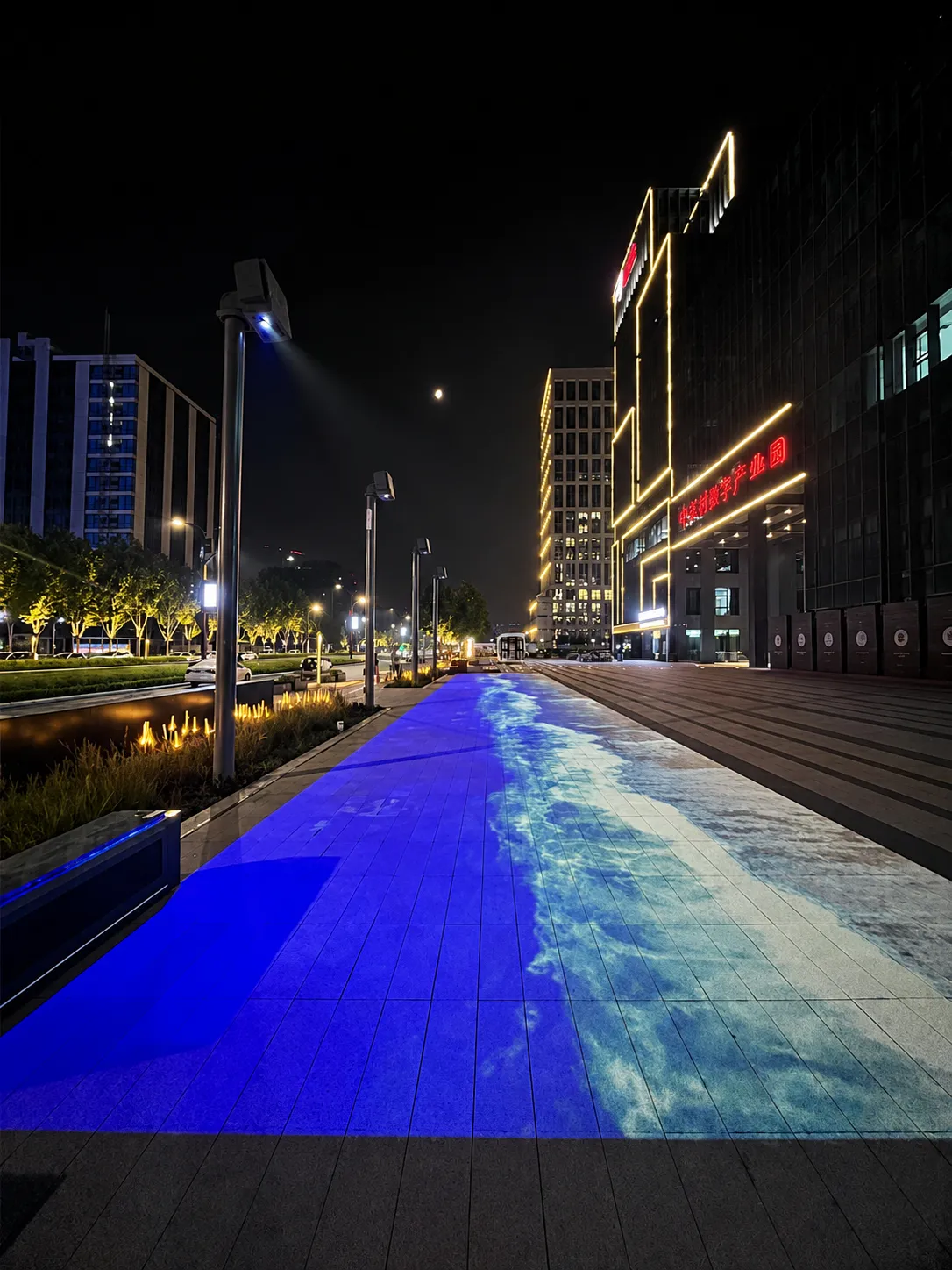

Scenic Night Tours
Dusty and humid environments require F6 filters and anti-condensation features to maintain image quality.

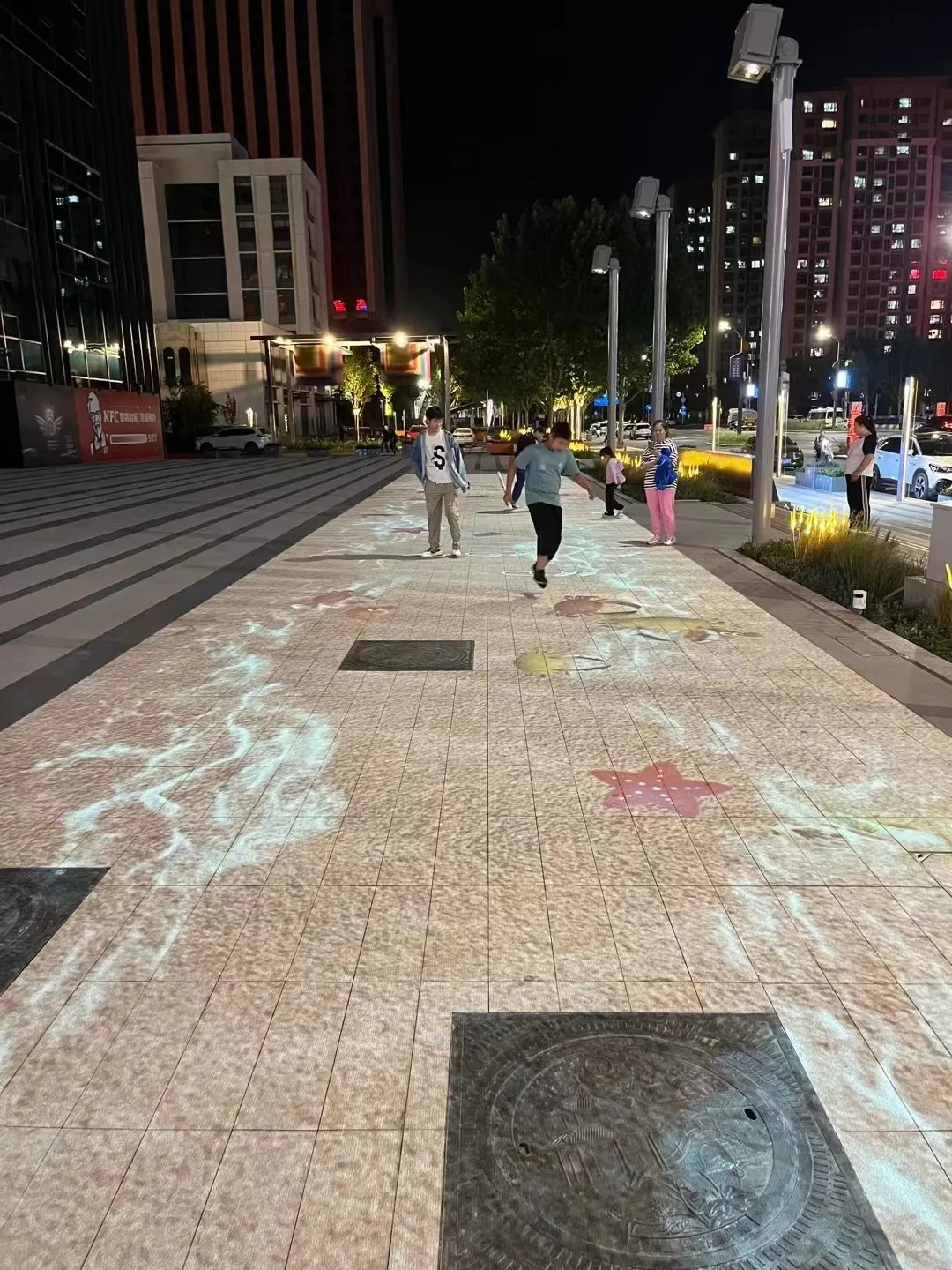

Commercial Plazas
High-traffic areas need secure, lockable maintenance doors and hidden cable entry for safety and aesthetics.

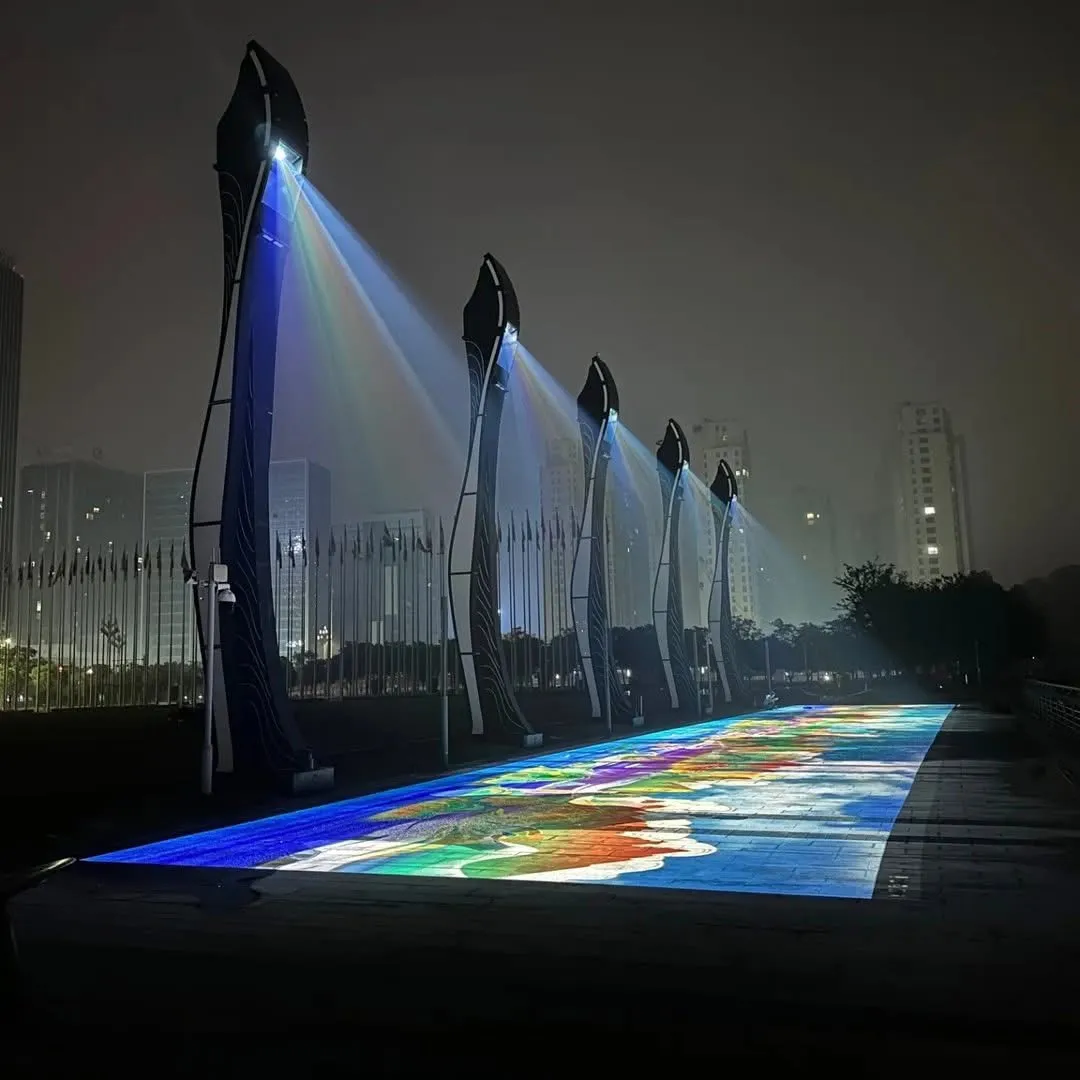

Coastal Projects
Salt spray and high humidity demand 304 stainless steel and internal circulation air conditioning.
Simple Pole Box vs. Pro Enclosure
Why DIY boxes or simple rain covers fail in professional outdoor engineering projects.
| Feature | Simple Rain Cover / DIY Box | ShiRui Pole Mount Enclosure |
|---|---|---|
| Waterproof Sealing | Basic (Prone to leaks) | IP65 Engineered Sealing |
| Active Cooling | None or single exhaust fan | Fresh Air / AC with Temp Logic |
| Bracket & Mounting Holes | Generic (Requires on-site drilling) | Reviewed with Installation Drawing |
| Condensation Control | No | Heating Module & Dehumidification |
| Lens Alignment | Often blocked by box edges | Optical Glass Aligned with Lens |
Verified Manufacturing Capability
Buyers can review factory videos, exhibition materials, and project case photos before sending project specifications.
Sheet Metal Processing
Review our production environment and bracket assembly process. We handle self-development, design, and production.
Laser Cutting
Our outdoor network cabinet and projector waterproof case experience is validated through consistent industry presence.
Welding
Certification documents are available on request to help your engineering team confirm project compliance.
Customization Starts Here
How we match the enclosure to your projector model and pole structure.
Send Projector Model
We need the exact model to determine enclosure dimensions, lens position, and heat load.
Share Pole Drawing
Provide pole diameter, site photos, and installation method to review bracket and mounting holes.
Confirm Configuration
Choose cooling method, material, cable entry direction, and sensor options based on site environment.
Review & Quote
Discuss sample approval or project order based on the finalized cabinet drawing and specs.
Frequently Asked Questions
What is the difference between a pole-mounted projector enclosure and an outdoor projector housing?
What pole information should I provide before quotation?
What is internal circulation air conditioning?
Can the enclosure reduce fog or frost on the projection window?
Can the bracket and mounting holes be customized?
Discuss Your Project
To provide an accurate quote and cabinet drawing, please share your project specifics. We need to know your projector model, pole structure, expected cooling method, and site environment.
