Projector Enclosure Outdoor for Fixed Engineering Projects
When deploying high-lumen projectors in scenic night-tours, building facades, or theme parks, a reliable projector enclosure outdoor is essential. An engineered outdoor projector enclosure protects sensitive AV equipment from rain, dust, and temperature fluctuations. Unlike simple covers, a custom waterproof projector enclosure or outdoor projector housing integrates climate control, optical glass, and precise mounting structures to ensure long-term stability.
Beyond a Simple Rain Cover: Engineering-Grade Protection
The term "projector enclosure outdoor" refers specifically to heavy-duty, climate-controlled outdoor projector cabinets designed for permanent installations. Ordinary rain covers or simple DIY metal boxes cannot manage the severe heat buildup of high-lumen projectors or prevent internal condensation during temperature drops.
- Constructed from 201 stainless steel, 304 stainless steel, or galvanized plate depending on site corrosion levels.
- Features an IP65 waterproof sealing structure combined with customized cooling layouts to balance airflow and moisture resistance.
- Equipped with optical ultra-white glass (95% light transmittance) to ensure projection clarity without distortion.
Solving Critical Outdoor Projection Challenges
Outdoor projector failures are often related to heat, humidity, dust, and poor enclosure design. A purpose-built weatherproof projector enclosure addresses these engineering constraints directly.

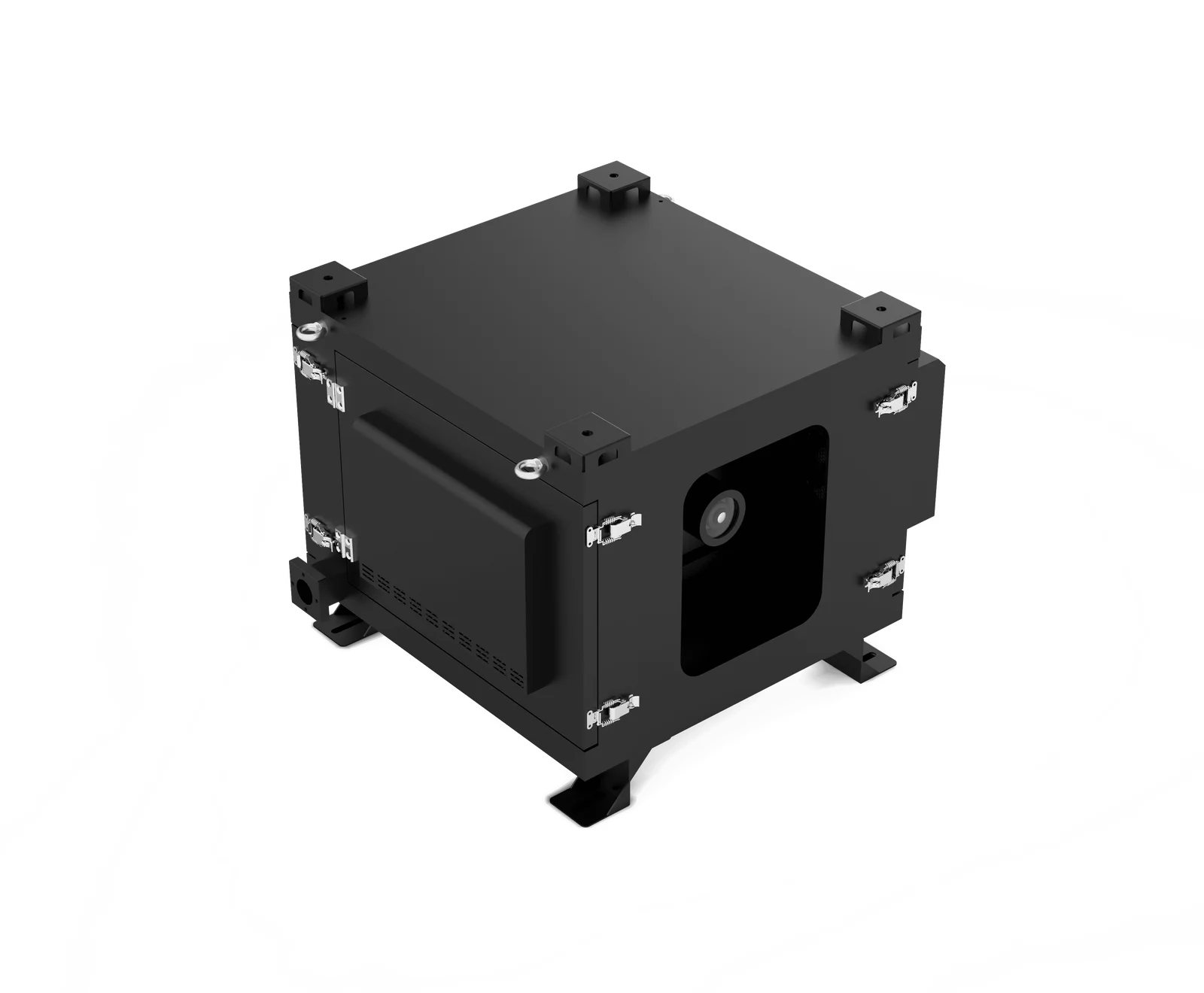

1. Continuous Outdoor Exposure
Scenario: Projectors installed in scenic spots face year-round weather.
Solution: A weatherproof projector enclosure provides a rigid physical barrier against direct rain, UV rays, and physical impacts, ensuring continuous operation.

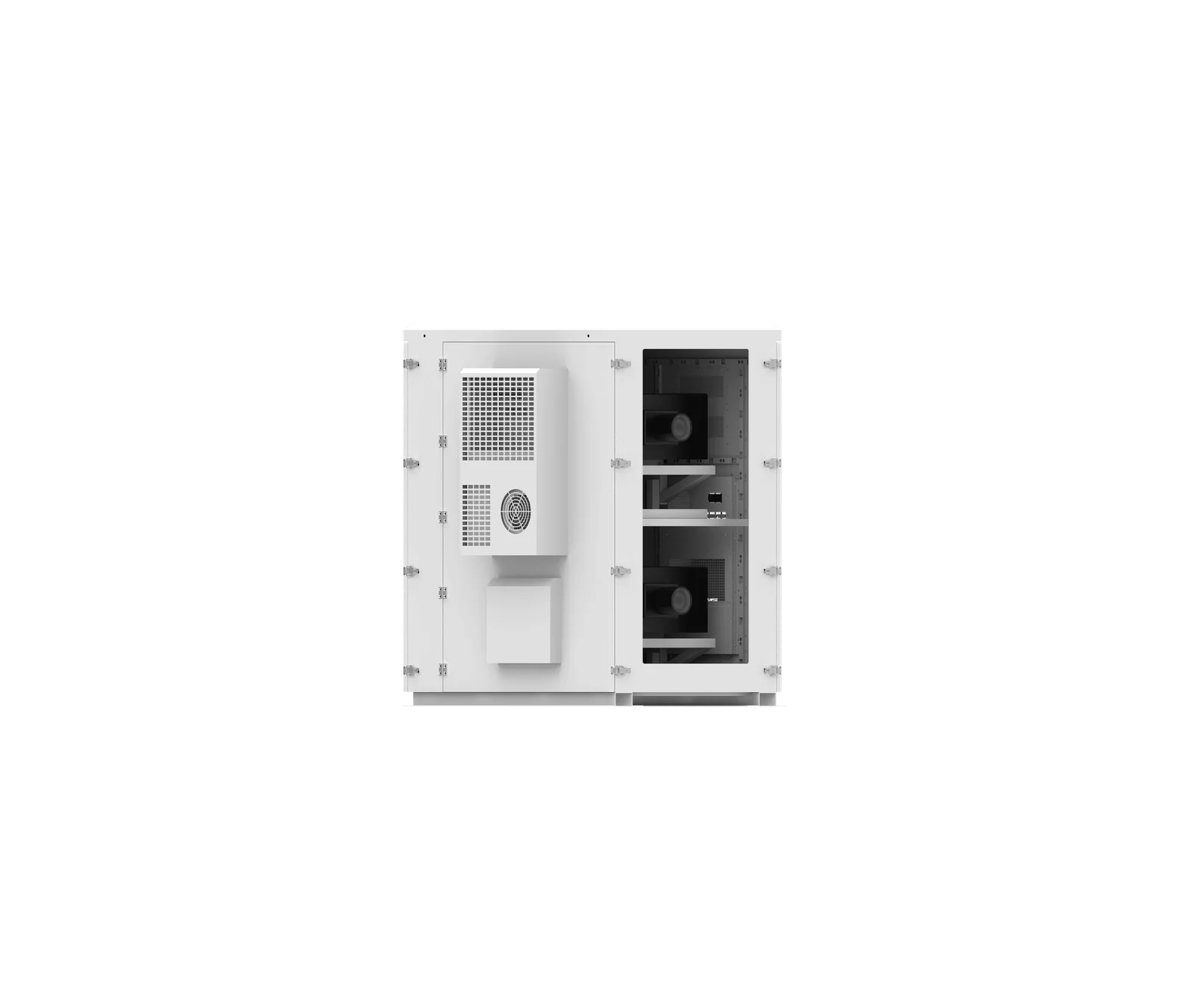

2. Dust and Insect Intrusion
Scenario: Sand and mosquitoes block projector fans and lenses.
Solution: Equipped with F6 medium-efficiency air filters and anti-mosquito nets, the enclosure blocks particles while allowing necessary airflow.
3. High Heat Buildup
Scenario: High-lumen projectors generate massive heat; sealed boxes cause overheating.
Solution: Air-cooled or air-conditioned projector enclosures actively manage internal temperatures based on thermal load.

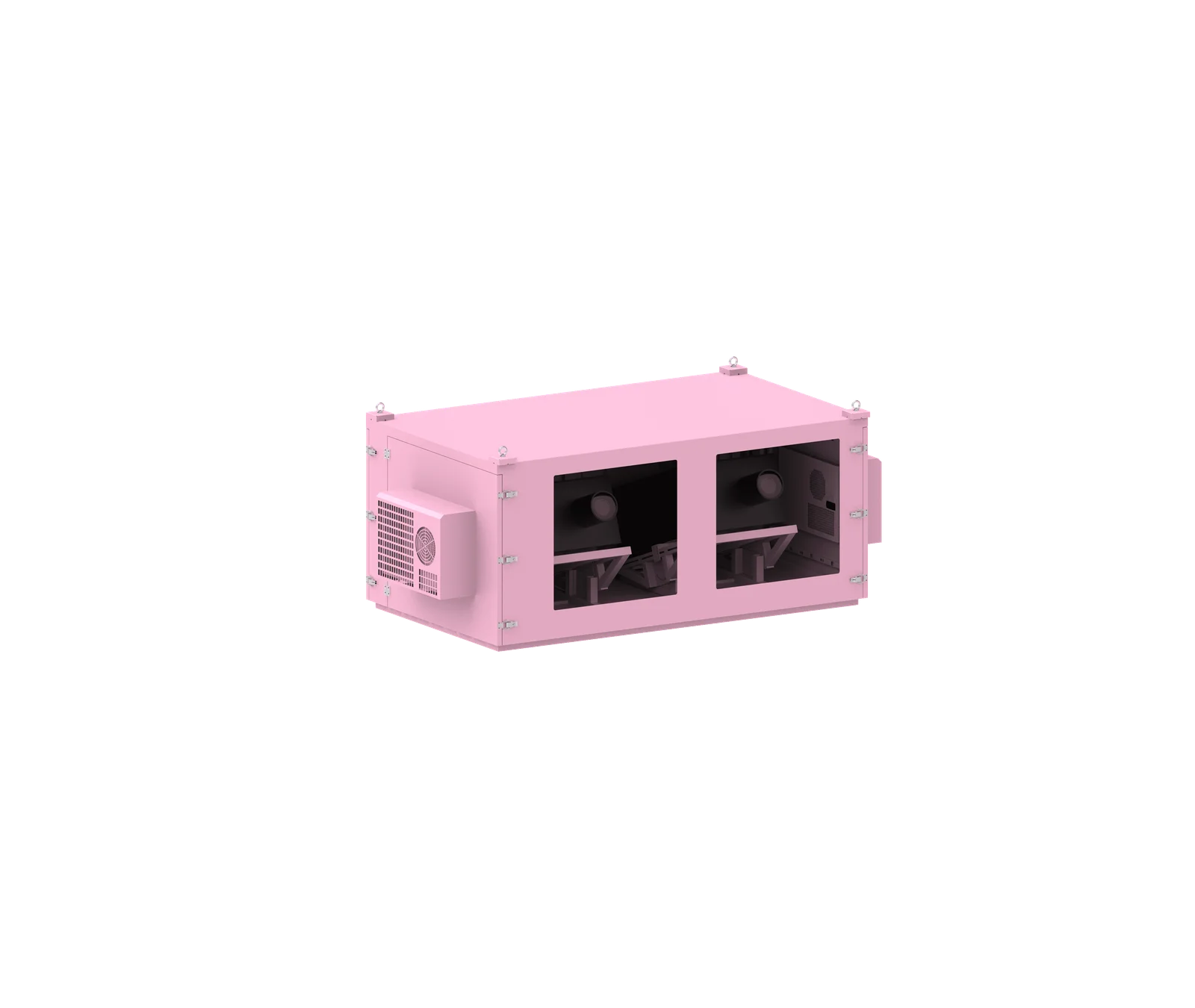

4. Humidity & Condensation
Scenario: Temperature drops cause fogging on the projection window.
Solution: An anti-condensation projector enclosure uses heating modules and internal blowing devices to eliminate frost and fog on the optical glass.

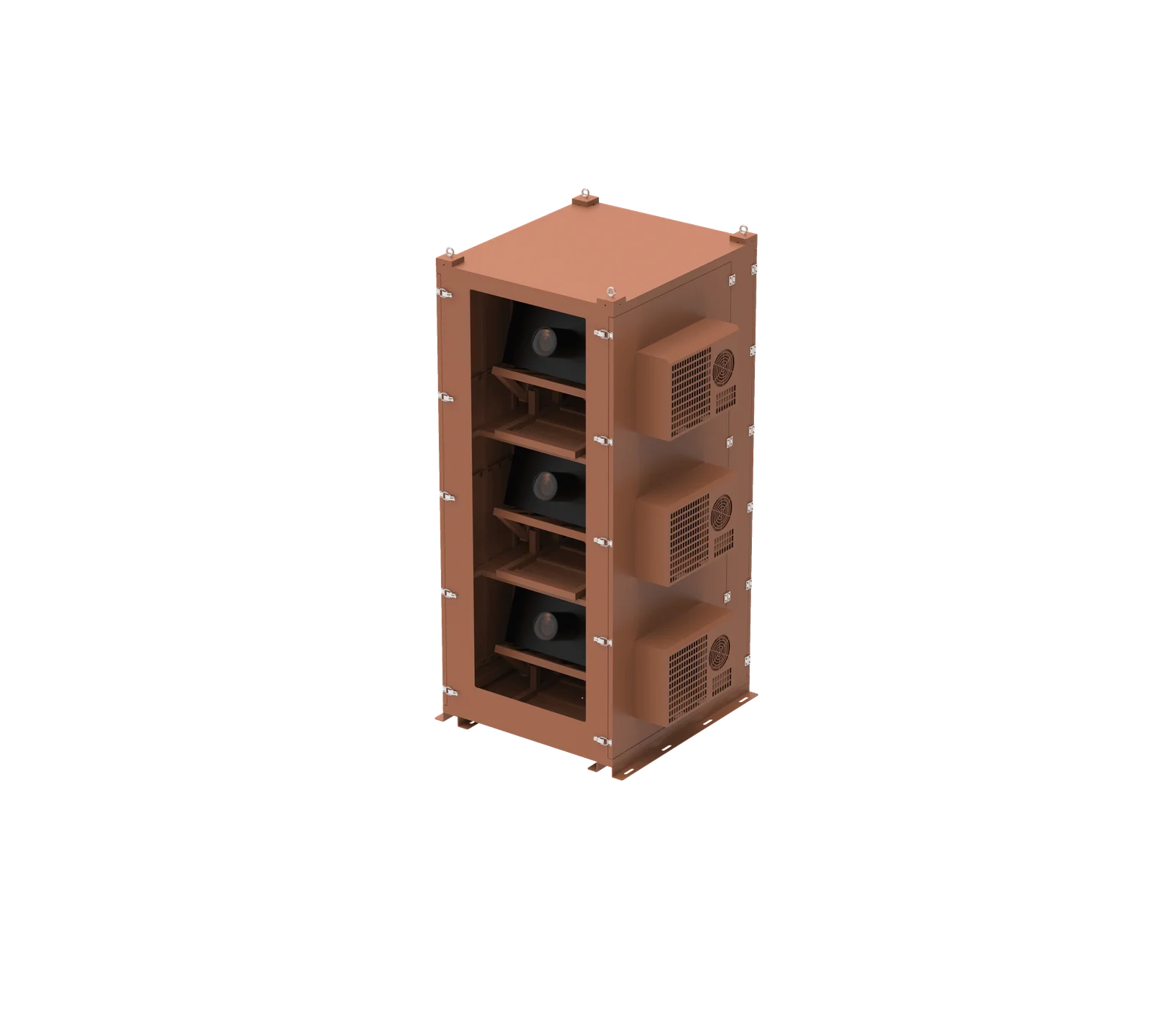

5. Site Installation Limits
Scenario: Fixed poles or tight wall spaces restrict mounting and wiring.
Solution: Custom sheet metal enclosures allow pre-reserving mounting holes, cable entry directions, and maintenance access before production.

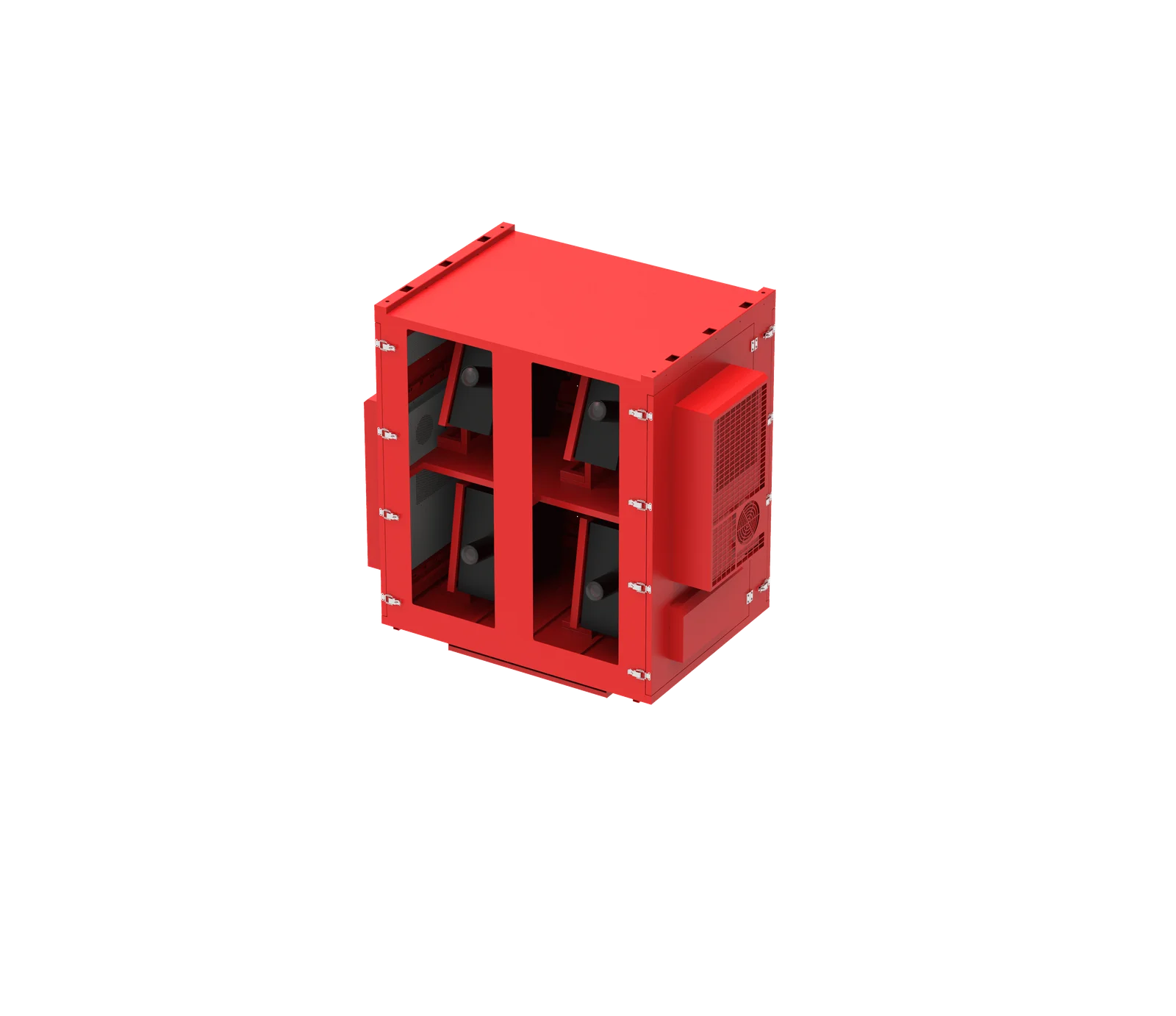

6. Projector Model Matching
Scenario: Generic boxes block projector exhaust vents or misalign with lenses.
Solution: Custom outdoor projector enclosures are designed according to specific projector dimensions, lens positions, and airflow directions.
Specialized Outdoor Projector Enclosure Categories
Different environments require different protection strategies. From standard IP65 housings to complex internal-circulation air-conditioned cabinets, we configure the exact solution for your project.
IP65 / Waterproof Projector Enclosure
Fit For: General outdoor building projection.
Benefit: Strong sealing against rain and dust while maintaining passive or active ventilation.
Air-Cooled Projector Enclosure
Fit For: Standard climates with moderate heat.
Benefit: Uses fresh air systems with F6 filters to exhaust heat without letting in harmful particles.

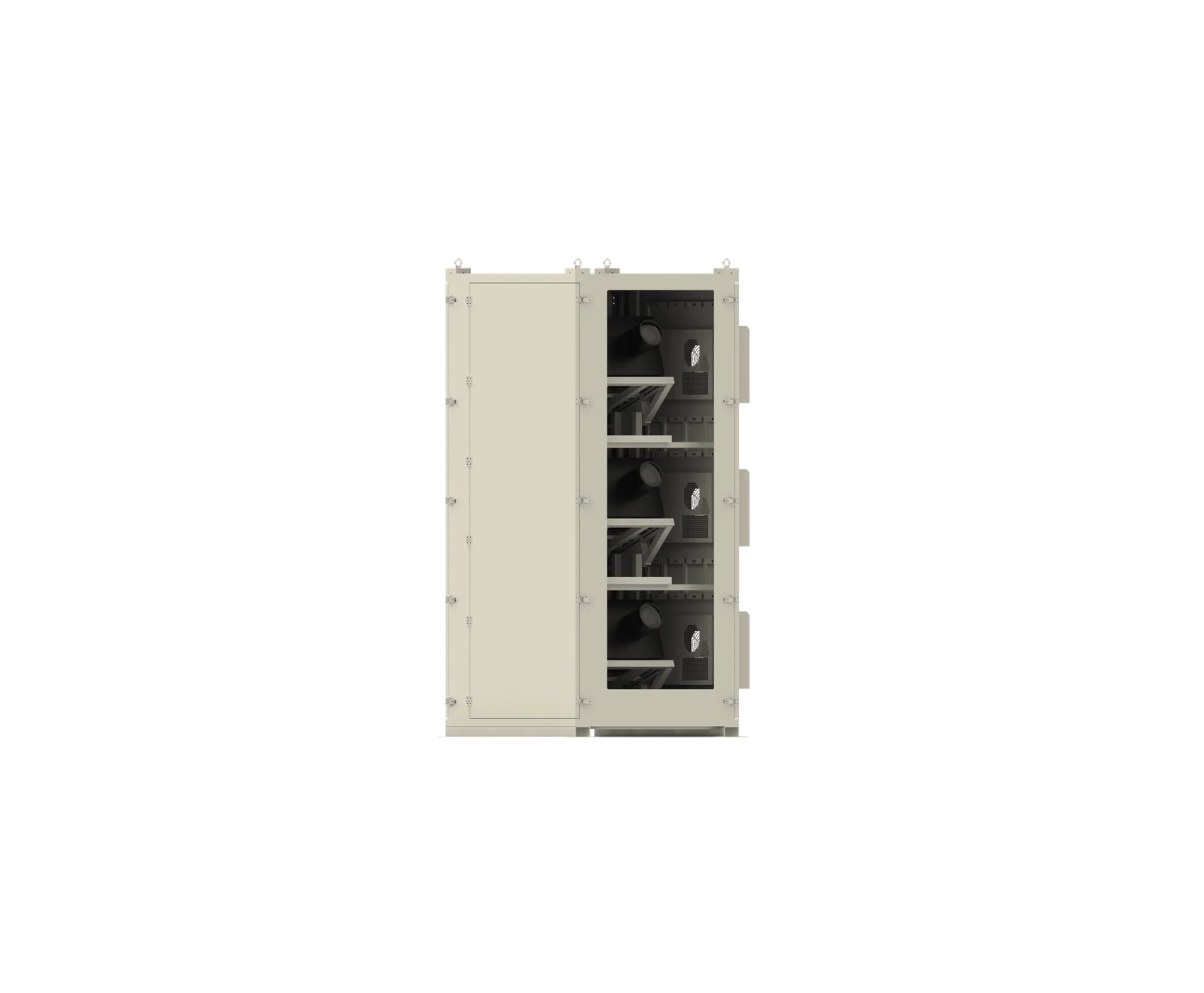

Air-Cooled + Air-Conditioned Enclosure
Fit For: High-lumen projectors in hot regions.
Benefit: Combines ambient air cooling with active compressor cooling to handle extreme thermal loads.
Internal-Circulation AC Enclosure
Fit For: Subway projects, coastal areas, dusty deserts.
Benefit: Completely sealed structure with no external air exchange, utilizing internal AC to cool equipment.
Remote-Control Series
Includes: Remote Air-Cooled, Remote AC, Remote Internal-Circulation.
Benefit: Connects to IoT platforms for real-time monitoring of temp, humidity, and alarms without field visits.
Anti-Condensation Projector Enclosure
Fit For: High-humidity night tours or winter setups.
Benefit: Integrates heating and internal blowing to prevent fog or frost on the projection window.
High-Lumen / Custom Sheet Metal
Includes: Non-Standard Custom Projector Enclosure.
Benefit: Dimensions, brackets, and sockets (10A/16A) are tailored exactly to heavy-duty professional AV gear.

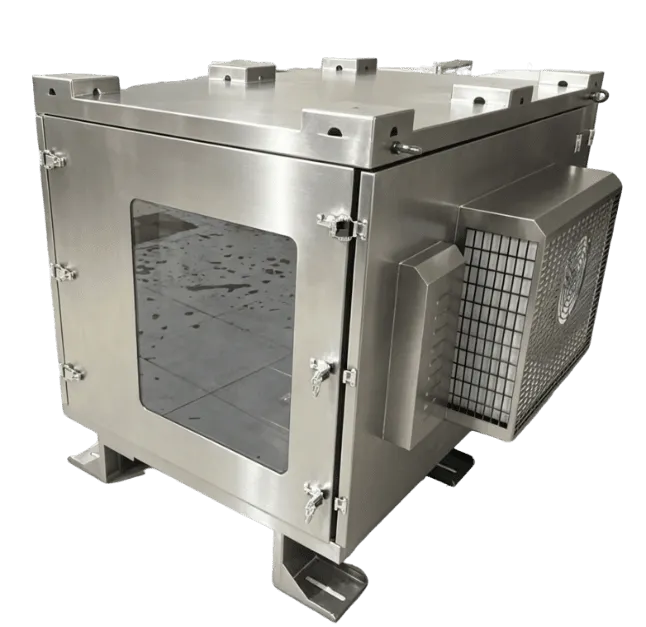

Engineered Structure for Field Reliability
A true waterproof projector box is more than just metal plates. It is a highly integrated system of optics, power, climate control, and physical security.
Materials & Waterproof Sealing
Constructed from 201/304 stainless steel or galvanized plate. The waterproof sealing structure ensures IP65 protection, keeping internal brackets and wiring safe from heavy rain.
Optical Glass & Filtration
Uses optical ultra-white glass at the projection port with 95% light transmittance. Air intakes feature F6 medium-efficiency air filters for dustproof and anti-mosquito filtration.
Internal Configuration
Reserved 16A or 10A multifunctional sockets. Designed with dedicated cable entry points, precise mounting holes, and a maintenance door that allows field service without removing the entire box.
Intelligent Climate Control Logic
A projector protective enclosure cannot rely on passive cooling. Our built-in temperature control boards manage heating, dehumidification, and cooling automatically based on precise sensor data.
Fresh Air System
Draws in filtered outside air and exhausts hot air. Suitable for standard environments.
- • Fan cooling logic: Starts when box temperature is higher than the preset value (35°C) by ≥ 2°C.
- • Fan stops working when temperature is below the preset value by ≤ 2°C.
Fresh Air + Air Conditioning
Combines ventilation with active compressor cooling. Ideal for long-hour projection projects in hot climates.
- • Handles extreme heat peaks.
- • Heating logic: Starts when temperature ≤ 5°C and humidity ≥ 85%.
- • Heating stops when temperature reaches 10°C and humidity ≤ 75%.
Internal Circulation AC
A fully sealed cabinet with no fan outlet and no special air inlet. Perfect for subway projects, coastal projects, or highly dusty sites.
- • Zero external air exchange.
- • Built-in internal blowing device to reduce frost and fog.
- • Complete isolation from corrosive coastal salt spray.
Remote Monitoring for Project Teams
For large-scale installations, physically checking every outdoor projector cabinet is inefficient. Remote monitoring helps project teams check enclosure status and respond earlier when site conditions change.
Why Every Enclosure Needs Customization
Different projector brands have varying dimensions, lens positions, and airflow directions. A one-size-fits-all box often blocks air outlets or misaligns the projection window. Customization starts from the projector model, site photos, installation method, and cabinet drawing.
1. Projector Matching
We review the specific projector model to align enclosure dimensions, ensure the lens position matches the optical glass, and verify airflow direction.
2. Site Installation

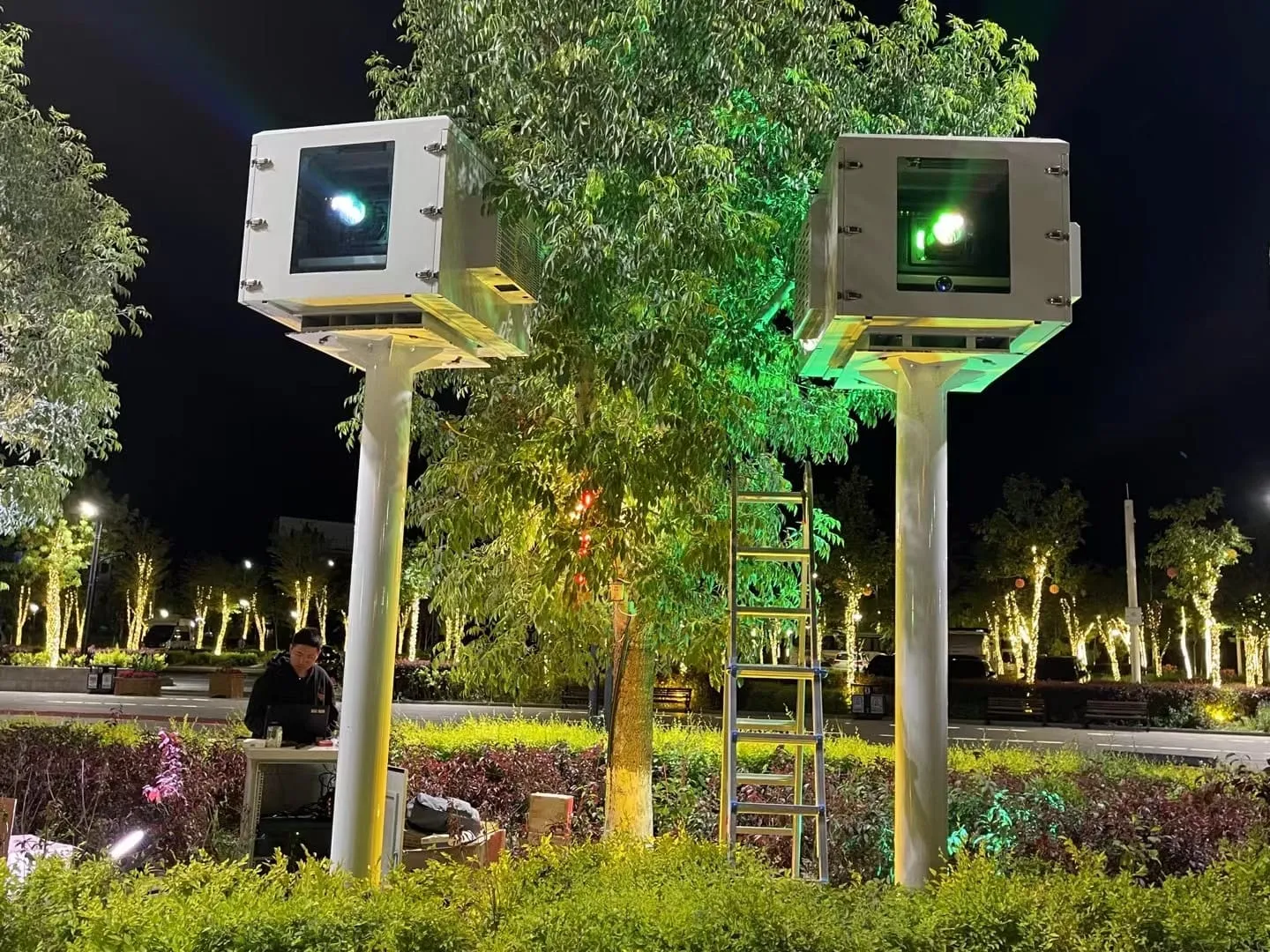

Whether it's pole-mounted installation, wall-mounted installation, or floor-standing installation, we design the internal bracket and mounting holes accordingly.
3. Wiring & Maintenance
Cable entry points must match site wiring directions. The maintenance door is configured to allow easy field access based on surrounding space limits.
4. Production Process
From cabinet drawing review to sample approval, we ensure mass production stability for large-scale engineering project orders.
Proven in Diverse Outdoor Applications
Our customized outdoor projector enclosures secure valuable AV assets across commercial, municipal, and entertainment sectors.

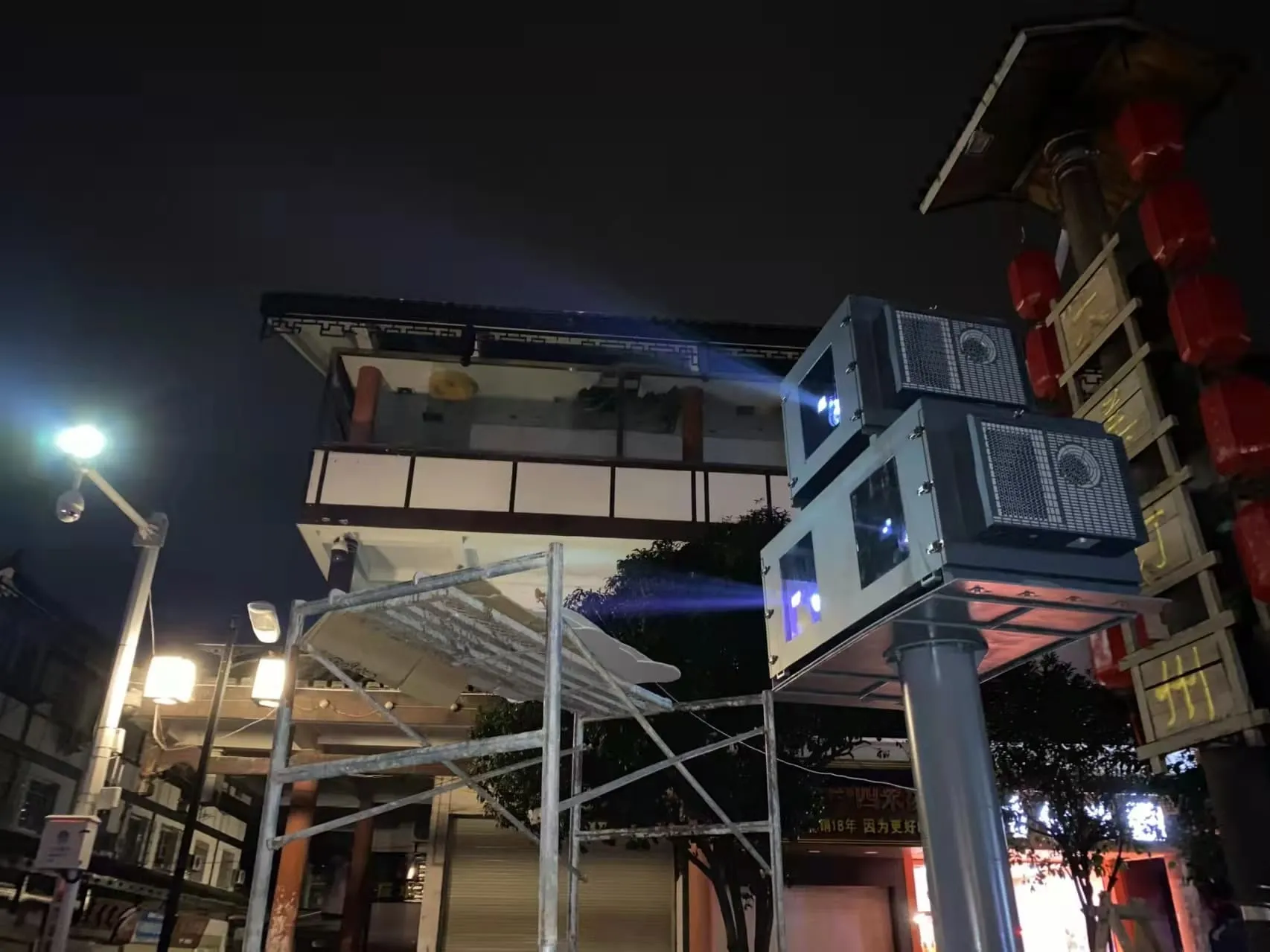

Building & 3D Mapping
Requires precise lens alignment and high-altitude waterproof sealing.

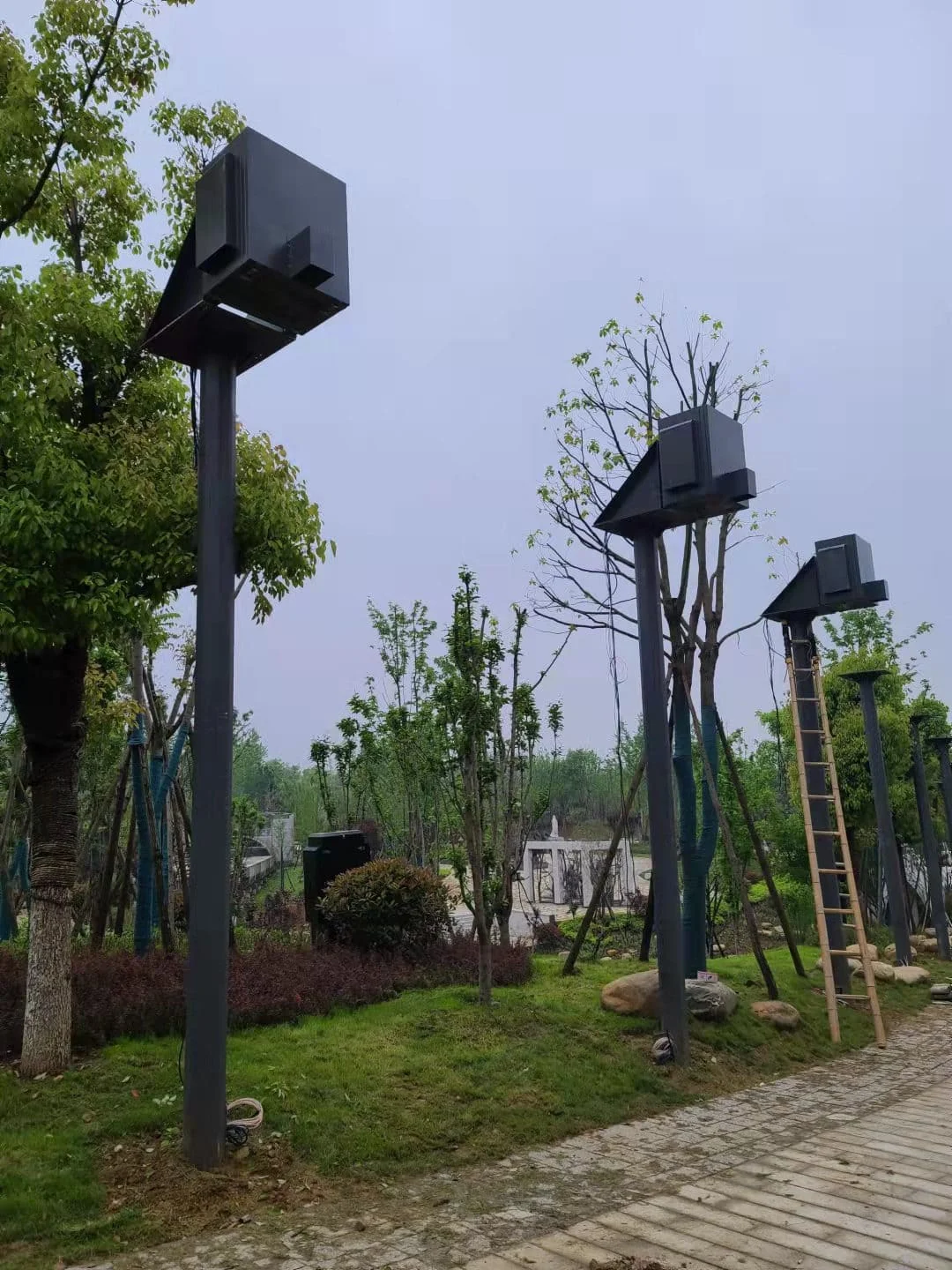

Scenic Night-Tours
Demands anti-mosquito filtration and anti-condensation heating.
Water Screen Projects
Faces extreme humidity; needs sealed internal circulation AC.
Theme Parks & Plazas
Requires robust physical protection and long-hour cooling stability.
Simple Projector Cover vs Projector Enclosure Outdoor
Why DIY solutions fail in professional engineering environments.
Simple Projector Box / Cover
- ❌ Poor waterproof sealing; water leaks during storms.
- ❌ No intelligent cooling; causes projector shutdown.
- ❌ No heating module; projection window fogs up easily.
- ❌ Generic sizing; blocks cables or misaligns with lenses.
- ❌ Lacks power socket and remote monitoring integration.
Custom Outdoor Projector Enclosure
- ✔ IP65 waterproof sealing with 201/304 stainless steel.
- ✔ Active cooling (Fresh air or AC) based on thermal logic.
- ✔ Anti-condensation heating and internal blowing.
- ✔ Customized to projector model dimensions and lens position.
- ✔ Built-in 10A/16A sockets, F6 filter, and sensor options.

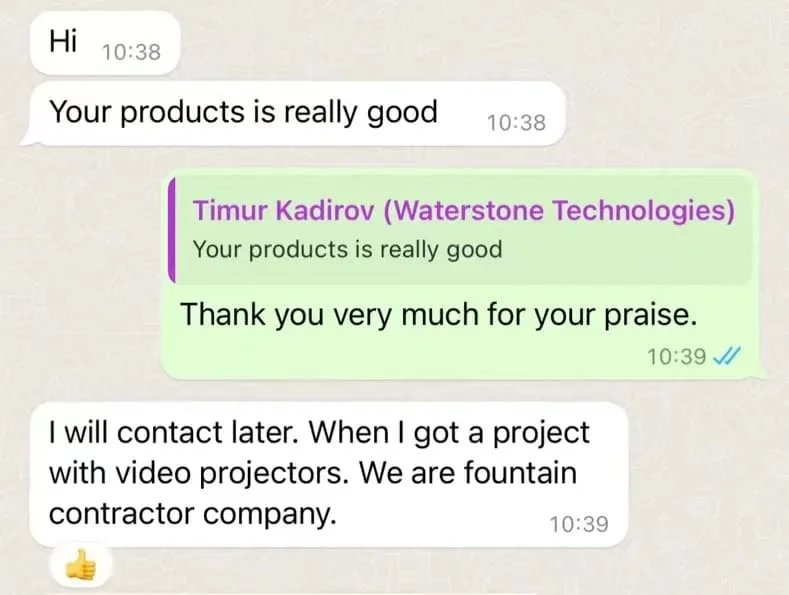

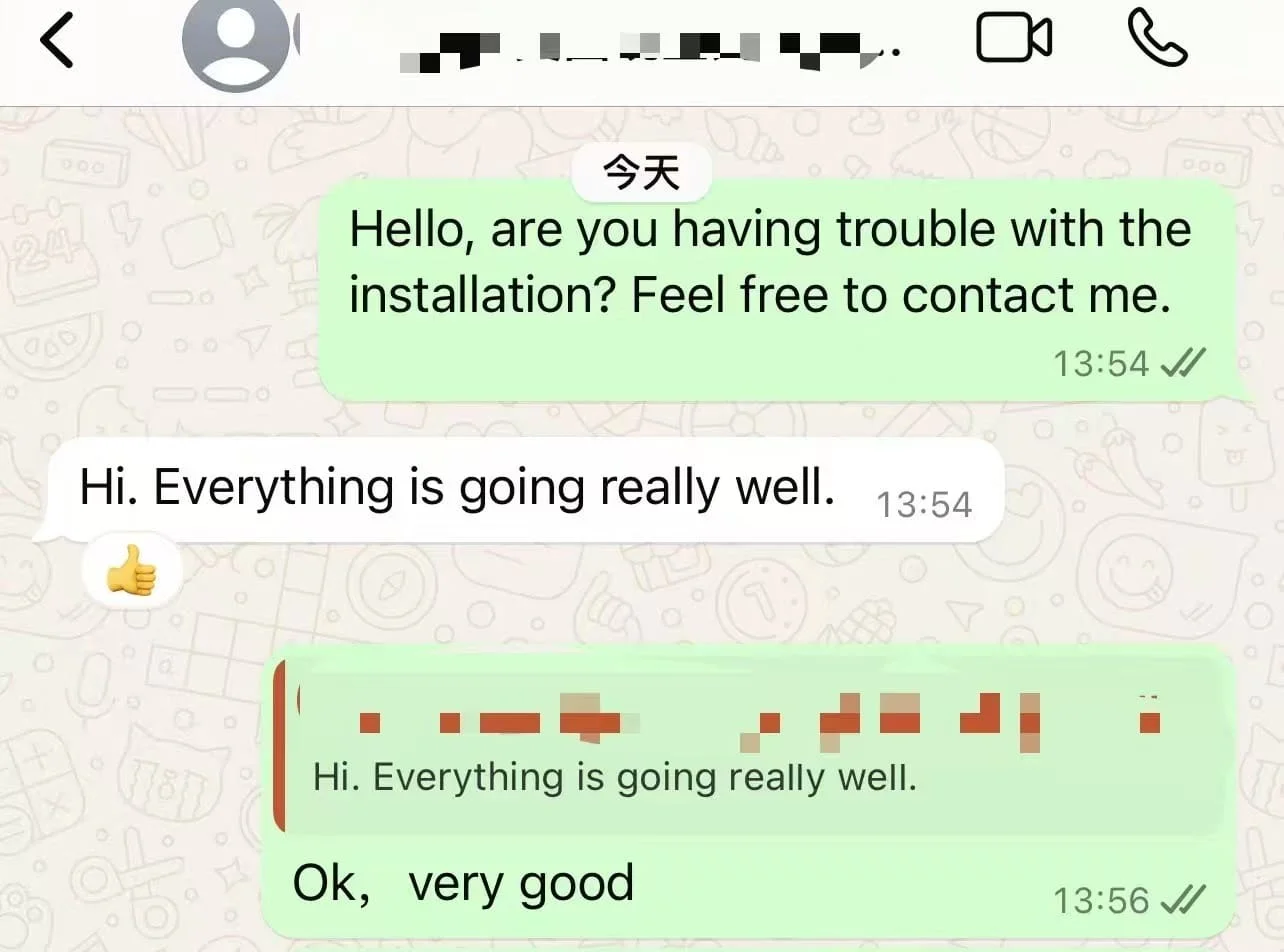

Global Client Chat Screenshots
Buyers can review our real customer chat screenshots, feedback on factory videos, exhibition materials, and project case photos before sending project specifications. Certification documents are available on request.
We possess self-development, design, production, and sales capabilities for outdoor network cabinets and waterproof cases for projectors. Learn more about us.
Global Industry Certifications & Standards
As the premier manufacturer of intelligent waterproof projector enclosures, ShiRui strictly adheres to international quality and safety standards. Our unyielding commitment to excellence guarantees reliable performance, intelligent climate control, and uncompromised protection in the most extreme outdoor environments.
Require detailed test reports, material specifications, or specific compliance documentation for your enterprise project?
Standard Customization Workflow
Send Specs
Projector model & site photos
Confirm Build
Material, size & cooling method
Review Drawing
Check cabinet drawing details
Quote & Order
Sample approval & mass production
