Outdoor Projector Housing For Fixed Installations
Protect your engineering projection investments with a customized outdoor projector enclosure. Designed to mitigate extreme weather, dust, and heat, this waterproof projector enclosure ensures stable long-term operation for architectural mapping, night-tour projects, and outdoor advertising.
What is an Outdoor Projector Housing?
Unlike a simple rain cover or basic metal box, an outdoor projector housing is a comprehensive climate-controlled cabinet. It is specifically engineered to protect high-lumen engineering projectors in permanent outdoor installations.
The housing can be constructed from 201 stainless steel, 304 stainless steel, or galvanized plate, depending on the corrosion resistance required by the project site. To maintain stable internal operating conditions, cooling can be configured as a fresh air system, a fresh air system with air conditioning, or an internal circulation air conditioning setup.
- Suitable for building facades, scenic night tours, and plaza projections.
- Customized internal brackets to match specific projector models and lens positions.
Real Engineering Problems We Solve
Standard indoor projectors fail quickly outdoors. Our outdoor projector box designs address specific site constraints to ensure project success.
Extreme Weather & Rain
Projectors exposed to heavy rain and salt spray suffer circuit damage. A waterproof projector enclosure with IP65 sealing structure prevents water ingress during storms.
Benefit: Eliminates weather-related downtime.
Dust & Insect Intrusion
Dust and mosquitoes entering the machine degrade lens brightness and block cooling fans. Built-in F6 medium-efficiency air filters stop particles before they enter.
Benefit: Maintains projection brightness and reduces cleaning frequency.
Heat Buildup in Long Runs
High-lumen projectors generate massive heat. If a housing only seals without proper thermal management, the projector overheats. Air-conditioned or fan-cooled setups resolve this.
Benefit: Prevents thermal shutdowns during evening shows.
Condensation & Lens Fog
Temperature drops at night cause internal condensation, fogging the projection window. Built-in heating and internal blowing devices automatically dehumidify.
Benefit: Ensures clear image output in high-humidity environments.
Theft & Vandalism Risk
Expensive equipment left in public squares requires physical security. Custom sheet metal enclosures feature lockable maintenance doors and robust mounting brackets.
Benefit: Secures high-value assets in unattended locations.
Site Installation Limits
Poles, walls, and narrow spaces restrict standard box fitment. Custom outdoor projector housing design ensures cable entries and mounting holes are pre-aligned with site drawings.
Benefit: Speeds up field installation without modifying the cabinet on-site.
Outdoor projector housing Configurations
From standard IP65 projector housing to fully customized internal-circulation units, we match the structure to your projector model and site environment.

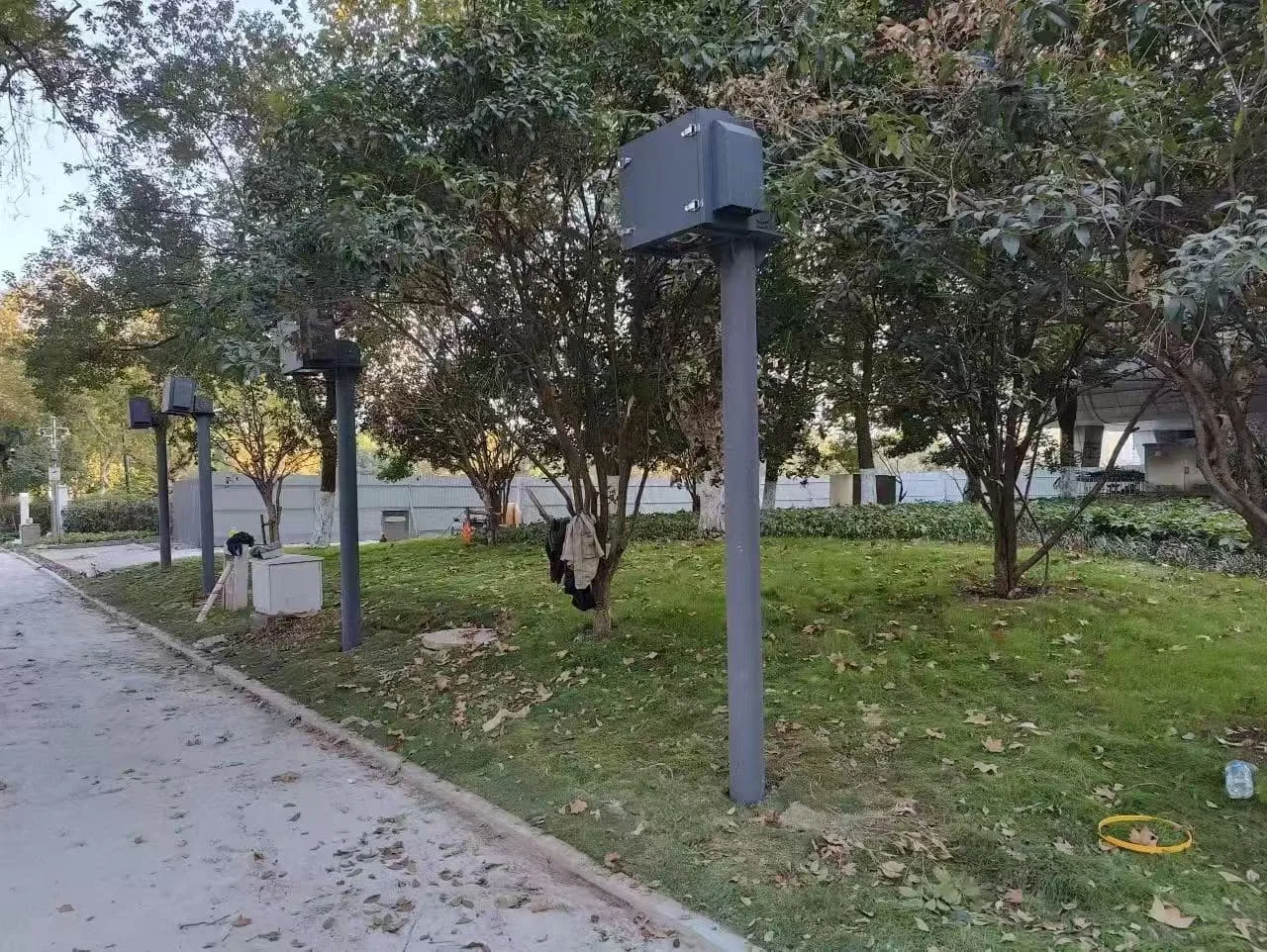

Air-Cooled Housing
Uses a fresh air system. Ideal for parks and standard climates where ambient temperature is moderate.
Benefit: Cost-effective cooling with built-in filtration.

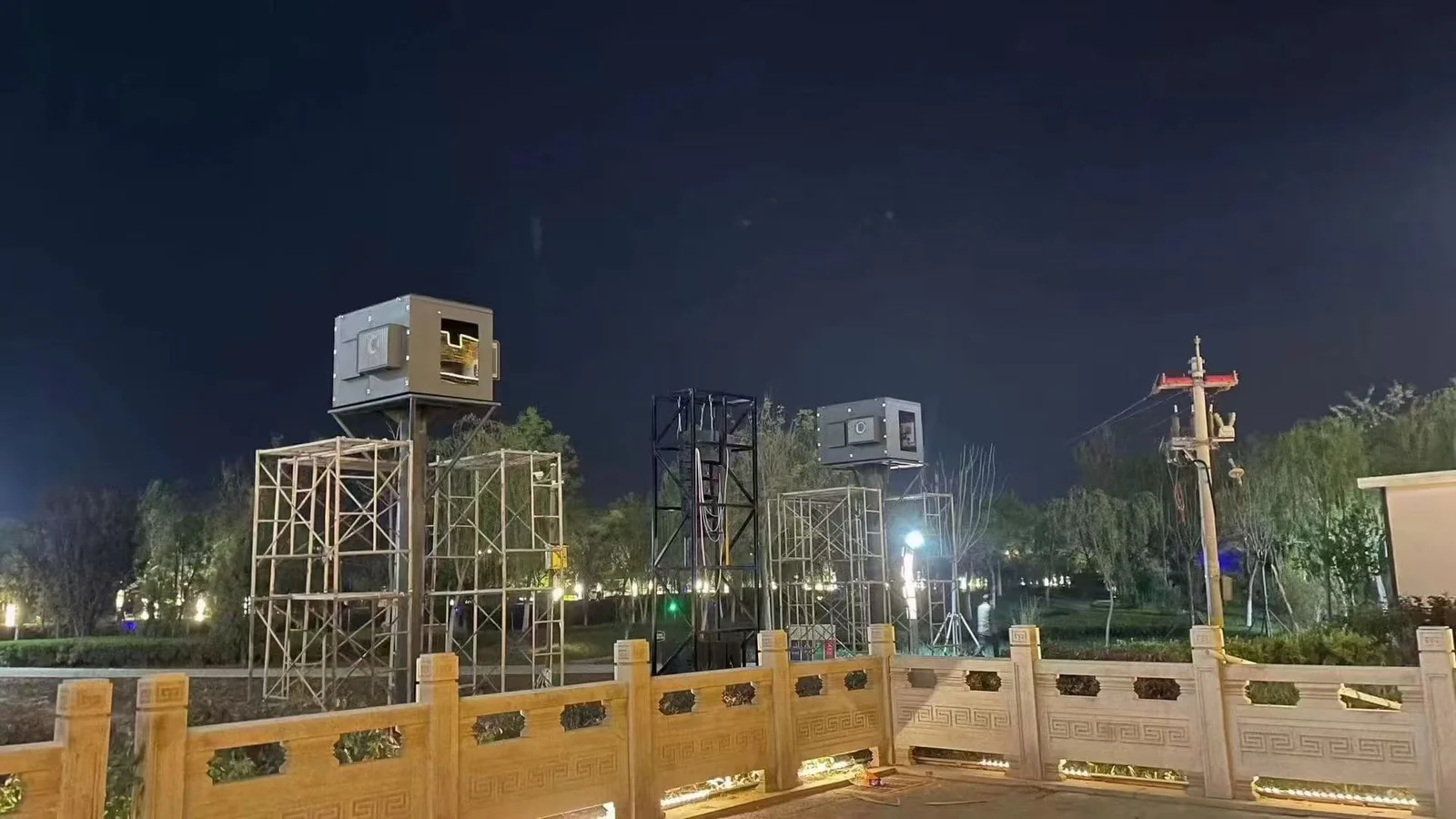

Air-Cooled + AC
Combines fresh air with active air conditioning compressor. Suitable for high-lumen projectors in hot regions.
Benefit: Handles heavy heat loads during peak summer.
Internal-Circulation AC
Fully sealed structure with no external fan outlet. Designed for extremely dusty sites, subways, or corrosive coastal areas.
Benefit: Maximum isolation from external contaminants.
Custom Non-Standard
Tailored dimensions, specific cable entries, and unique bracket designs discussed via cabinet drawings.
Benefit: Perfect fit for complex architectural installations.
Other configurations include: Remote-Control versions, Anti-Condensation specific housings, and High-Lumen specific designs. Explore Outdoor Network Cabinets #
Engineered for Reliability
Every component of the projector protective housing is selected to ensure field serviceability and equipment safety.
Optical Ultra-White Glass
Installed at the projection port, offering 95% light transmittance to ensure zero brightness loss and distortion-free mapping.
Robust Material Options
Choose from 201 stainless steel, 304 stainless steel, or galvanized plate based on budget and environmental salinity.
Internal Configuration
Reserved 10A or 16A multifunctional sockets, built-in F6 medium-efficiency air filters, and custom internal brackets for secure projector mounting.
Maintenance Accessibility
Strategically placed maintenance doors and pre-planned cable entries allow technicians to service the unit without dismantling the entire setup. See Industrial Power Supply Board #
Advanced Climate Control Logic
Different outdoor environments demand specific thermal management. Our housings utilize precise sensor-driven logic to maintain optimal operating conditions.

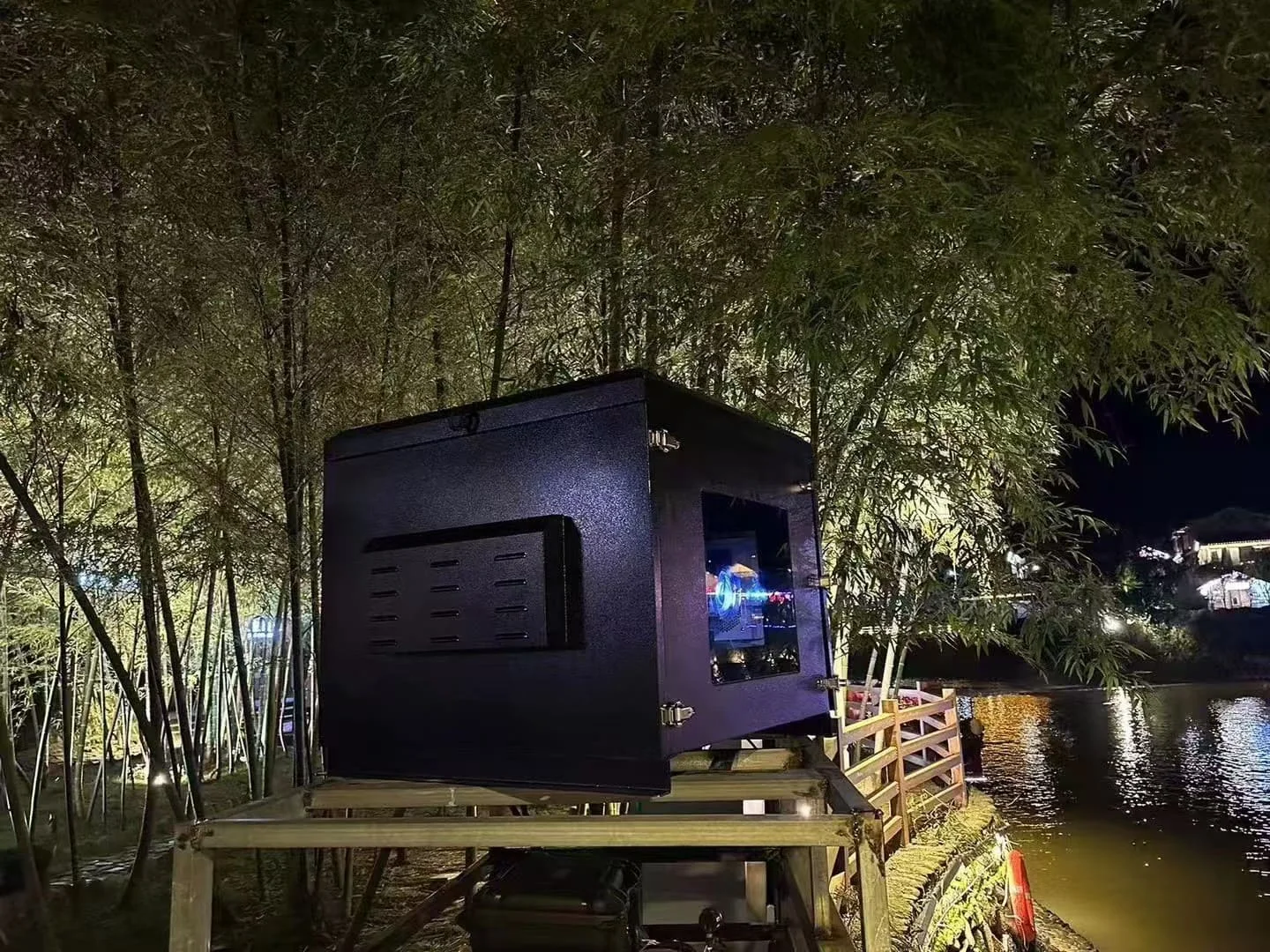

Heating & Anti-Condensation
Essential for high-humidity projects or areas with large day-night temperature swings. An internal blowing device reduces frost and fog on the projection window.
- Heating starts when temperature ≤ 5°C and humidity ≥ 85%.
- Heating stops when temperature reaches 10°C and humidity ≤ 75%.
Fan Cooling & AC Management
Crucial for long-hour projection projects in desert or summer conditions. The built-in temperature control probe constantly monitors internal heat.
- Fan cooling starts when box temperature is higher than the preset value (e.g., 35°C) by ≥ 2°C.
- Fan stops working when temperature drops below the preset value by ≤ 2°C.

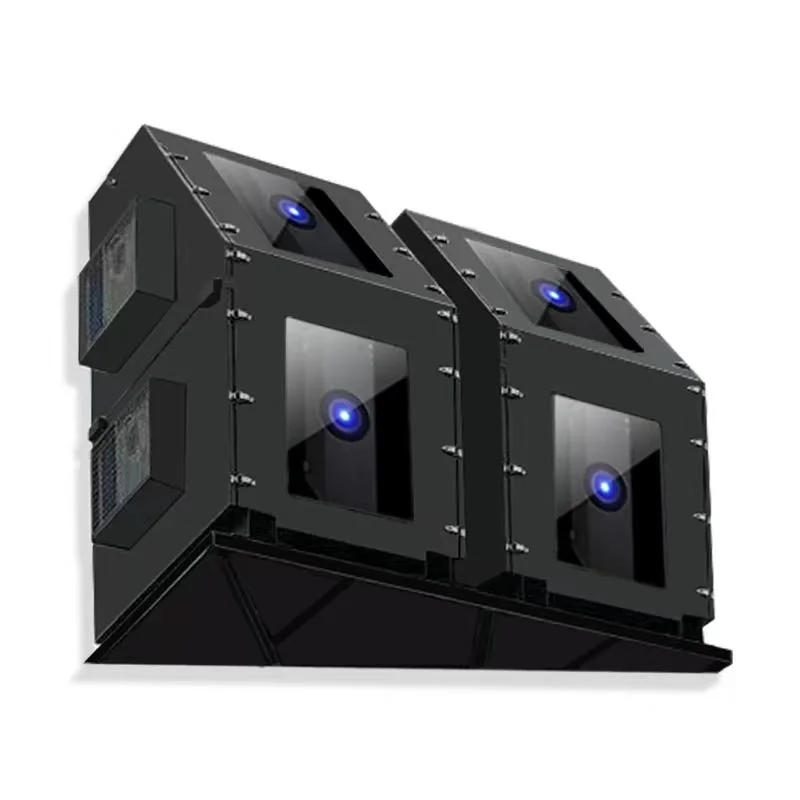

Smart Remote Monitoring Options
Remote monitoring helps project teams check housing status and respond earlier when site conditions change, reducing unnecessary physical maintenance trips.
Why Engineering Projects Need Customization
Every installation site is unique. Customization starts from the projector model, site photos, installation method, and cabinet drawing to ensure a perfect fit.
1. Hardware Matching
The projector model does not always match standard housings. We customize housing dimensions, lens position alignment with the optical window, and internal airflow direction to prevent overheating.
2. Site Constraints
Cable entry must match site wiring direction. Whether it's pole-mounted installation requiring specific brackets, wall-mounted, or floor-standing, mounting holes are reviewed before production.
3. Production Workflow
We support sample approval before the main project order. Our sheet metal processing services guarantee mass production stability for large-scale rollouts.
Proven in Diverse Field Environments

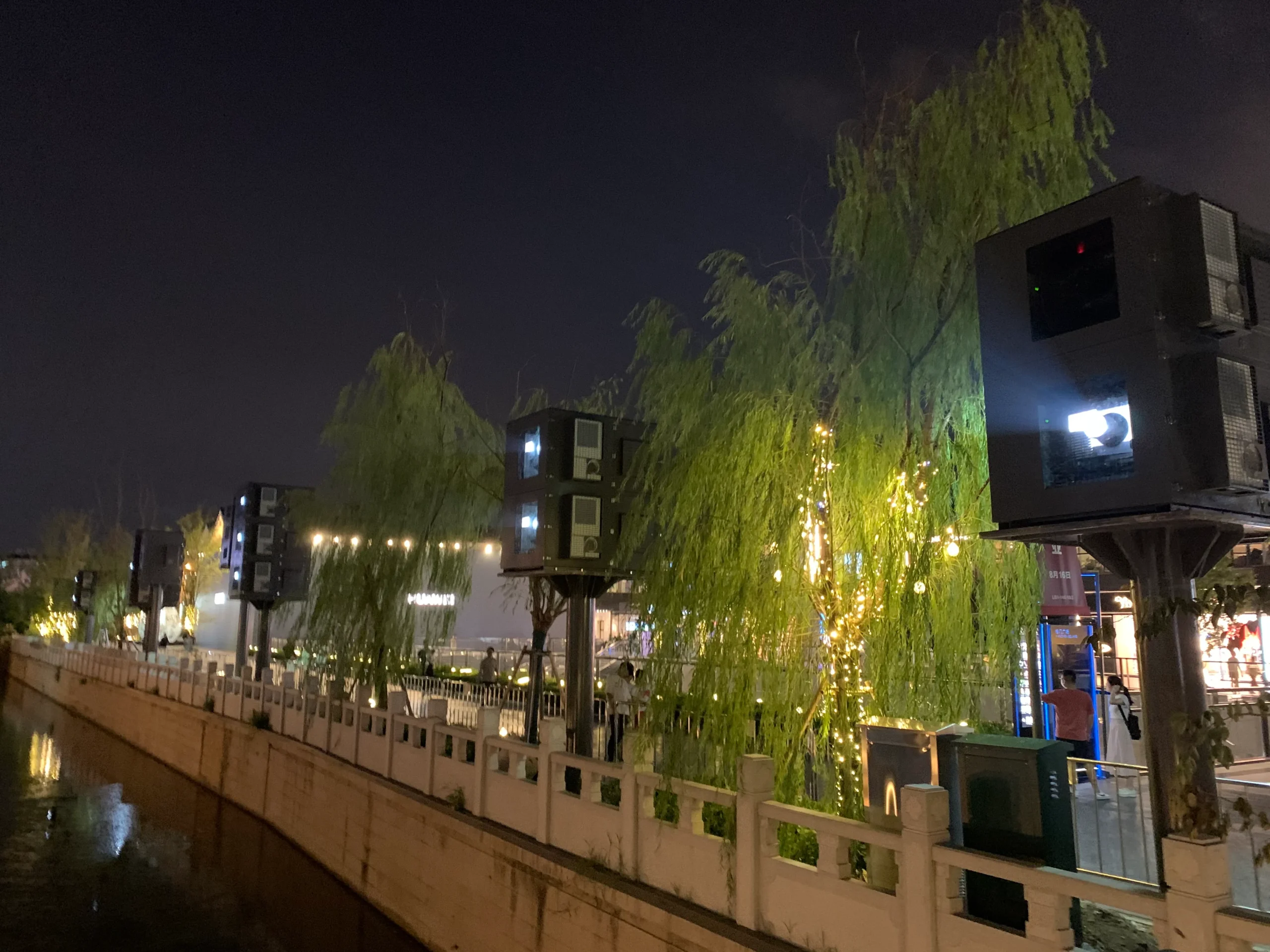

Building Projection
Wall-mounted installations where space is tight. Custom cable entries and maintenance doors are crucial for facade aesthetics.

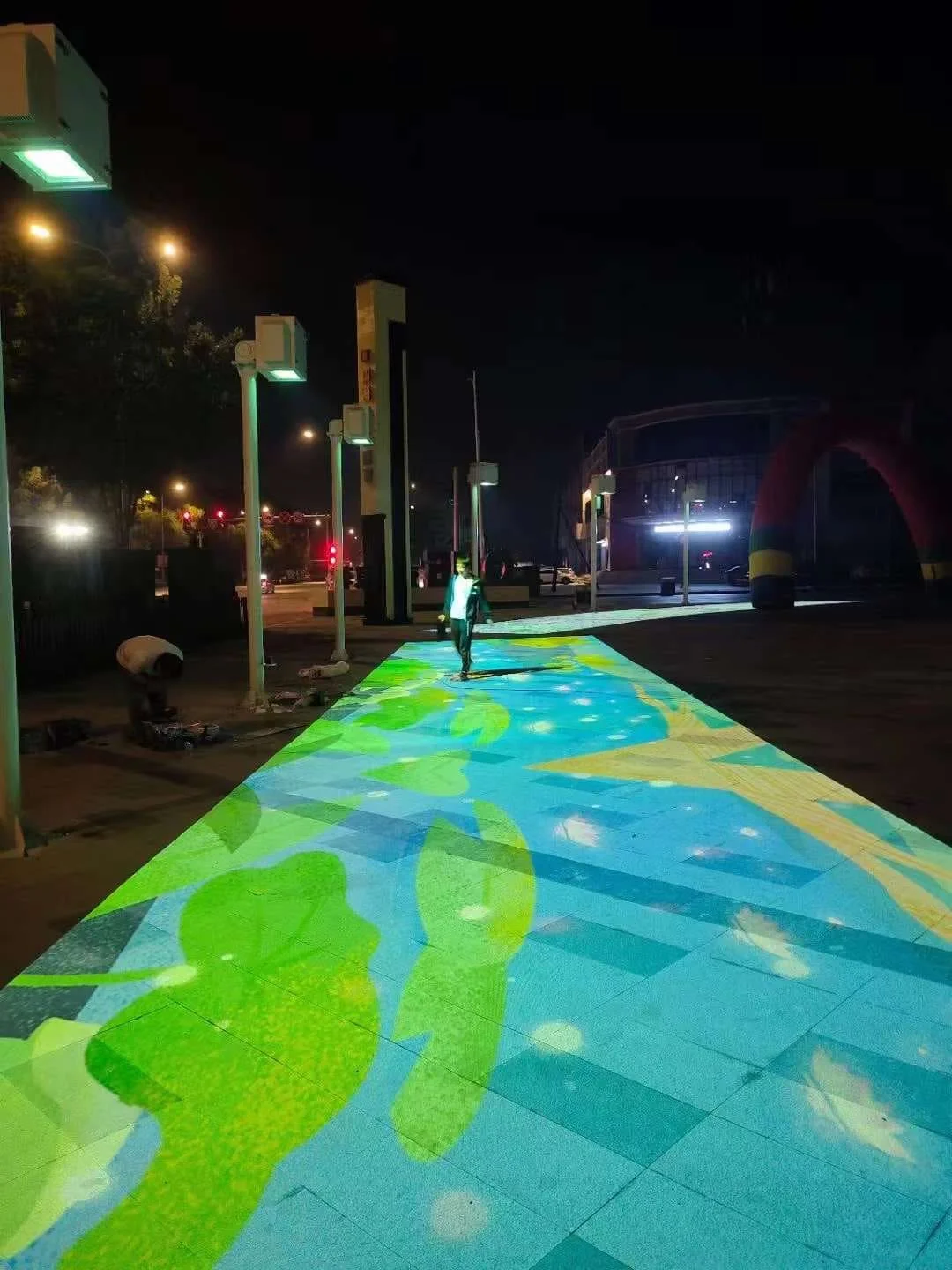

Scenic Night-Tour Projects
High humidity and insect prevalence. Requires robust anti-condensation heating and F6 filters to maintain lens clarity.
Subway & Dusty Sites
Extreme dust levels require internal circulation air conditioning with no external air exchange to protect optics.
Coastal Outdoor Projects
Salt spray corrosion risk. Solved by using 304 stainless steel material and IP65 waterproof sealing structures.
Simple Cover vs. Engineered Housing
| Feature | Basic Projector Cover / Box | Our Outdoor Projector Housing |
|---|---|---|
| Sealing & Waterproofing | Basic rain shielding, prone to wind-driven rain ingress. | IP65 sealed structure preventing water and dust entry. |
| Cooling System | Passive vents or simple exhaust fans. | Sensor-driven fresh air or internal circulation AC. |
| Condensation Control | None. Lens fogs up at night. | Automated heating and internal blowing device. |
| Filtration | Often none, allowing insects inside. | F6 medium-efficiency air filter included. |
| Installation Fit | One size fits all, requires field modification. | Custom mounting holes and cable entry per project drawing. |
Manufacturing Capability & Trust
Buyers can review our factory videos, exhibition materials, and project case photos before sending project specifications to ensure capability alignment.
Certifications & Experience
Certification documents are available on request. We have deep experience in self-developed outdoor network cabinets and waterproof cases for projectors.
Sheet Metal Processing
Review our factory video to see our sheet metal processing steps and housing assembly details, confirming our non-standard customization capacity.
Real Project Cases
We provide real product photos and engineering project case studies to help integrators visualize the final installation. Learn more about us
How to Start Your Custom Order
Send projector model
Share site photos
Confirm material & size
Choose cooling method
Review cabinet drawing
Sample approval
Request a quote
Frequently Asked Questions
What is the difference between outdoor projector housing and outdoor projector enclosure?
Can the housing be customized for different projector models?
What cooling options are available?
What is internal circulation air conditioning?
What materials are available?
What information is needed for a quote?
Discuss Your Project Requirements
To ensure we design the right outdoor projector cabinet for your site, please provide your projector model, site photos, expected cooling method, and housing material requirement.
